Description:

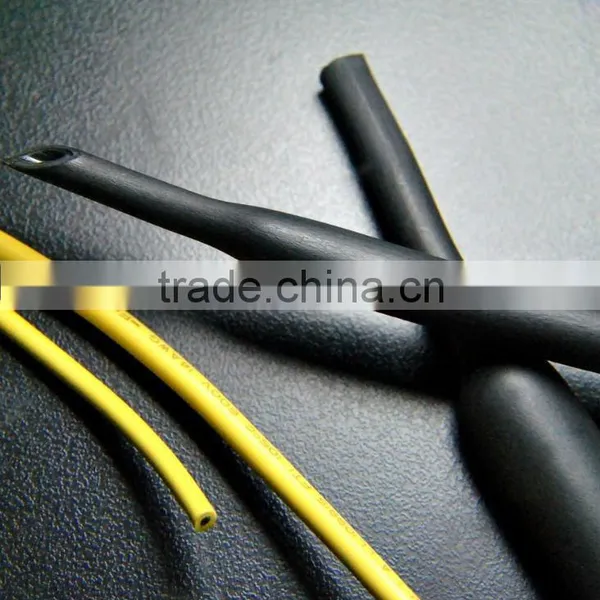

SBG5400 dual wall adhesive heat-shrinkable tube is made of the high quality polymer (out layer) with hot melt adhesive ( inner layer ). When it expose to heat source, the inner layer begin to melt and flow. When it cools down, inner layer forms an adhesion layer between the tubing and the component or wire. Provides a water-tight seal and protection for the connectors or wire.
Application:
This kind of the heat shrink tube offers insulation and water-proof protection for a wide assortment of automotive components including wire splices, wire and cable bundles, and wire harness breakout.
Technical data:
Material: Polyethylene, hot melting adhesive
Shrink ratio: 3:1 or 4:1
Working temperature: -45℃~+125℃
Longitudinal shrinkage:≤8%
Color: Black
Tool: Heat gun, oven
Approval: CSA, RoHS, UL, Halogen Free
SBG5400 3:1 Data Sheet | |||||
Part No. |
As supplied (O) |
After Shrunk |
Packing (L) |
||
I.D. |
Wall thickness (T) |
Adhesive thickness |
|||
3.2 |
3.2 |
1.0 |
1.0 |
0.4 |
200 m/roll |
4.8 |
4.8 |
1.6 |
1.1 |
0.4 |
100 m/roll |
6.4 |
6.4 |
2.0 |
1.2 |
0.5 |
100 m/roll |
7.9 |
7.9 |
2.7 |
1.4 |
0.5 |
100 m/roll |
9.5 |
9.5 |
3.2 |
1.4 |
0.5 |
50 m/roll |
12.7 |
12.7 |
4.2 |
1.7 |
0.5 |
1.22 m/pcs |
15.0 |
15.0 |
5.0 |
1.8 |
0.6 |
|
19.1 |
19.1 |
6.3 |
2.0 |
0.6 |
|
25.4 |
25.4 |
8.5 |
2.1 |
0.6 |
|
30 |
30 |
10.2 |
2.2 |
0.6 |
|
39 |
39 |
13.5 |
2.4 |
0.6 |
|
50 |
50 |
17 |
2.7 |
0.7 |
|
64 |
64 |
21 |
3 |
0.7 |
|
74 |
75 |
25 |
3.2 |
1.0 |
|
90 |
90 |
30 |
3.3 |
1.0 |
|
100 |
100 |
34 |
3.5 |
1.2 |
|
125 |
125 |
42 |
3.5 |
1.2 |
|
Unit: mm
SBG5400 4:1 Data Sheet | |||||
Part No. |
As supplied (O) |
After recovery |
Packing (L) |
||
I.D. |
Wall thickness |
Adhesive thickness |
|||
4 |
4 |
1 |
1 |
0.4 |
200 m/roll |
6 |
6 |
1.5 |
1.1 |
0.4 |
100 m/roll |
8 |
8 |
2 |
1.5 |
0.5 |
50 m/roll |
12 |
12 |
3 |
1.7 |
0.5 |
1.22 m/pcs |
16 |
16 |
4 |
2.0 |
0.5 |
|
20 |
20 |
5 |
2.3 |
0.6 |
|
24 |
24 |
6 |
2.5 |
0.6 |
|
32 |
32 |
8 |
2.8 |
0.7 |
|
52 |
52 |
13 |
3 |
0.7 |
|
Unit:mm
