Help CenterAutomotive Sleeve-EMI Shielding Expandable Sleeving
Related Products
-
Automotive Sleeving-Heat Shrinkable Textile SleeveUS$ 0.4 - 8.4MOQ: 3000 Meters -
Automotive Sleeve-Self-closing WrapUS$ 0.3 - 7.6MOQ: 3000 Meters
-
Flexible Conduit-PE,PA,PP MaterialUS$ 0.5 - 5.5MOQ: 1000 Meters
-
Automotive Products-Waved Self Closing WrapUS$ 0.4 - 8.4MOQ: 3000 Meters
-
Automotive Products-Aluminum Foil Corrugated ConduitUS$ 0.2 - 6.7MOQ: 1000 Meters

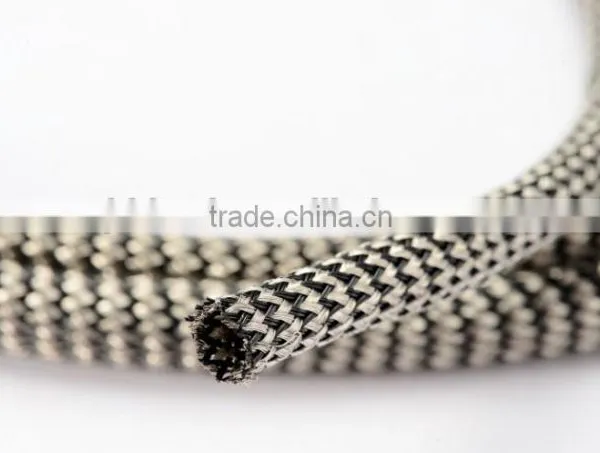

FR1140 EMI Shielding expandable sleeving is made of tinned copper wire and polyester monofilament mix braiding, It’s specially designed for mechanical wear resistance and anti-electromagnetic for the automotive wire harness. The important feature is that it’s more suitable for operating in the narrow space because of the material’s high flexibility, meanwhile it is much lighter, softer and cost effective than the normal tinned copper sleeving.
Application:
It is widely used in automotive wire harness field, it can provide wear resistance, EMI shielding and anti signal interference for the harnesses.
Technical data:
Material: Polyester, tinned copper
Working temperature: -50℃~+150℃
Melting point: 240°C±10℃
Flammability: FMVSS302
Color: Black mix silver
Cutting tool: Scissors
Approval: ROHS
Dimensions:
Part No. |
Nominal size (W) |
Expandable Range |
Packing (L) |
||
Inch |
mm |
Min.(I) |
Max.(O) |
||
FR1140-006 |
1/4'' |
6 |
3 |
8 |
200 m |
FR1140-008 |
5/16'' |
8 |
5 |
13 |
200 m |
FR1140-010 |
3/8'' |
10 |
7 |
16 |
150 m |
FR1140-012 |
1/2'' |
12 |
8 |
20 |
150 m |
FR1140-016 |
5/8'' |
16 |
10 |
24 |
100 m |
FR1140-019 |
3/4" |
19 |
14 |
30 |
100 m |
Unit: mm
