Specifications
heat shrinkable braided sleeving consist of polyester multifilament and special modified polyolefin filamentGood price
Expandable sleeving consists of flexible, flame-retardant woven polyester that met
RoHS stantard. The braid is able to expand up to 3 times its normal size and isused for bunding and protectiong of electrical cables in power-supply machineand automobile sectors. Material: polyester (PET) monofil free of hologen Temperature range : -30C ---- 125C Flammability : self-extinguishing according to UL94-v2 Colour : black,grey,white,red,green,blue,yellow,purple,pink,orange,nacarat Melting point 225C~235C Does not trap heat or humidity Rot-free Self-fitting over many shapes and sizes Self-extinguishing when used to encase typical non-flammable wires or cables Fray resistant Approval : CSA,UL,SGS,RoHS
Description:

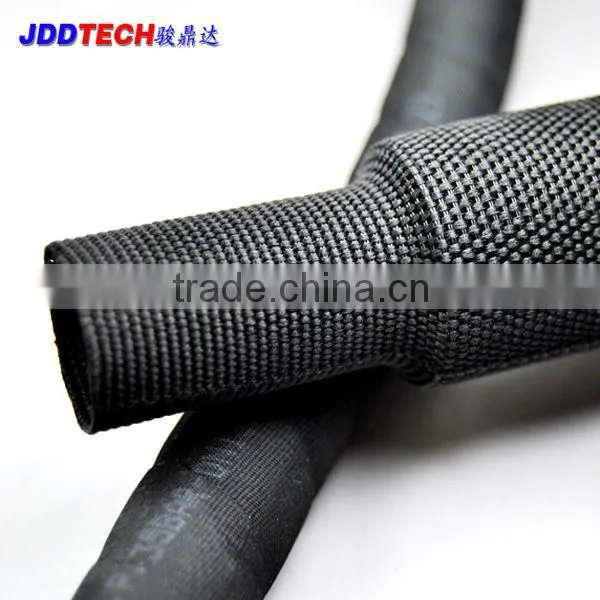

JDD-HSS heat shrinkable braided sleeving consist of polyester multifilament and special modified polyolefin filament, it will shrink when expose to heat source, this unique woven construction makes it extremely flexible, easy to install on the hoses with irregular shapes. It is suitable used in rough environments, providing excellent abrasion resistance and noise reduction.
Application:
It is widely used to protect the rubber hoses, plastic pipes, wire harnesses from damage, and also resistance the noise and rattle suppression make it suitable in automotive and other industrial fields.
| Technical data | |
| Material | Polyolefin+Polyester |
| Operating range | -40°C-+125°C |
| shrinkaeg temperature |
110°C-185°C |
| Standard color | Black |
| Shrinking ratio | 2:01 |
| Certificate | ROHS,Hanlogen free |
| Tool | Heat gun,Oven |
| Datasheet | |||
| Part.No | As suppliedD | After recoveredd | PackingL |
| HSS-010 | 10.0 | 5.0 | 400m/spool |
| HSS-012 | 12.0 | 6.0 | 350m/spool |
| HSS-020 | 20.0 | 10.0 | 200m/spool |
| HSS-025 | 25.0 | 12.5 | 150m/spool |
| HSS-030 | 30.0 | 15.0 | 100m/spool |
| HSS-034 | 34.0 | 17.0 | 100m/spool |
| HSS-040 | 40.0 | 20.0 | 100m/spool |
| HSS-050 | 50.0 | 25.0 | 100m/spool |
| HSS-060 | 60.0 | 30.0 | 100m/spool |
| HSS-070 | 70.0 | 35.0 | 50m/spool |
| HSS-080 | 80.0 | 40.0 | 50m/spool |
| Unit:mm | |||
