Specifications
1.Novel design and Strong stability2.Energy conservation and environmental protection
3.Beautiful appearance
4.Low cost
Functions and features for sentry box:
1.Short construction period: steel and panel components can be easily and quickly assembled
and disassembled.
2.These materials are water proof, fire proof, wind proof, soud-insulating and heat-insulating.
3.The knockdown package can save much space in the transportation, this means much cost
are saved for our customers.
4.Create a new environment-friendly concept, meet the requirements of environment protection
in the world.
5.Widely use around the commercial residential building, police station, building construction,
park, traffic center etc..
Product features
1.PU sandwich panel or EPS sandwich panel for wall and roof.
2.Steel frame with sandwich panel for door.
3.PVC sliding for window.
The advantages of the products
1.Bosen sentry box can be designed as per customers requirements.
2.It can be moved on any condition, and very easy to install, the whole house can be moved .
3.The materials can be recycled and no rabbish to pollute the environment.
4. All the light steel structures have antisepsis-spraying treatment. The normal using age is above 15 years.

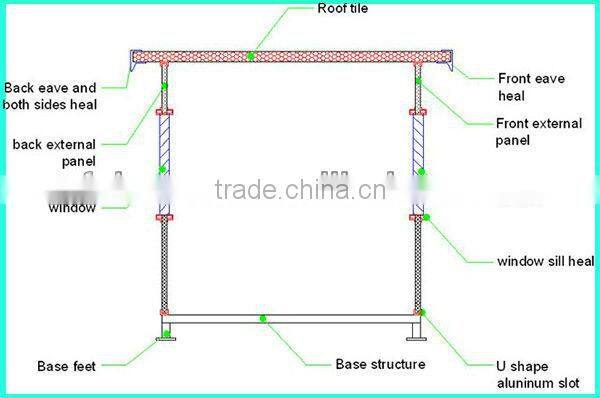

Drawings:

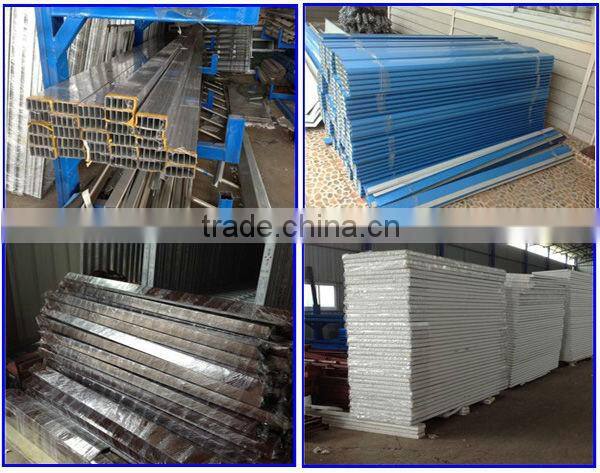

Main Materials:
Foshan Nanhai Bosen Building Material Co.,Ltd. | ||||
Main Materials of Bosen Sentry Box | ||||
No |
Component |
Specification |
Material thickness |
Remark |
1 |
Chassis |
8#C steel+50×30 flat pipe |
1.6mm+0.8mm |
Blur paint |
Floor board |
Plywood |
15mm |
Wood grain |
|
Floor decorate |
PVC floor glue |
1.2mm |
Many designs for option,normal is wood grain |
|
2 |
Column |
Arc aluminum alloy column |
1.0mm |
Gray paint |
3 |
Roof straight girder |
50#U aluminum slot |
1.0mm |
Gray paint |
4 |
Ring beam |
50#U aluminum slot |
1.0mm |
Gray paint |
5 |
External wall panel |
50mm color steel battenboard |
color steel thickness 0.326mm |
sandwich EPS foam,aluminum hemming |
6 |
Door frame |
50#U aluminum slot |
1.0mm |
Blur paint |
Door |
50mm color steel battenboard |
color steel thickness 0.326mm |
sandwich EPS foam |
|
Door edge |
50#U aluminum slot |
1.0mm |
|
|
Door lock |
Ball lock |
|
|
|
7 |
Roof tile |
50mm 1050 hard sloping tile |
color steel thickness 0.326mm |
Blur paint |
8 |
Window |
PVC sliding window |
width1150×height1000mm |
|
9 |
Paint |
Green brand paint |
|
|
Characteristics:
1. Environment protective, no garbage cause
2. Doors, windows and interior partitions can be flexibly fixed
3. Beautiful appearance, different colors for the wall and roof.
4. Cost saving and transportation convenient
5. Anti-rust and normally more than 15 years using life
6. Safe and stable, can stand 8 grade earthquake.

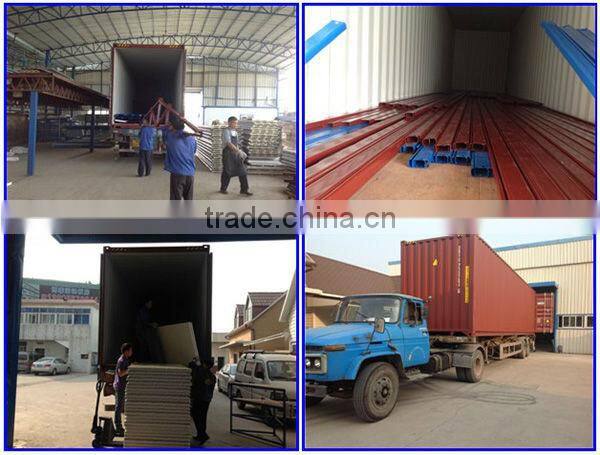

Packing and shipping:
Our company and projects:
Contact information:
