Help CenterRecycle Durable and Security Prefab Kit House
Related Products
-
Low Cost Building Supplier Low Cost Modular Prefabricated House Direct Selling Mobile Toliet BoxUS$ 800 - 2,000MOQ: 1 Set -
2013 Lowcost Portable Easy Assemble Military Container Sentry BoxUS$ 800 - 2,000MOQ: 1 Set
-
China Mobile House Steel Structure Office Container PriceUS$ 400 - 4,500MOQ: 1 Set
-
New Design Prefabricated Modular Sentry Box for Guard Security CabinUS$ 400 - 4,500MOQ: 1 Set
-
Mobile Security House and Standard Guard House Prefabricated Steel Structure WarehouseUS$ 400 - 600MOQ: 1 Set
Specifications
Recycle durable and security prefab kit house1.Reliable structure
2.Good appearance
3.CE,SGS,FORM E
4.Cost efficiency
Recycle durable and security prefab kit house
Technology of durable and security prefab kit house
1.Wind resistance: Grade 12(wind speed≤111.5km/h)
2.Earthquake resistance: Grade 7
3.Live load capacity of roofing: 0.5kn/m2
4.External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
5.Second floor load capacity: 150 kg/m2
6.Live load of corridor is 2.0kn/ m2
7.We can design and produce the house according to customer's request
| Foshan Nanhai BoSen Building Materials Co., Ltd. | |||||
| Number | Component | Material | Specifications | ||
| Main Steel-structure | |||||
| 1 | Stand column | Square steel tube | 80*80mm | ||
| 2 | Herringbone beam | Square steel tube | 80*80mm | ||
| 3 | Ring beam | #8 C-shaped steel | 120*50*20mm | ||
| 4 | Roof purlin | #8 C-shaped steel | 120*50*20mm | ||
| B,Wall | |||||
| 1 | External wall panel | EPS(polystyrene) /Rock wool sandwich panel / Cement-polystyrene Panel | Thickness: 50mm/75mm/100mm | ||
| Decorative wall panel | PVC panel / Wood plastic composite panel | ||||
| 2 | Internal wall panel | EPS(polystyrene) /Rock wool sandwich panel / Cement-polystyrene Panel | Thickness: 50mm/75mm/100mm | ||
| C,Roof | |||||
| 1 | Roof panel | EPS(polystyrene) /Rock wool corrugated steel sheets | Thickness: 50mm/75mm/100mm | ||
| 2 | Roof tile | Asphalt shingle | |||
| D,Ceiling & Floor board | |||||
| 1 | Ceiling board | Gypsum board / Aluminum board | 500mm * 500mm | ||
| 2 | Floor board | Ceramic tile | 500mm * 500mm | ||
| E,Window & Door | |||||
| 1 | Window 1 | Aluminum alloy sliding window | For Dimension and Quantity, please check the drawing | ||
| Window 2 | Aluminum alloy blind window (for Bathroom) | For Dimension and Quantity, please check the drawing | |||
| 2 | Door | Steel door / Wooden door | For Dimension and Quantity, please check the drawing | ||
| F ,Accessories | |||||
| 1 | Accessories : | setscrew, pop rivet, self-tapping screw, screw,silicon sealant, canopy, etc. | |||
| 2 | Optional spare parts | exhaust fan, electricity system and water pipes, toilet, sink, shower, kitchen cabinet, etc. | |||
1.Easy assemble and easy disassemble
2. Environment-friendly
3.Size and layout optional
4. Recyclable

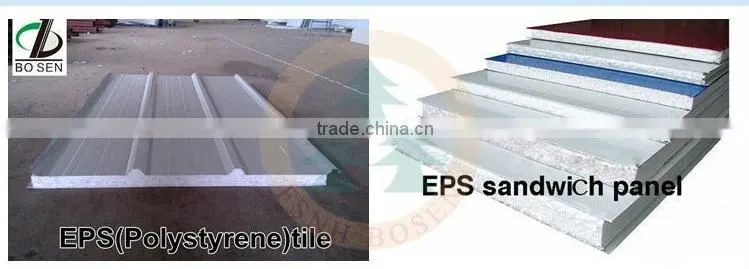

Main material of durable and security prefab kit house
Wall:
Floor:
Ceiling:
Exterior wall panel:
Optional fittings:
Structure of comfortabe prefab houses:

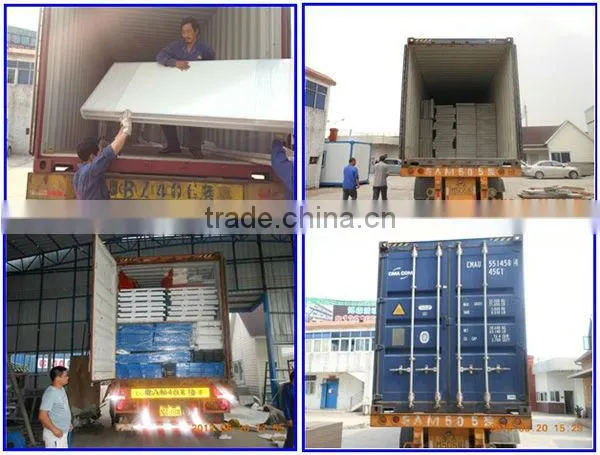

Packing and shipping of comfortabe prefab houses:
comfortabe prefab houses certificates:
Our factory:
Clients visiting our factory:
Our services:
1.Promp reply within 24 hours
2.Offer house design drawing
3. offer the best suggertions
4.Try our best to meet your requirements
If you have layout drawing, please send to us. If not, please kindly tell your idea.
If you have any question, please don't hesitate to ask us.
