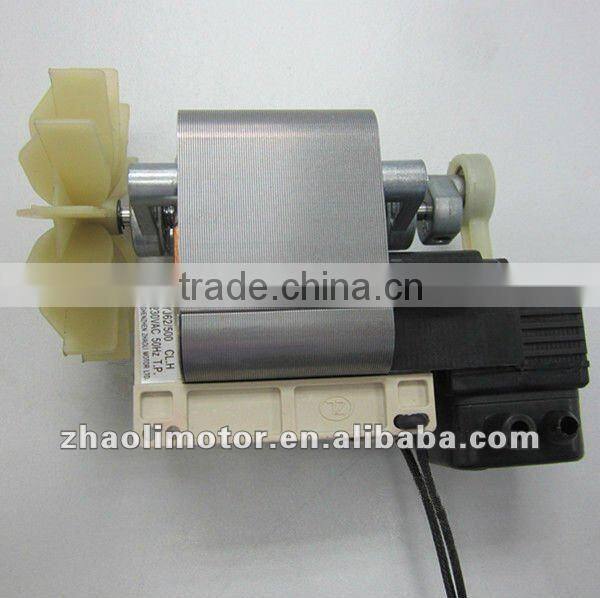

Nebulizer motor Shaded Pole Motor YJ62-45: sp motor, 230V, 50hz, CL.H

Specifications

Rated Voltage:100-240VAC
Laminations: 12--40mm

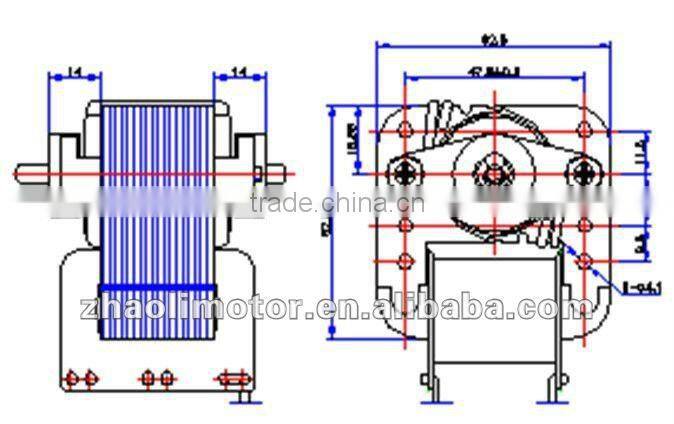

Size: 62.5*62.5mm
Life: 5000--10000 Hours

    Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.

Product General Performance Parameters:
 Voltage----------------------100-240VAC
 Frequency-------------------50/60HZ
 Power------------------------5-100W
 Insulation Class----------- -A/E/B/F/H
 Noise--------------------------less than 43Db(A)
 Life----------------------------5000-10000Hours
 Core Thickness---------------8-40mm
 Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35


 Series:   YJ62-45













Other assembly:







Characteristics:
     Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.

Application:

      Ventilator, Nebulizer, Vacuum pump, Air pump, Oven
