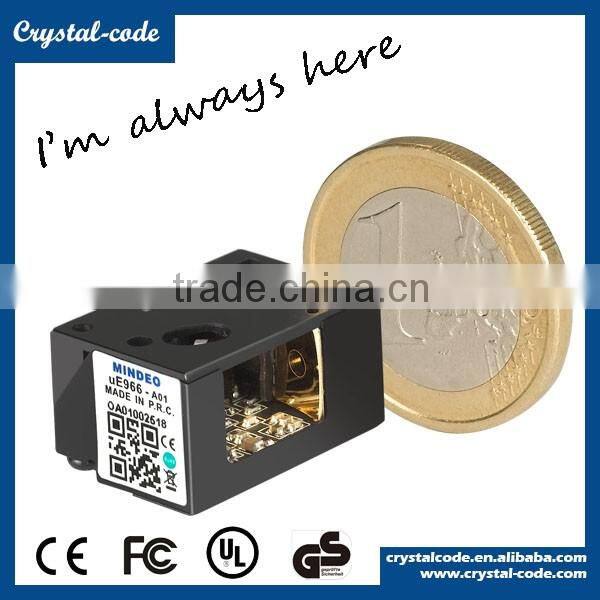

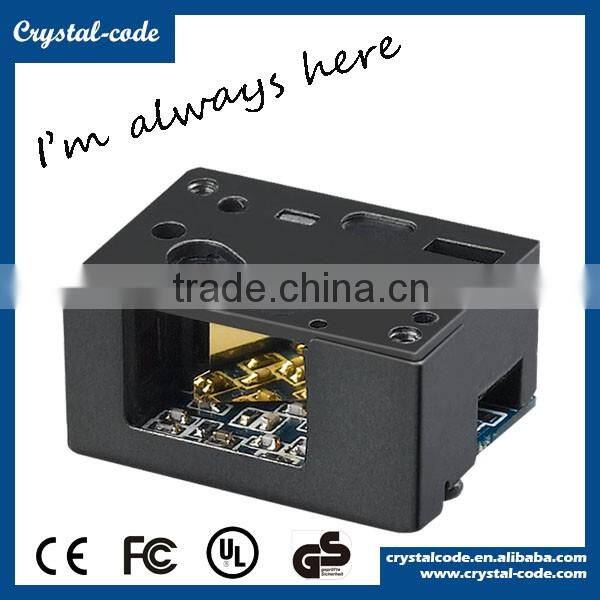

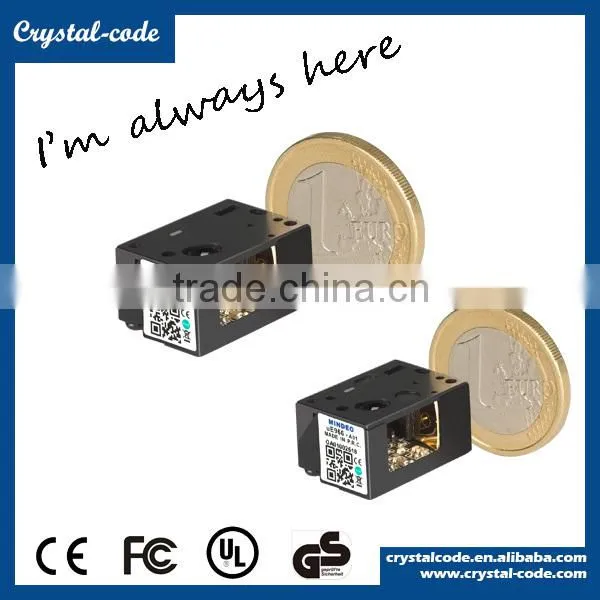

Help CenterUE966 Mini Laser Barcode Scanner Scan Engine With Super Sanning and Durability
Related Products
-
UE966 Mini Laser Scan Engine & Laser Barcode Reader Module Quality ChoiceUS$ 15 - 152MOQ: 1 Unit -
Hot Sale Mindeo ES4200 Embedded Scanner 1D Laser Barcode Scanner Reading ModuleUS$ 15 - 152MOQ: 1 Unit
-
ES4600 2D Embedded Image Mini Micro USB Barcode ScannerUS$ 135 - 269MOQ: 1 Unit
-
New Products MD2250+ Handheld Laser Wireless Portable Barcode ScannerUS$ 67 - 135MOQ: 1 Unit
-
MD2230+ Handheld Laser Barcode Scanner With High PerformanceUS$ 96 - 193MOQ: 1 Unit
Features:
-Compatible with the physical interface and parameter settings of other brands’ models.
-High performance scan rate at 100 scans/sec
-Fully tested and certified including laser safety, durability, vibration, ESD, RF immunity and emissions, etc.
Item | Description | |
Input voltage | 3.3VDC±5% | |
Scanning current | 75mA typical/85mA maximum | |
Standby current | less than 8uA | |
Laser | 650nm laser diode | |
Scan rate | 100 ±10 scans/second | |
Scanning angle | ±50o,±65o, ±35o | |
Decode capability
| UPC-A, UPC-E, ENA-13, ENA-8, ISBN/ISSN, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5(Discrete 2 of 5), Matrix 2 of 5, Codabar(NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey, UK/Plessey, UCC/ENA 128, China Post, GS1 Data Bar(formerly RSS) variants | |
Indicator interface | To control external Beeper and LED | |
Interface supported | UART | |
Scan mode | Good-real off, Momentary, Alternate, Continuous, Host | |
Dimensions | Height×Width×Depth: 12.0mm×21.6mm×15.5mm(maximum) | |
Weight | 8.00±0.25g | |
Cable | Tapered 12-pin flex strip(12×0.5mm) | |
Temperature | Operating: -10oC to 60oC (-4oF to 140oF) Storage: -40 oC to70oC (-40oF to 158oF) | |
Humidity | 5% to 90% (non-condensing) | |
Programming method | Method I: Manual (scanning special barcode in sequence) Method II: send command via UART interface | |
Firmware upgrade | Online | |
Decoding depth & Max. resolution | (1mil=0.0254mm) 4 mil=50-83mm 5 mil=45-110mm 10 mil=10-250mm 15 mil=23-380mm 20 mil=35-490mm 30 mil=30-650mm 55 mil=75-900mm See section of “1-3 Decode zone” | |
Mechanical vibration
| ICE 60068-2-6 Un-powered engine withstands a random vibration along each of the X,Y and Z axes for a period of one hour per axis, define as follows: | |
20 to 80 Hz | Ramp up to 0.04G2/Hz at the rate of 3dB/oct | |
80 to 350 Hz | 0.04G2/Hz | |
350 to 2000 Hz | Ramp down at the rate of 3dB/oct | |
Mechanical shock | ICE 60068-2-27 Shock pulse: 0.5 ms, Maximal acceleration: 1500G, Shock direction & time: ±X-axis, ±Y-axis, ±Z-axis, 3 times for each direction, total of 18 times. | |
Laser safety | EN 60825-1-2007, Class 1 | |
ESD protection | EN 55024 (ICE 61000-4-2, Contact discharge:+/-4KV, air discharge:+/-8KV), ICE 61000-4-4, ICE 61000-4-5, ICE 61000-4-6, ICE 61000-4-11) | |
RF immunity | ICE 61000-4-3,10V/m | |
Power emission | EN 55022, class B; EN61000-3-2; ICE 61000-3-3 | |
Artificial light immunity |
100,000 lux | |
Q1: I’m interested in your products, but now I’m out of China; could you offer you labels to my country?
A1: Sure! We’ve got full exportation experience, and no matter where you are, we may arrange the delivery for you, either by sea, by air or by express, depending on your need.
Q2: How can I get the samples?
A2: We can provide you free sample for our existing products, the lead time is around 1-2 days. You need to pay for the sample delivery cost.
If you need the samples according to your design, the sample cost has to be charged from you. The lead time is around 5 days.
Q3: Is it possible to custom the labels with my own design?
A3: Yes, and you just need send us your drawings or artworks, then you can get what you want.
Q4: What is your MOQ?
A4: For label stickers, the MOQ is 1000 pcs for each design.
For thermal transfer ribbon, the MOQ is 10 rolls for each type and size.
Q5: Do you provide OEM service?
A5: Yes. Actually, we’re already OEM for some brand, and also do the specific packing for them.
Q6: What is your manufacture lead time for our order?
A6: Our normal lead time is 15-20 days. If you have urgent request, please just let us know. We will try our best to shorten the lead time to meet your requirements.
Q7: How can I release the payment to you?
A7: We can receive your payment by Paypal, Western union or Bank Account.
