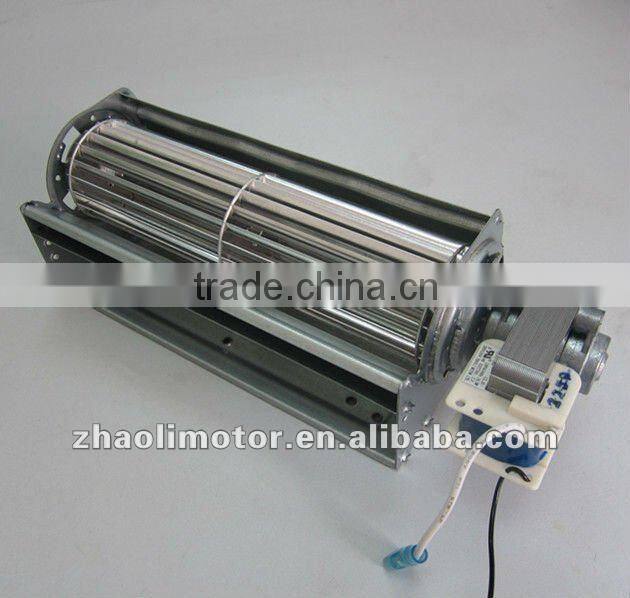

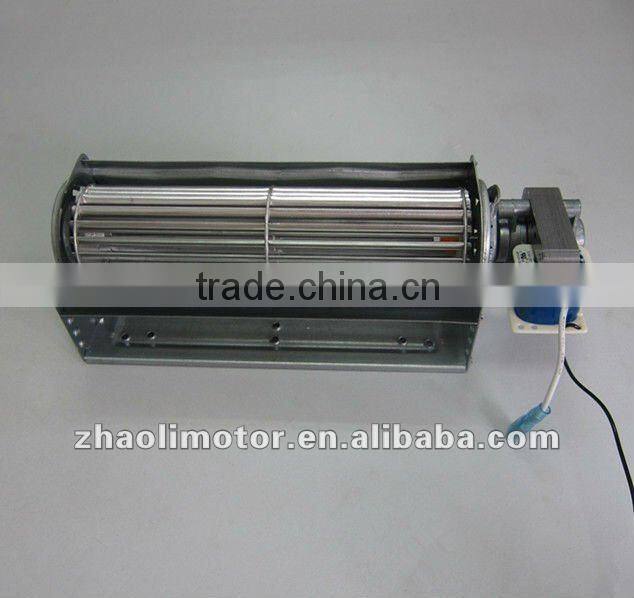

Help CenterCross Flow Blower Small Electric MotorsYJ48-16 Air Conditioner Motor Electric Motor Specifications UL CUL VDE ROHS CCC CE
Related Products
-
Cross Flow Fan Small Electric Motors Shade Pole MotorYJ48-16 Air Conditioner Motor Fan Motor UL CUL VDE ROHS CCC CENegotiableMOQ: 1000 Units -
Cross Flow Fan Heater Fan Motor Shade Pole MotorYJ48-16 Air Conditioner Motor Fan Motor UL CUL VDE ROHS CCC CENegotiableMOQ: 1000 Units
-
Cross Flow Fan Small Motor Shade Pole MotorYJ48-16 for Fireplace,ventilation,heater,cooler,air ConditionerUL CUL VDE ROHS CCC CENegotiableMOQ: 1000 Units
-
Cross Flow Fan Small Motors Fan MotorYJ48-16 for Fireplace,ventilation,heater,cooler,air ConditionerUL CUL VDE ROHS CCC CENegotiableMOQ: 1000 Units
-
Cross Flow Blower Small Motors Electric Motor:100-240VAC,50/60HZ,10000hours,50-400m/h,8-165Pa UL CUL VDE ROHS CCC CENegotiableMOQ: 1000 Units
Specifications
Rated Voltage:100-240VACLaminations: 8--25mm
Size: 48*48mm
Life: 3000 Hours Min
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Series: YJ48-16
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:
Humidifier, Heater, Oven, Air-conditioner, Slide projector
