Help Center12v dc Electric Motor dc Brushless Fan Motor 24v Permanent Magnet Rotation Motor
Related Products
-
Small Low Rpm dc Motor 12v 24v Brushless dc Fan MotorUS$ 2 - 5MOQ: 1000 Pieces -
Small High Rpm dc Motor 12v 24v Brushless dc Fan Heater Motor Nebulizer Motor Cross-fan Blower MotorUS$ 2 - 5MOQ: 1000 Pieces
-
Small High Rpm dc Motor 12v 24v Brushless dc Fan Heater Motor Nebulizer Motor High Efficiency Brushless dc MotorUS$ 2 - 5MOQ: 1000 Pieces
-
Small High Rpm dc Motor 12v Brushless dc Brushless Fan Motor 24v High Efficiency Brushless dc MotorUS$ 2 - 5MOQ: 1000 Pieces
-
Permanent Magnet Motor Brushless Motor Micro Motor:12/24 Volt dc Motor,35dB,50000Hours Life for Kitchen Hood,air Pump,nebulizerNegotiableMOQ: 1000 Units
Specifications
Rated Voltage: 12VDC 24VDCAdvantages: Save more than 50% energy consumption compared with shaded pole motors;
Brushless Direct Current Motor is a type of energy-saved motor. It owns following characteristics:
1) High efficiency:
In general, the efficiency of single-phase AC motor is under 30% , but the efficiency of single-phase DC motor is above 40%.
2) Easy control the speed:
Using PWM to control the speed and obtain linear deviation.
3) Soft start-up ( Lower start-up current):
Decreasing the start-up current to reduce the damage for matching system.
4) High reliability and long life:
Using high tech bearing system to ensure high reliability and long life.
5) Wide temperature range:
Operation temperature : -10~+80°C(5~95% RH),
Storage temperature: -40~+85°C(5~95% RH)
6) Speed feedback and alarm function:
System can easy read real time revolution and give alarm signal when rotor stops.

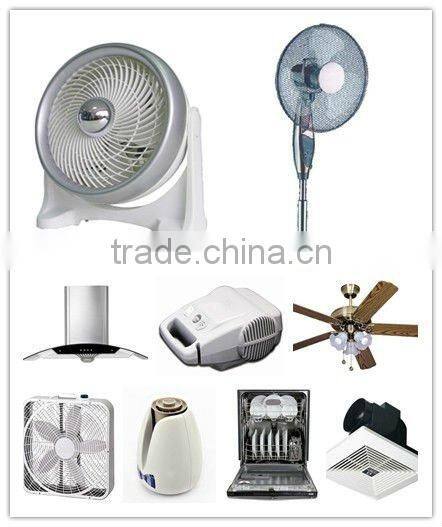

Applications:
Home Electric Fan (Stand Fan, Table Fan, Box Fan), Wall Fan, Medical Air Pump(Nebulizer), Humidifier, Dishwasher, Range Hood

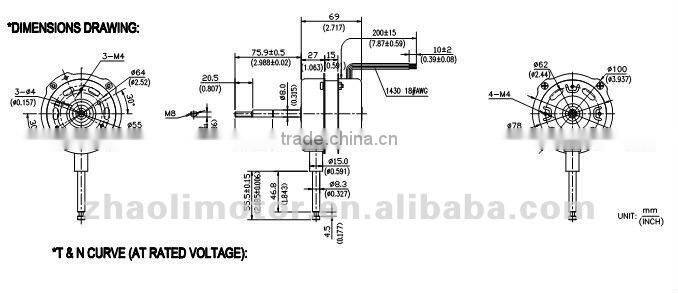

BLDC 75 Specifications:
Welcome to our factory!
