Ceiling fan motor Brushles dc motor for 36/40/42 inch ceiling fan, 90--250rpm, 12/ 24V

Specifications

1.Save more than 50% energy consumption, longer life
2.Positive and negative rotation
3.Stepless speed regulating



    Brushless Direct Current Motor is a type of energy-saved motor. It owns following characteristics:



1)  High efficiency:

     In general, the efficiency of single-phase AC motor is under 30% , but the efficiency of single-phase DC motor is above 40%.

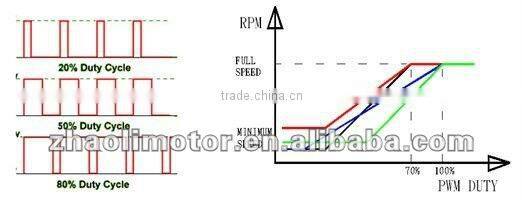

2)  Easy control the speed:

     Using PWM to control the speed and obtain linear deviation.

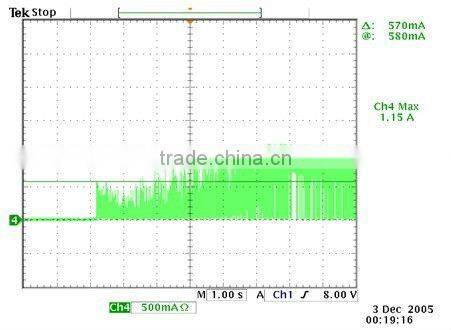

3)  Soft start-up ( Lower start-up current):

     Decreasing the start-up current to reduce the damage for matching system.

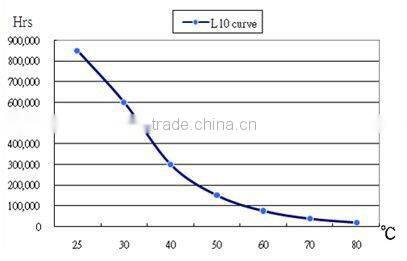

4)  High reliability and long life:

     Using high tech bearing system to ensure high reliability and long life.



5)  Wide temperature range:

     Operation temperature : -10~+80°C(5~95% RH),

     Storage temperature: -40~+85°C(5~95% RH)

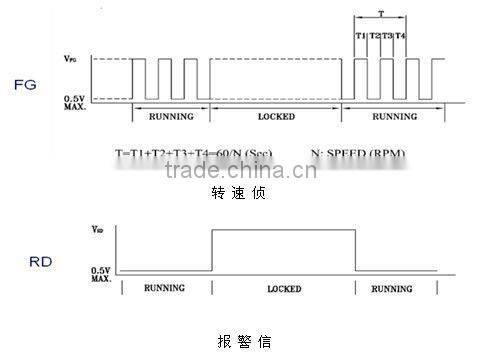

6)  Speed feedback and alarm function:

     System can easy read real time revolution and give alarm signal when rotor stops.


 Series:   65












Application:

       Electric Fan, Ceiling fan
