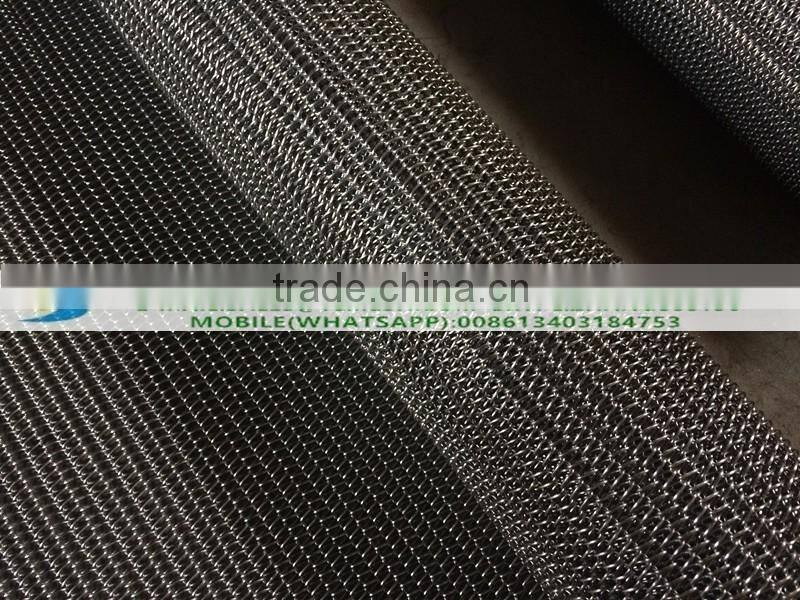

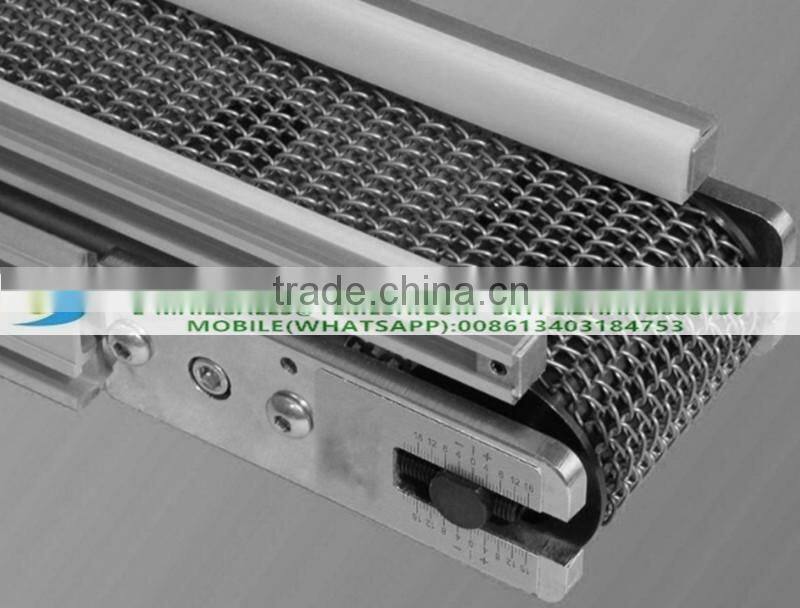

Balanced weave conveyor belts are the most versatile and widely used metal conveyor belts, thanks to their characteristics of true travel, good flexibility, excellent strength-to-weight ratio, flat surface and minimal maintenance. These belts are typically friction driven and are popular for conveying a variety of products, particularly those that are small or need a lot of support. Food processing balanced weave belts are typically used in product transfer and in baking applications. Balanced weave conveyor belting can also be used in industrial product processing, transfer and packaging applications
Woven balance wire conveyor belt material：
High Carbon Steel
Galvanized
3% Chome/Chromium
Manganese
304 Stainless Steels
316 Stainless Steels
314 Stainless Steel
316L
330 Stainless Steel
430 Stainless Steel
35-19cb
80-20 cb
Nichrome V
Inconel 600
Inconel 601
Inconel 625
Industrial Product Processing, Transfer and Packaging Belts
Annealing Oven Conveyor Belts
Cooker and Fryer Conveyor Belts

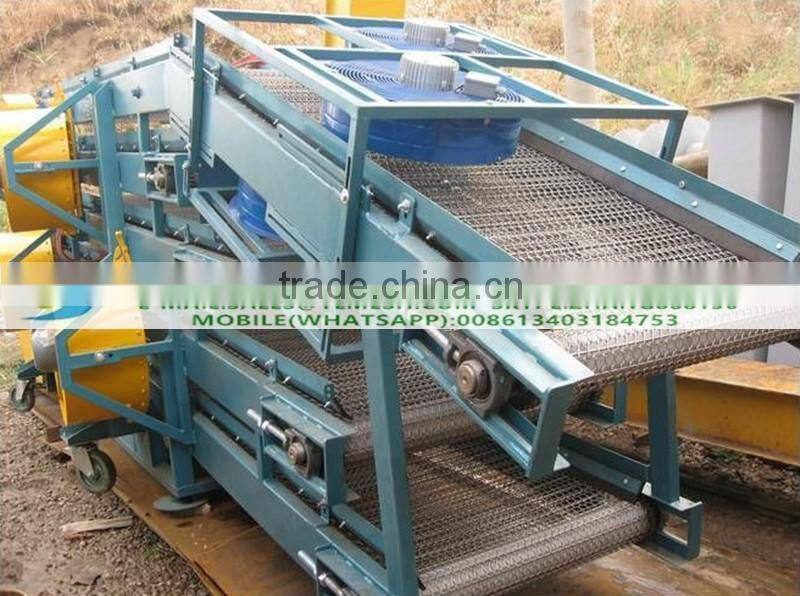

Drying and Cooling Conveyor Belts
Balance weave is an economical, general use belt for medium load applications from 40 - 1500 degrees F. It is the most commonly used wire mesh conveyor belt worldwide including many food processing applications (from draining to cooling) as well as industries ranging from ceramic, glass and metalworking. For medium temperature and load conditions, these belts are very economicaland will fit well into any company's budgets. The balance weave belt is used more widely on more applications than any other woven wire mesh conveyor belt. Glass is annealed on it, potatoes drain on it, product cools on it, vegetables are washed on it, pretzels are salted on it. The uses of a balance weave conveyor belt in a conveying application are endless. It's also commonly used in other applicatons as screen, or guards or mesh panels.
Balance weave mesh offers a variety of chocies. The mesh can be very open, or very tight
Balance Weave wire mesh conveyor belts install easily with simple maintenance. Damaged sections of the belt are easily replaced by the end user, which allows for less downtime.

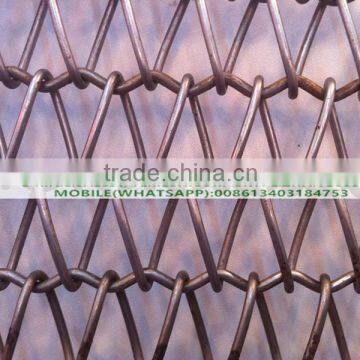

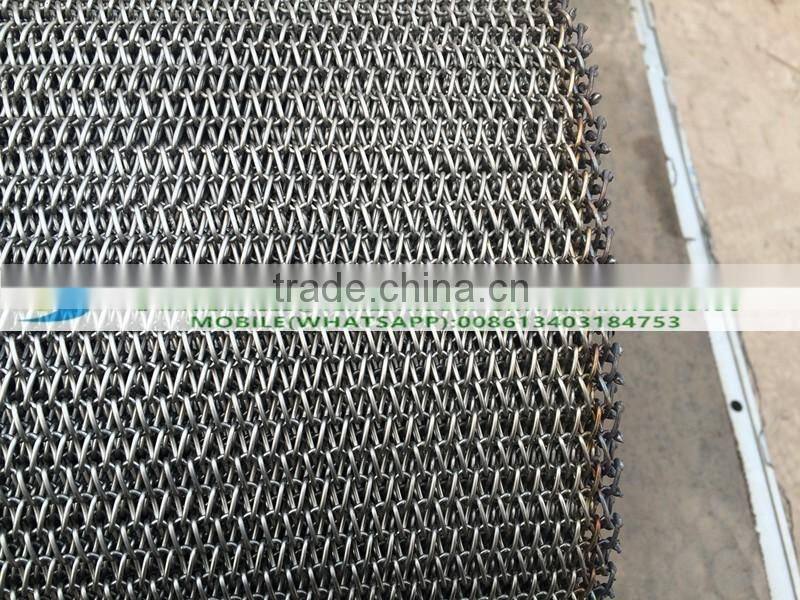

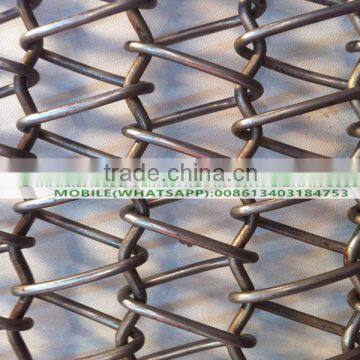

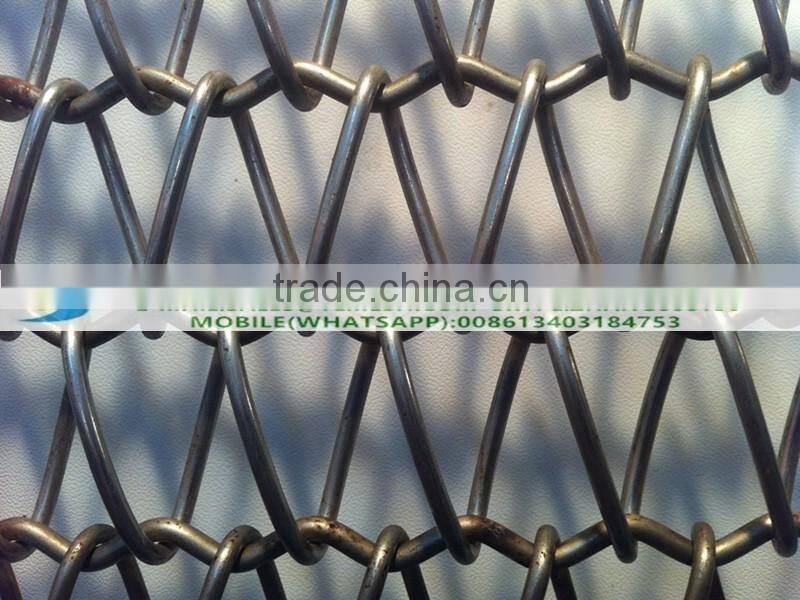

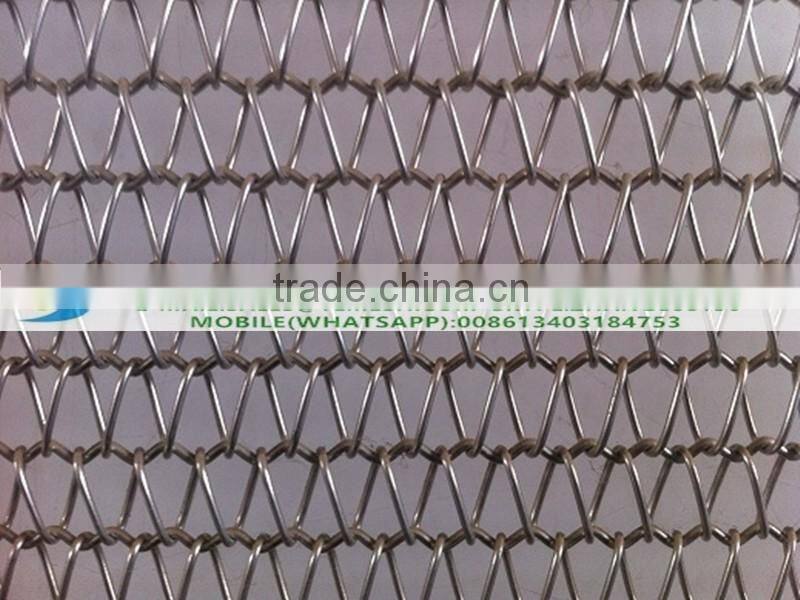

A Balance weave's constuction is an alternating right and left hand spirals that do not interconnect with each other. They are joined by a crimped rod which holds each spiral in place. The rods connecting the spirals are can be of a larger diameter than the spiral wires, adding durability to the construction. The spiral seats on the crimped connecting rod, allowing the belt to run straight and true. The belt will not creep to either side.
