Good Heat Conductivity 1600 Silicon Carbide Plate for Non Ferrous Metal

Good Heat Conductivity 1600 Silicon Carbide Plate for Non Ferrous Metal thumbnail-1
Good Heat Conductivity 1600 Silicon Carbide Plate for Non Ferrous Metal thumbnail-2
Good Heat Conductivity 1600 Silicon Carbide Plate for Non Ferrous Metal photo-1
Good Heat Conductivity 1600 Silicon Carbide Plate for Non Ferrous Metal photo-2
US$ 1 - 300 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Shape:
Plate
Material:
Silicon Carbide (SiC)
Contact Supplier Request Quote Chat Now
Zhengzhou Lepe Refractory Materials Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai/Qingdao CIF Roma/MEX
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Shape Plate
Material Silicon Carbide (SiC)
SiO2 Content (%) ≤12%
Al2O3 Content (%) ≤12%
SiC Content (%) ≥85%
Model Number SP-3
Brand Name LEPE

Good heat conductivity 1600 silicon carbide plate for non ferrous metal

Product Details

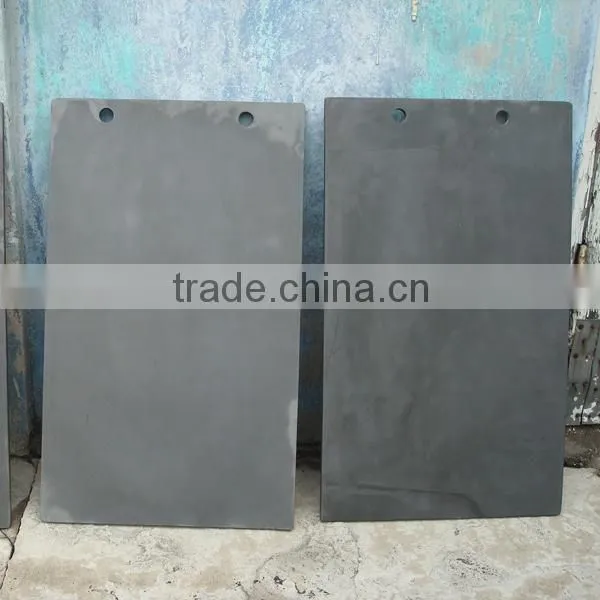

1.Pictures of Product

Good heat conductivity 1600 silicon carbide plate for non ferrous metal



Good heat conductivity 1600 silicon carbide plate for non ferrous metal



Good heat conductivity 1600 silicon carbide plate for non ferrous metal



2.Feature of Product

1)Good properties of cauterization-resistance

2)Anti-oxygenation,anti-aging,anti-transfiguration

3)Heat-resistance and big intensity at high temperature

4)Perfect heat-conduction performance and wearability   silicon carbide plate for non ferrous metal



3.Parameter of Product

Apparent porosity ≤16%
Bulk density ≥2.65g/cm3
Cold compression strength ≥100Mpa
Modulus rapture at room temperature ≥25Mpa
Coefficient of thermal liner expansion 4.5×10-6 /℃
Thermal conductivity ≥12w/mk
Refractoriness 1600℃
0.2Mpa  (Loading softening point) 1500℃
Max working temperature 1400℃
Composition SiC ≥85%
Al2O3+SiO2 ≤12%
Fe2O3 ≤1.0%



4.Producing Craft of Product

1)Reaction bonded silicon carbide plate, minimum thickness:8-10mm

2)Oxide bonded silicon carbide plate, minimum thickness:15-20mm



5.Application of Product

Shed board, flame clapboard and push board in the field of pottery porcelain and abrasive tool,etc.

More Products

 More products details, pls click the photo.

 Good heat conductivity 1600 silicon carbide plate for non ferrous metal

Company Information

1.Introduction of Company

 Business Type:Manufacturer, Trading Company

 Registration No.: 410102000058705

 Main Products:MoSi2 heating element,SiC heating element,Ceramic  fiber board,Silicon carbide products,Silicon nitride products

 Location:Henan, China (Mainland)   silicon carbide plate for non ferrous metal
