High quality refractory Si3N4 silicon nitride tube
- 10000 Piece / Pieces per Month
- FOBzhengzhou/qingdao/ningbo/tianjin/shanghai/shenzhen
- T/T Credit Card
- Magnesium oxide 90%
- Shandong supplier fiber reinforced calcium silicate board
- Placa de silicato de calcio 1000 * 500 * 50 mm
- High density thermal insulation material, high-temperature refractory lining
- High density calcium silicate board, carbon fiber, glass fiber
- High density non stick calcium aluminosilicate board
Product Details
Place of Origin: | Henan, China | Shape: | Brick | Material: | Other, Si3N4 bond SiC |
SiO2 Content (%): | 10% | Al2O3 Content (%): | Nil | MgO Content (%): | Nil |
CaO Content (%): | Nil | CrO Content (%): | Nil | ||
SiC Content (%): | 72 | Model Number: | LP-SiN-28 | Brand Name: | LEPE |
Product Description

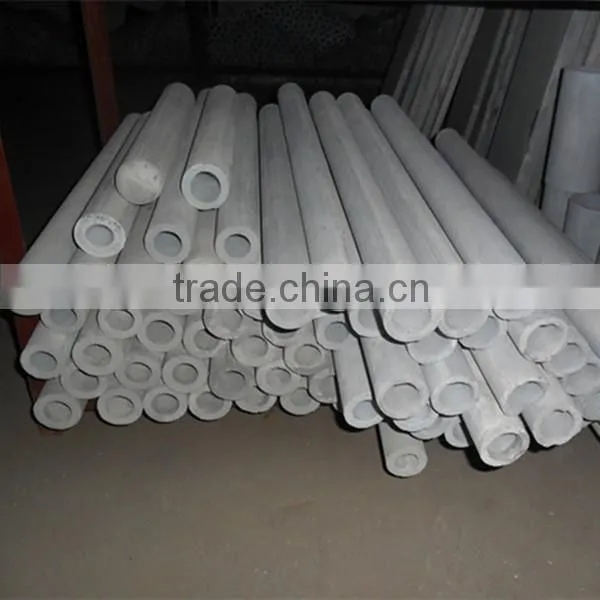

High quality refractory Si3N4 silicon nitride tube
Silicon Nitride (Si3N4) bonded silicon carbide (SiC) material is a new type of advanced refractory materials. Compared with silicon carbide product, the product has characteristics of small thermal expansion, high thermal conductivity, not easy to have thermal stress, good thermal shock resistance, corrosion resistance, extreme cold or heat, oxidation, high temperature creep resistant ability and easily made into products with high dimensional accuracy requirements in line. Silicon nitride combined silicon carbide products have very high strength for normal atmospheric temperature, and it remains almost the same time with the strength and hardness at high temperature 1200-1400C. with the difference of using atmosphere, the maximum safe operating temperature could reach 1650-1750C.
Project | Index | |
Apparent porosity | ≤16% | |
Bulk density | ≥2.65g/cm3 | |
Cold compression strength | ≥160Mpa | |
Modulus rapture at room temperature 1400C | ≥45Mpa | |
Modulus rapture at elevated temperature 1400C | ≥50Mpa | |
Coefficient of thermal liner expansion 1100Cx10‾6/C | 4.18 | |
Thermal conductvity 1100C w·m‾1·k‾1 | ≥17 | |
Refractoriness | 1800C | |
0.2Mpa loading softening point | 1600C | |
Max working temperature | 1550C | |
Composition % | SiC | ≥71 |
Si3N4 | ≥23 | |
Fe2O3 | ≤1.0 | |
Si | ≤0.4 |
1. About sample:
We can sent customer samples to test our product.
2. About quotation:
Fob zhengzhou/qingdao/ningbo/dalian/tianjin/shenzhen/shanghai/alataw pass
We also can offer you C&F,CIF,Door to Door according to customers’ requirement
3. About packing:
Usually,inner is film&foam,outter is wooden box.We also can do the packing according to customers’ requirement
Our company is a high & new technology enterprise specially engaged in developing, manufacturing and selling
refractory materials, molybdenum disilicide (MoSi2) heating elements and tungsten (W) and molybdenum (Mo)
products. Our products can be used in all electricity and heating areas and are suitable for many kinds of trades,
such as electron, chemical industry, metallurgy, machinery, paper making, pottery and glass.
Our company mainly manufactures series of refractory materials of MoSi2 heating elements, Silicon Carbide (SiC)
heating elements, Tungsten (W) and Molybdenum (Mo) materials and Resistance wires. With advantages in technology,
equipment, scale and management, our company is in the leading station of this trade. Owing to the keen consciousness of
quality and commercial reputation, our products are exported to Germany, Thailand, Japan, Korea, India, Turkey, Ukraine,
Iran, etc.
About the cargo damage and loss:
When we pay the shipping cost,if cargo damage and loss,we will bear the loss of cargos.
MoSi2&SiC heating element
Thermocouple
Tungsten&Molybdenum product
W-Cu product
Ceramic kiln shelf,panels,pillars,seperated flame plate,Waste Incineration Furnace Lining,aluminum tank.
All products are produced to the highest quality standards which means the consistent supply of ceramic components to enable your process to run more efficiently.
All components are supplied with a replacement guarantee. This guarantee provides for the replacement of the component if the service life is reduced because of a fault in the manufacturing process.
Typically we offer a guarantee of 40 days life in service for a riser tube in a low pressure aluminum die casting application, depending on the design. Our experience has shown that the design of the riser tube has an effect on the operational life. We can call on our experience and advise on the design of components to ensure the longest possible life for ceramic parts in your equipment.
