Home > Products > Other Refractory Brick > High temperature furnace kiln used refractory zirconia brick

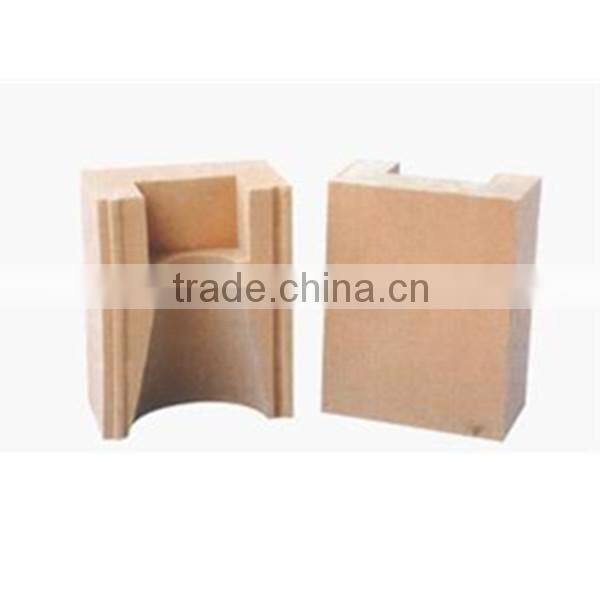

High temperature furnace kiln used refractory zirconia brick
- 2 Metric Ton / Metric Tons per Month
- Shanghai Istanbul Bombay Karachi Rio de Janeiro
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Henan, China | Shape | Brick | |
Material | Other, Zirconia | SiO2 Content (%) | 0 to ≤38% | |
Al2O3 Content (%) | 0 to ≥60% | MgO Content (%) | none | |
CaO Content (%) | none | |||
CrO Content (%) | none | SiC Content (%) | none | |
Model Number | refractory zirconia brick | Brand Name | Lepe |
Product Description
Specifications
Refractory zirconia brickFive types: dense zircon brick,zircon brick,Zi-Cor brick,Zi-Mull brick,Semi-Zi brick
High temperature furnace kiln used refractory zirconia brick
Our zirconia brick is made of α-Al2O3, partially stabilized zirconia and zirconium corundum clinker and other materials.
They are raw materials.
Then mixing → molding → drying → sintering(sinter at high temp in shuttle kiln), through these producing, then made into refractory zirconia brick.
Feature
1.Dense crystal structure, high bulk density, high unit weight,
2.High mechanical strength at high temperature and normal temperature, good thermal shock resistance,
3.Small reheating contraction and high temperature peristaltic
4.Has a very high chemical stability and anti alkaline medium corrosion.
Parameter
Item | Dense Zircon brick | Zircon brick | Zi-Cor brick | Zi-Mull brick | Semi-Zi brick |
ZrO2 % | ≥65 | ≥60 | ≥30 | ≥18 | ≥15-20 |
Al2O3 % | - | - | ≥50 | ≥55 | ≥50-60 |
SiO2 % | - | ≤38 | ≤18 | ≤25 | ≤20 |
Fe2O3 % | ≤0.3 | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.0 |
Apparent porosity % | ≤18 | ≤22 | ≤20 | ≤17 | ≤20 |
Bulk density g/cm3 | ≥3.7 | ≥3.5 | ≥3.2 | ≥2.7 | ≥2.7 |
Cold crushing strength MPa | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 |
Refractoriness under load °C | ≥1650 | ≥1620 | ≥1650 | ≥1650 | ≥1550 |
refractory zirconia brick
Application
Dense zircon brick is mainly used in sodium - calcium glass kiln middle brick, skew block, etc
Containing zirconium brick is mainly used in large Glass kiln melting pool, CRT furnace ,
regenerative chamber wall brick and the solution erosion area in the kiln in chemical industry, metallurgical industry.
