Specifications

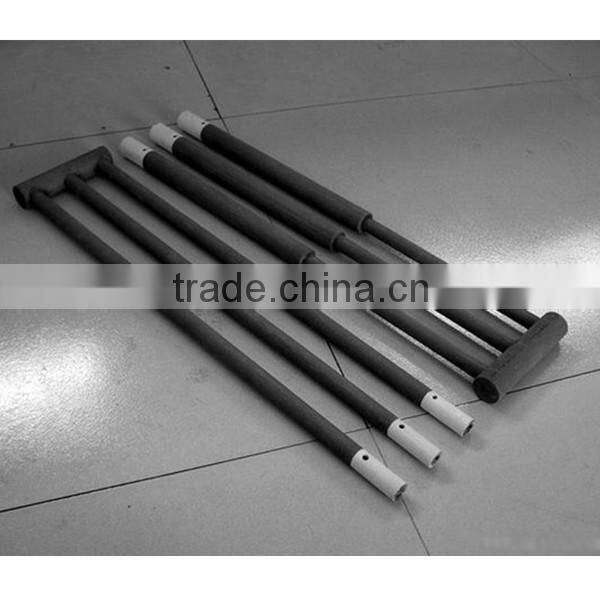

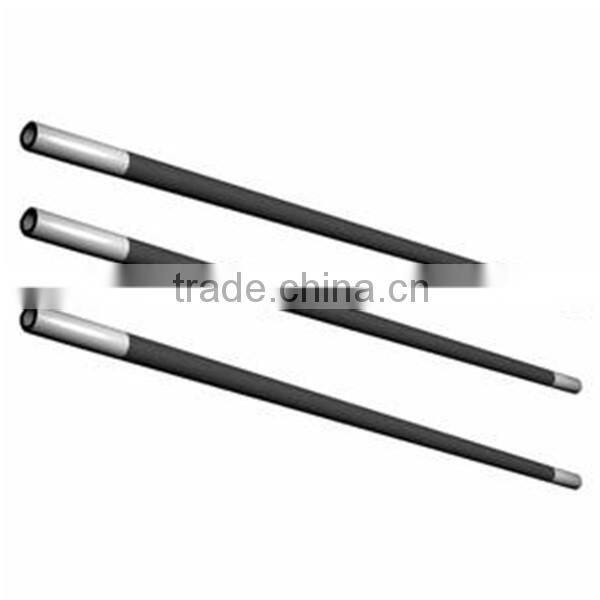

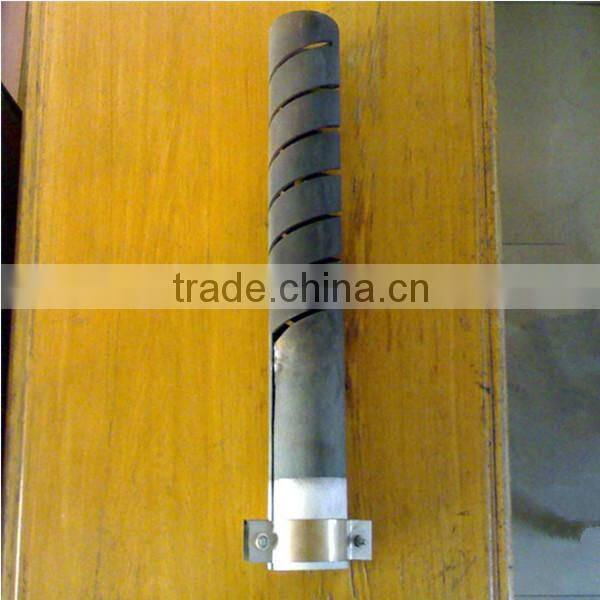

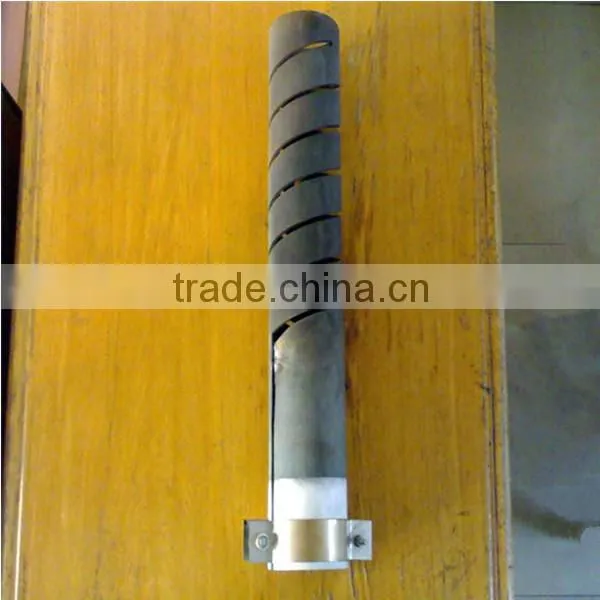

silicon carbide heating rods1.U, W, ED, DB, SCR, SC, UX type
2.Diameter:8-50mm
3.Customizable
4.ISO 9001
High quality 1600c ED/DB/U/W/SC/SCR/UX type silicon carbide heating rods
1.Description of silicon carbide heating rods
1) Non-metallic heating element, based on material of high quality green silicon carbide
2) Compared with metal, SiC heater is characterized by anti-oxidation, corrosion resistance, long service life, deformation, easy installation and maintenance.
3) Widely used in multiple high temperature furnace(magnetic material, powder metallurgy, ceramic, glass, metallurgy and mechanical used) and other electric heating devices
4)SiC heater can be used in air atmosphere without any protect atmosphere.

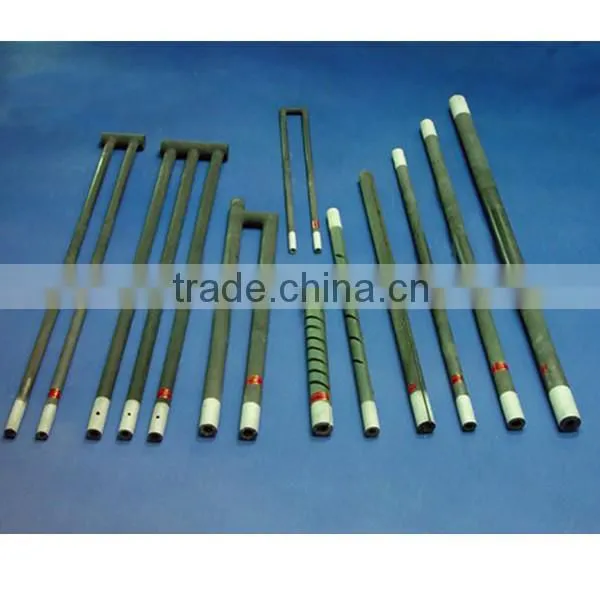

We make U, W, ED, DB, SCR, SC, UX type , also can be customizable
The diameter of heating element are 8mm, 10mm,12mm, 14mm, 16mm, 18mm, 20mm, 25mm,30mm,35mm, 40mm, 45mm, 50mm and so on.
2. Physical properties of silicon carbide heating rods
Specific gravity |
2.6~2.8g/cm3 |
Bend strength |
>300kg |
Hardness |
>9MOH’S |
Tensile strength |
>150kg/cm3 |
Porosity rate |
<30% |
Radiancy |
0.85 |
Diameter (OD, mm) |
Hot zone (HZ, mm) |
cold zone (CZ, mm) |
Overall length (OL, mm) |
Range of resistance (ohms) |
12 |
150-300 |
150-200 |
450-700 |
1.85-3.15 |
14 |
200-400 |
200-250 |
600-900 |
1.22-2.40 |
16 |
300-600 |
250-350 |
800-1100 |
1.60-3.00 |
20 |
300-900 |
300-400 |
1100-1500 |
1.14-3.10 |
25 |
300-1000 |
300-450 |
900-1600 |
0.75-2.40 |
30 |
400-1100 |
300-500 |
1000-1800 |
0.70-1.82 |
31.7 |
356-1499 |
280-406 |
916-2261 |
0.5-2.25 |
35 |
40-1700 |
300-400 |
1200-2300 |
0.68-2.89 |
38.1 |
406-1422 |
280-394 |
966-2210 |
0.4.-1.36 |
40 |
500-1700 |
300-400 |
1300-2300 |
0.60-2.02 |
44.4 |
508-2437 |
280-432 |
1068-3277 |
0.36-1.66 |
50 |
1000-2000 |
400 |
1800-2800 |
0.73-1.46 |
54 |
508-2438 |
305-458 |
862-3278 |
0.30-1.40 |
If you need parameter of other types, pls write to me
6.Why do you choose our SiC heater?
1) Accept customized
2) Installation technical guidance
3) Inquiries answered within 24 hours
4) Pay for SiC heater damaged in the transit
More information, pls click the following pictures.
