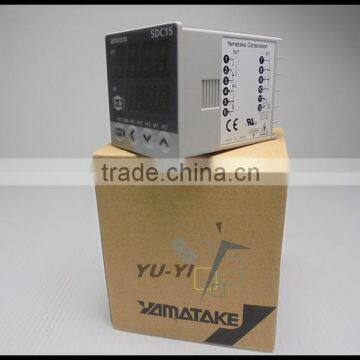

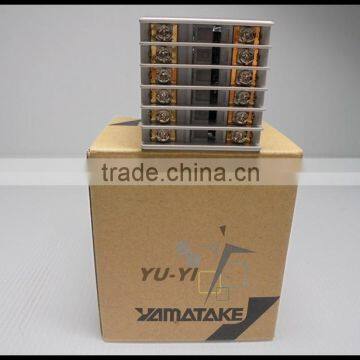

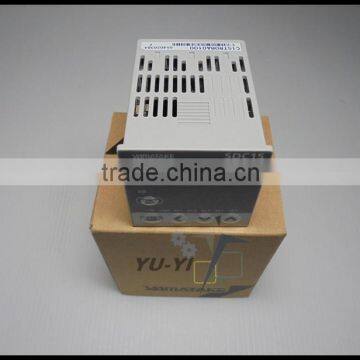

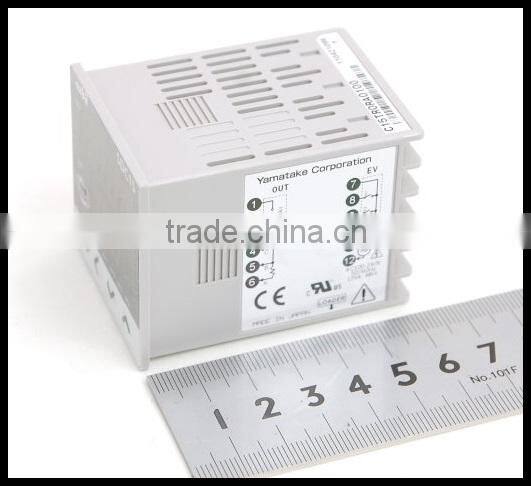

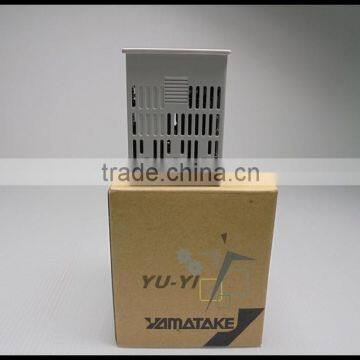

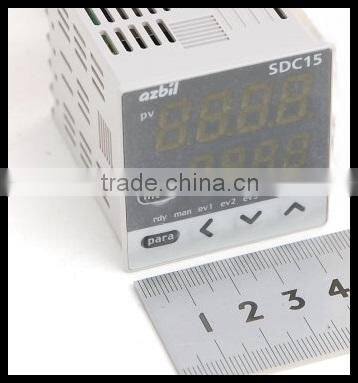

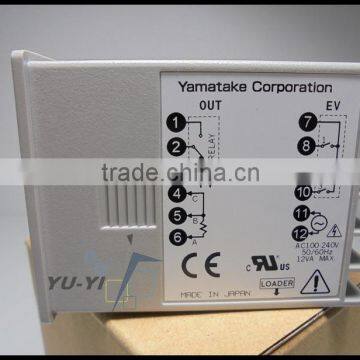

NEW YAMATAKE AZBIL Thermostat C15TRORA0100

PV input

Type

Thermocouple, RTD, DC current, DC voltage (varies according
to model)

Sampling cycle

0.5s

Indication

Indication method

4-digit, 7-segment LED. (PV: Upper green display, SP: Lower
orange display)

Indication accuracy

±0.5% FS ± 1 digit. In the negative area of the thermocouple,
the accuracy is ±1% FS ± 1 digit (at an ambient temperature
of 23 ± 2°C)

Control output

Model No. Segment III

R0

V0

VC

VV

C0

CC

Control output 1

Relay

Voltage
pulse(for  SSR drive)

Voltage
pulse(for  SSR drive)

Voltage
pulse(for  SSR drive)

Current

Current

Control output 2

 -

 -

Current

Voltage
pulse(for  SSR drive)

 -

Current

Control method

1. ON/OFF control. 2. Control with fixed PID value
(RationaLOOP PID). 3. Self-tuning

Remote switch inputs

NO.of inputs

2

Function

Up to 4 kinds of SP selections, RUN/READY selection,
input AUTO/MANUAL selection, Auto-tuning stop/start, etc

Event

No. of outputs

0 to 3 (according to the model)

Type

PV high limit, PV low limit, PV high/low limit, Deviation high
limit, Deviation low limit, Deviation high/low limit, etc.

Communications

RS-485

Current transformer inputs

2

General

Power

AC model: 100 to 240Vac 50/60Hz
DC model: 24Vac 50/60Hz / 24Vdc

Power consumption

AC model: 12VA max.
DC model: 7VA max. (24Vac),
5W max. (24 to 48Vdc)

Standards compliance

CE: EN61010-1,EN61326
cUL: File No. E246616

Mass

S type: Approx. 200g (including socket)
T type: Approx. 150g (including dedicated mounting bracket)
