Specifications
laminating machine for film coating lamination data:1. raw material PE EVA
2. 0.01-0.2mm thickness
3. T die extrusion

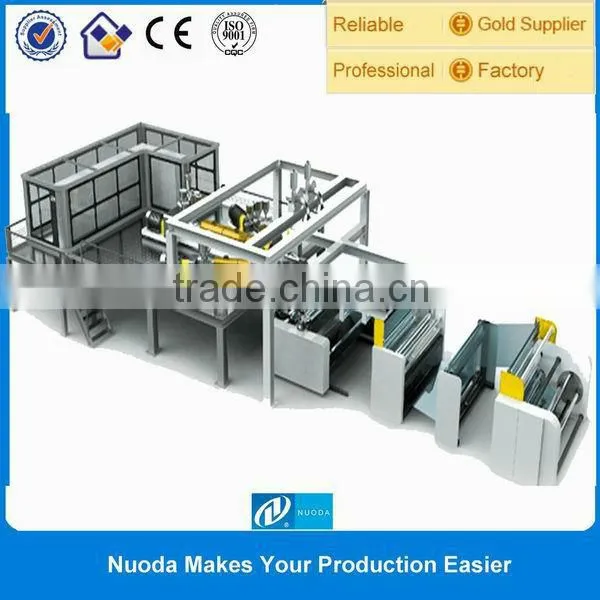

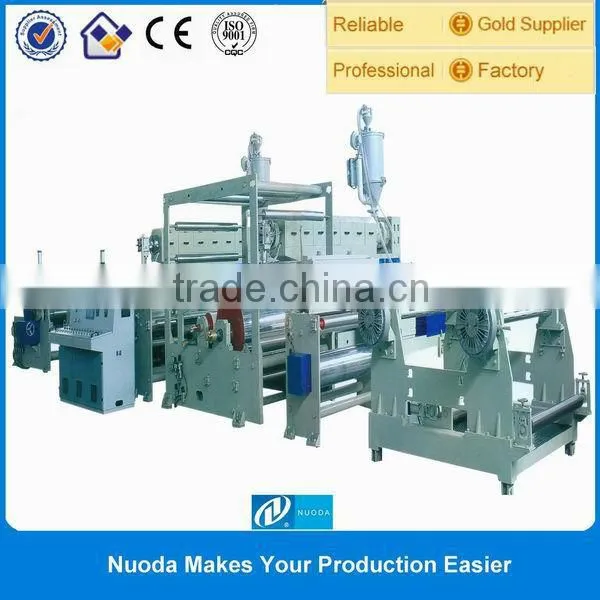

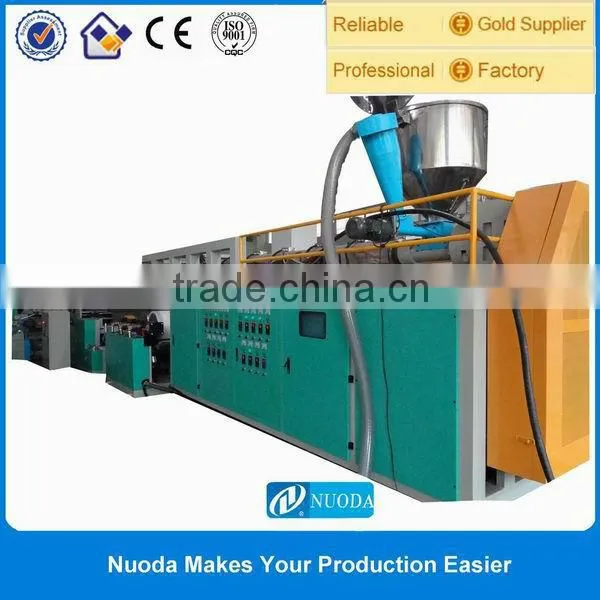

laminating machine for film coating lamination
Introduction:
This machine uses LDPE, PP, EVA, PEVA, LLDPE, HDPE, TPU as raw material, and then laminates the extruded film onto various kinds of substrates, such as nonwoven fabric, BOPP, BOPET, BOPA, and paper etc. The final products are widely used for hygienic and medical products, the packaging of food, chemical industry, electrical products and metallurgy etc.
Characteristics & Applications:
1) Made up of plastic extruder, T die, first unwinder, embossing unit,second unwinder, edge trim unit, slitting system, automatic rewinder, etc.
2) Friction roll rewinding, or double-station turret rewinding, roll pre-rewinding device and single or double side laminating machine for choice.
3) Running for 24 hours, and change rolls automatically without stop, production speed can be 30-100/min.
4) Laminating PE, EVA, PP, TPU with paper,plastic film, non-woven, fabric or aluminum foil into double layer, three layers or multi-layers products.
5) Product are used as packing products for cement, chemicals, forage, food, medicine, adhesive tape, PE coated paper cups and fast food boxes,etc.
Technical data:
Model |
Screw Diameter |
Screw L/D ratio |
T Die Width |
Film Width |
Film Thickness |
Liner Speed |
ND-FH-1200 |
90 | 33:1 |
1200mm |
1000mm |
0.015-2.0mm |
30-80m/min |
ND-FH-1750 |
90 | 33:1 |
1750mm
|
1550mm |
0.015-2.0mm |
30-80m/min |
ND-FH-2000 |
110 | 33:1 |
2000mm |
1800mm |
0.015-2.0mm |
30-80m/min |
ND-FH-2300 |
120 | 33:1 |
2300mm |
2100mm |
0.015-2.0mm |
30-80m/min |
ND-FH-2700 |
135 | 33:1 |
2700mm |
2500mm |
0.015-2.0mm
|
30-80m/min |
Please contact us for more machine technical datails and proposal. We can send you machine videos for clearunderstanding.
Workshop And Equipments:
Customer's production field:
