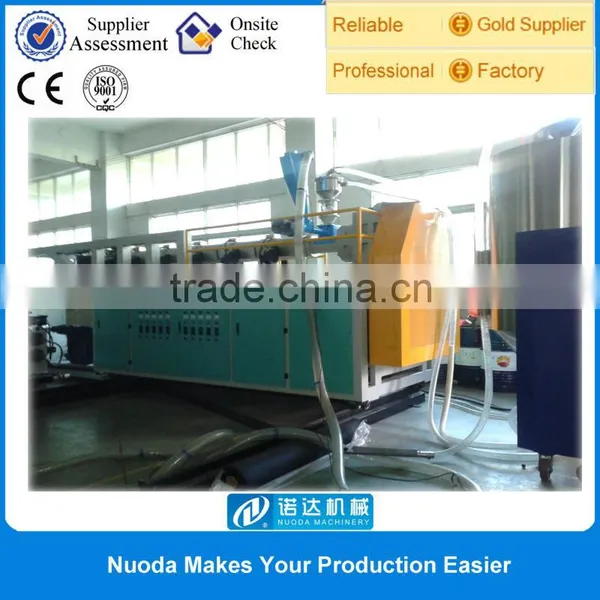

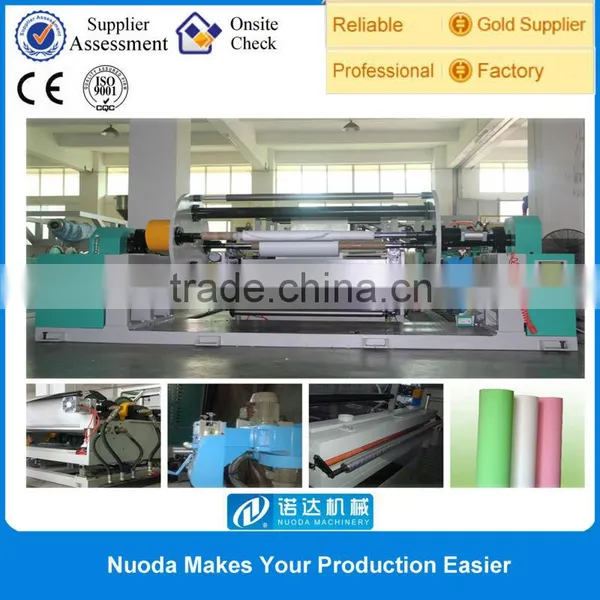

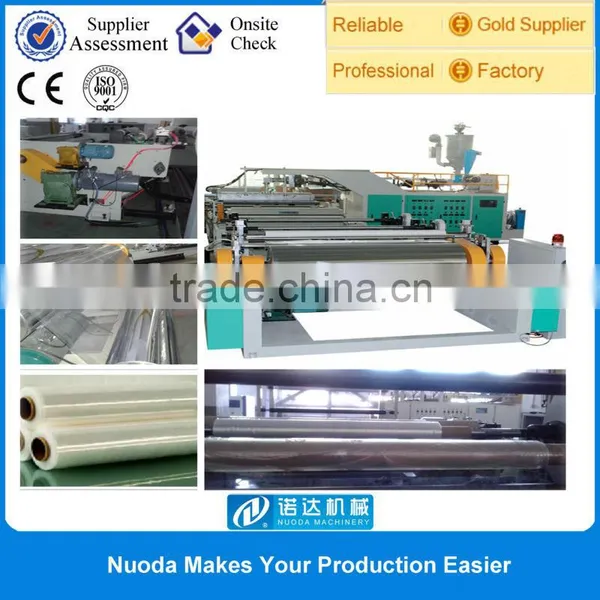

CE Certificate High speed automatic film equipment for surgical product
Introduction:
PEVA film extrusion plant for shower curtain uses LDPE, PP, EVA, PEVA, LLDPE, HDPE, TPU as raw material, and then laminates the extruded film onto various kinds of substrates, such as nonwoven fabric, BOPP, BOPET, BOPA, and paper etc. The final products are widely used for hygienic and medical products, the packaging of food, chemical industry, electrical products and metallurgy etc.
Characteristics & Applications:
1) Made up of plastic extruder, T die, first unwinder, embossing unit,second unwinder, edge trim unit, slitting system, automatic rewinder, etc.
2) Friction roll rewinding, or double-station turret rewinding, roll pre-rewinding device and single or double side laminating machine for choice.
3) Running for 24 hours, and change rolls automatically without stop, production speed can be 30-100/min.
4) Laminating PE, EVA, PP, TPU with paper,plastic film, non-woven, fabric or aluminum foil into double layer, three layers or multi-layers products.

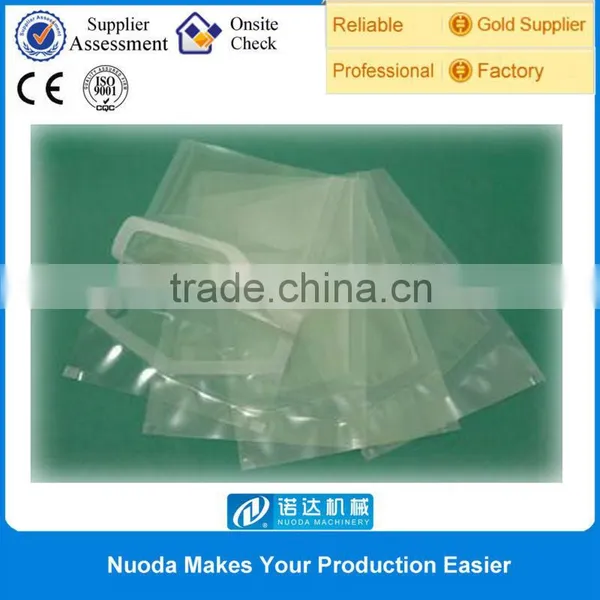

5) Product are used as packing products for cement, chemicals, forage, food, medicine, adhesive tape, PE coated paper cups and fast food boxes,etc.
Technical data:
Model |
Screw Diameter |
Screw L/D ratio |
T Die Width |
Film Width |
Film Thickness |
Liner Speed |
ND-FH-1200 |
90 |
33:1
|
1200mm |
1000mm |
0.015-2.0mm |
30-80m/min |
ND-FH-1750 |
90 | 33:1 |
1750mm
|
1550mm |
0.015-2.0mm |
30-80m/min |
ND-FH-2000 |
110 | 33:1 |
2000mm
|
1800mm |
0.015-2.0mm |
30-80m/min |
ND-FH-2300 |
120 |
33:1 |
2300mm |
2100mm
|
0.015-2.0mm |
30-80m/min |
ND-FH-2700 |
135 | 33:1 |
2700mm |
2500mm |
0.015-2.0mm
|
30-80m/min
|
Please contact us for more machine technical datails and proposal. We can send you machine videos for clear understanding.
Workshop And Equipments:
Customer's production field:
1.we will do full support for your new project, from machine design, manufacturing, installing, workers' training, raw materials supply, trial production to final production
2.we have rich experience and we are very professional in help new buyers to set up the project successfully
3.our price is far lower than our competitors due to our advanced technology throughout the year
4.we would like to give you best price because we really want to work with you for a long term
5.when the machines are delivered to buyers, we will dispatch engineers to install, test machines and train workers again in buyer’s factory
6. we can give all life long technical support and it there is any problem, we will responsible to offer solution at first time to help the buyers to solve the machine production in a short time
