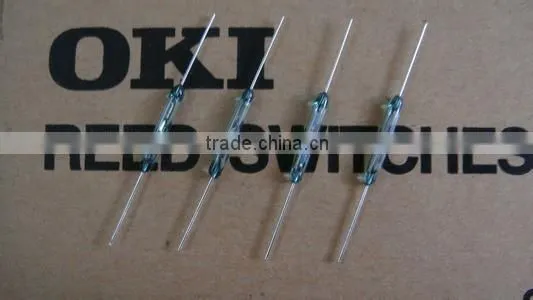

reed switch

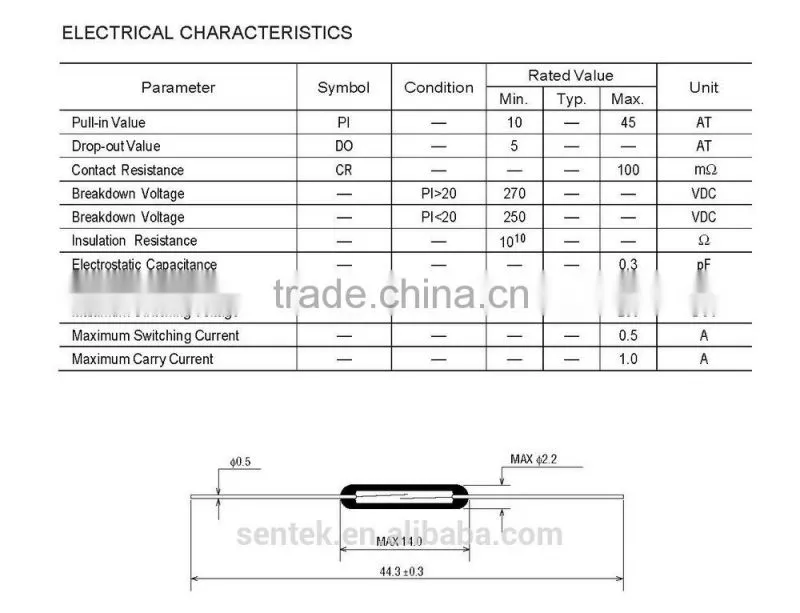

Specifications

made in Japan
High quality with low cost
14mm glass lenght
10W, VA

The ORD324 is a small single-contact reed switch designed for general control of mediumlevel loads less than 200 V. The contacts are sealed within the glass tube with inert gas to maintain contact reliability.

Features:

(1) Reed contacts are hermetically sealed within a glass tube with inert gas and do not receive any influence from the external atmospheric environment.

(2) Quick response

(3) The structure comprises an operating system and electrical circuits coaxially. Reed switches are suited to applications in radio frequency.

(4) Reed switches are compact and light weight.

(5) Superior corrosion resistance and wear resistance of the contacts assures stable switching operation and long life.

(6) With a permanent magnet installed, reed switches economically and easily become proximity switches.
