Contact Platform Support
Help CenterVacancy Sensor
Related Products
Excellent vacancy sensor for automatic light control, NOT Smart, but Simple, Reliability
§ Advantage:
1) The existing LED light sensor is only applicable to simple corridor and parking lighting control
2) The existing LED light sensor cannot be used for complex corridor and indoor lighting control
3)The existing LED light sensor is only suitable for moving human detection
4) The existing LED light sensor cannot detect the indoor activities, such as reading, office, meeting etc.
Characteristics
§ With the patented technology of sensor circuit design

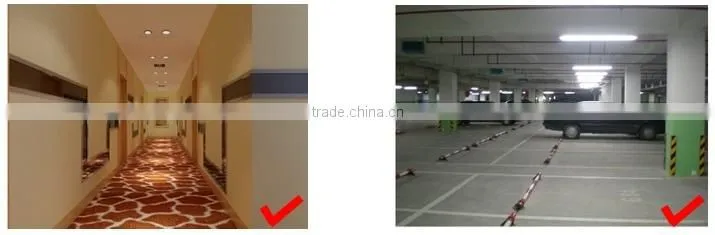

| Application | Sentek Sensor | Other Manufacturers Sensor |
| Corridor | √ | √ |
| Parking Lot | √ | √ |

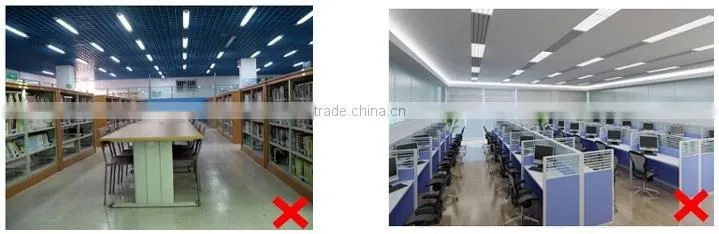

| Library | √ | Χ |
| Reading Room | √ | Χ |
| Classroom | √ | Χ |
| Office | √ | Χ |
| Meeting Room | √ | Χ |
| Production Workshop | √ | Χ |
| Market | √ | Χ |
| Toilet | √ | Χ |
• LED lighting sensor can be used for complex corridor and indoor lighting control.
§ With the patented design technology of key part

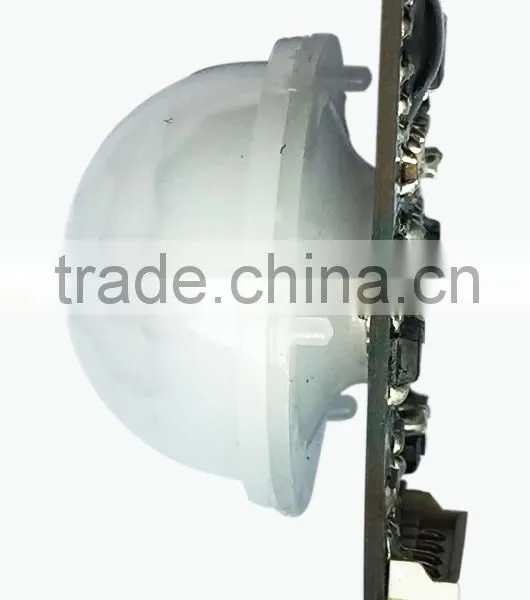

| Sensor | Photograph | Detection Angle | Description |
| Sentek Sensor |
|
360º |
4 directions sense |
| Other manufacturers's sensor |
|
180º |
2 directions sense 2 directions slow |
→Sensitive of Detection Direction
→Slow of Detection Direction
§ With the patented technology of fresnel LENs design
1. Detection area comparison
| Item | Sentek Sensor | Other manufacturers' Sensor |
| Detection Area |
|
|

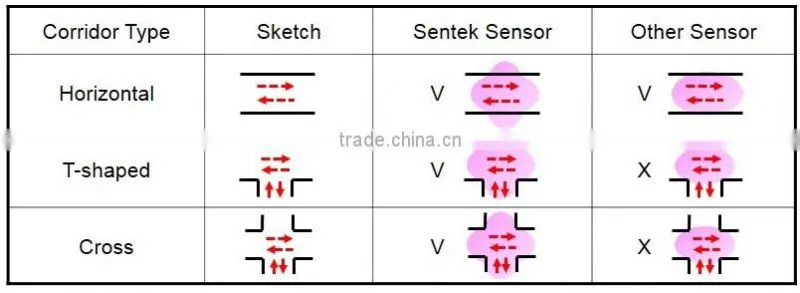

2. Application of corridorcomparison
§ With the patented technology of anti interference design
| Application Environment | Sentek Sensor | Other manufacturers' Sneosr |
| Fan | √ | χ |
| Air-Condition | √ | χ |
| Flowers swaying | √ | χ |
| Window Curtains | √ | χ |
| Humidifier | √ | χ |
| Small Pets | √ | χ |
§ Specification

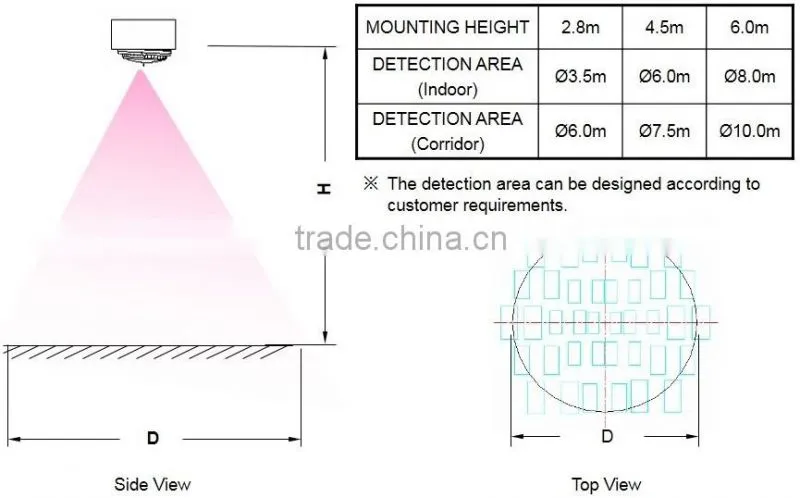

♦ Detection Area
♦ Detection Area
| Item | Specification | Remark |
| Power Supply | DC 12~80V | |
| Current Draw | Max. 6mA | |
| Working Mode | Lighting Mode/ Detection Mode |
selectable |
| Lighting Mode | Open LED power, and then turn off about 1 second, again open LED power, LED into Lighting Mode. |
|
| Detection Mode |
Open LED power, when the ambient illumination is below 130Lux, LED into Detection Mode. Detection: Bright No Detection(5Min):Faint Light(10%) Faint Light (No Detection 5Min):Dark |
|
| Lights Change | Gradual Change | |
| LED Power | Isolation Drive Power | |
| LED Tube | 12W, 16W, 18W, 20W, 24W | |
| Light Changing Time | 2 seconds | Adjustable |
| Detection method | PIR | |
| Detection Type | Micro Detection | |
| Mounting Height | 2.8~3.5 meters | |
| Detection Area | Ø2.2m @ H 2.2m;Ø3.0m @ H 3.0m |
Adjustable |
| Detection Angle | 52 ° |
|
| Temperature | -20℃~+ 50℃ |
|
| Optical System | Anti UV Dots & Fresnel LENS |
Size: Dia. 50mm Height: 25mm
