Pure Water Filling Line1. Automatic PLC controlling
2. PET Bottle Water
3.Rinser,Filler and Capper 3-in-1
4. CE ISO
Welcome your visit to Zhangjiagang Dingshun Machinery Factory!
Our company specialized in providing complete beverage line machinery for water,juice, carbonated beverage,alcohol and oil.
Pure Water Filling Line
Main Features
1).This Pure Water Filling Line Machines is used to fill PET bottle pure water, mineral water,distilled water and other non gas beverage.
2). This Pure Water Filling Line Machines has the functions of bottle washing, water filling, and bottle capping. This design reduce the time of water contact with outside. It improve the sanitation condition, increase the production capacity and economic efficiency.
3). It adpots hanging type conveying bottle structure to make changing different bottle sizes with less time and more convenient.
4).This Pure Water Filling Line Machines use high quality food grade stainless steel material. All the material contact with water is Stainless Steel 304 (& stainless steel 316L according to customer's demands).
5).The Water Production Line Machines is equipped with advanced PLC controlling system. Key electric elements is from international well-known brand such as MITSUBISHI, OMRON,SCHNEIDER.
6). Filling Capacity 2,000bph to 20,000bph for your choice.
XGF series Pure Water Filling Line Machines model and related information
Model: |
XGF8-8-3 |
XGF12-12-4 |
XGF14-12-5 |
XGF18-18-6 |
XGF24-24-8 |
XGF32-32-10 |
XGF40-40-12 |
Capacity (500ml based) |
2000-3000BPH |
4000BPH |
5000BPH |
8000BPH |
10000BPH |
12000-14000BPH |
16000-18000BPH |
Suitable bottle : |
Round bottle or square bottle |
||||||
PET bottle: (mm) |
(Bottle Diameter):φ50-.φ110mm (Height):150-340mm |
||||||
Suitable cap specification |
PE screw cap |
||||||
Filling precision: |
≤±5mm |
||||||
Filling pressure:(MPa) |
≤0.4Mpa |
||||||
Machine power |
3.13 |
3.75 |
4.4 |
5.2 |
6.2 |
6.8 |
7.8 |
Machine size:(mm) |
1900*1500*2300 |
1900*1500*2300 |
2150*1650*2300 |
2400*1965*2300 |
2680*2200*2300 |
3800*2200*2300 |
4250*3000*2300 |
Weight: (kg) |
1500 |
1800 |
2100 |
3500 |
4500 |
5500 |
6800 |

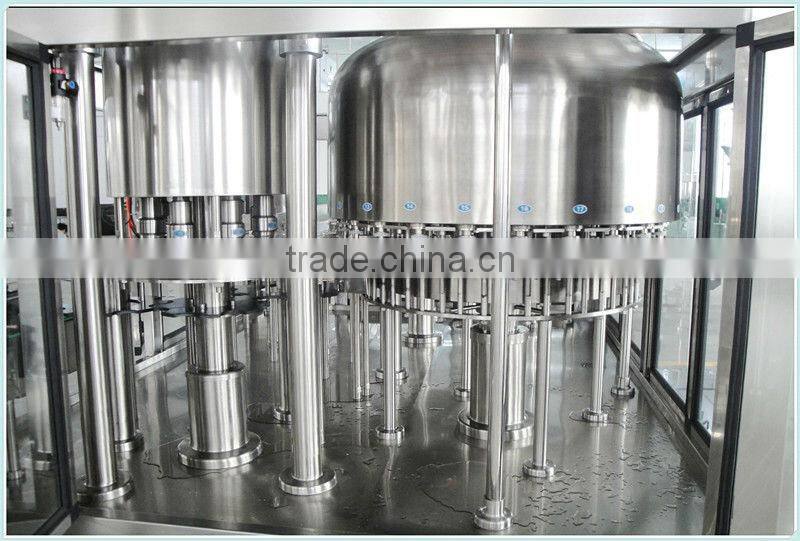

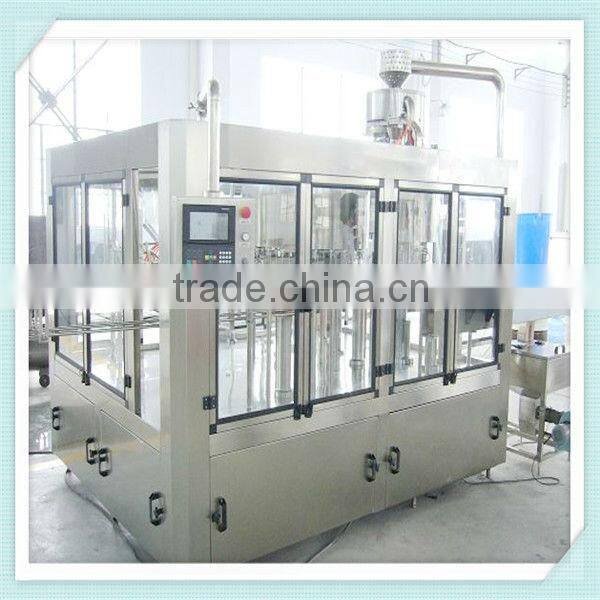

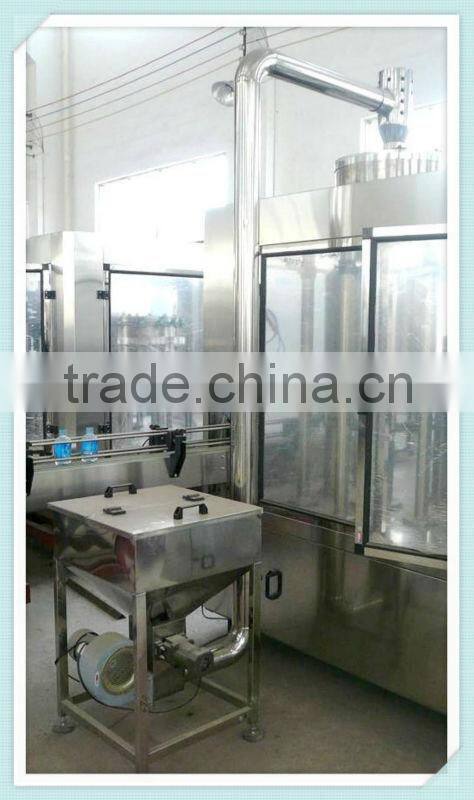

This Pure Water Filling Line Machines parts picture is as below

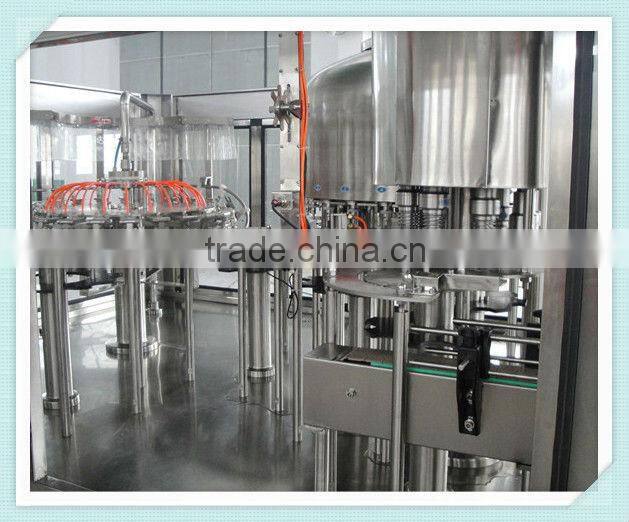

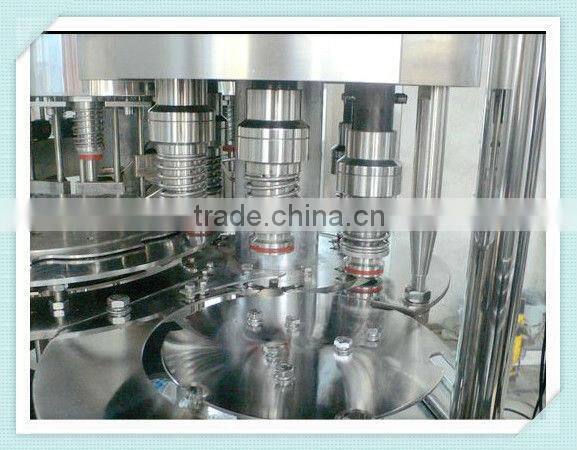

Rinsing Filling Capping

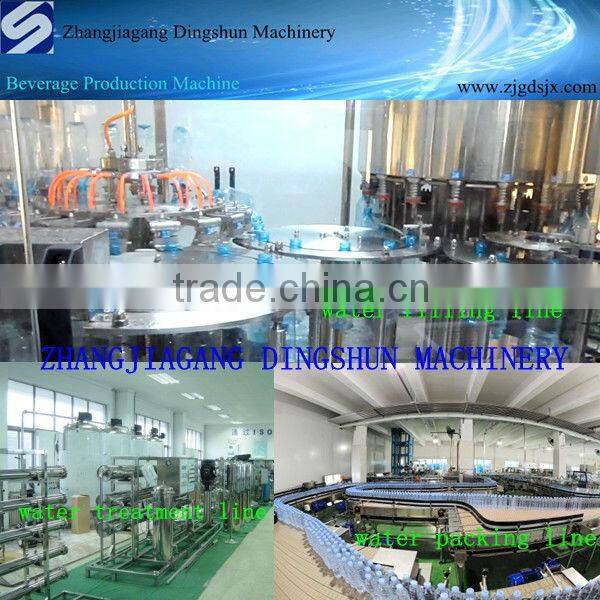

Production on spot
Machine Packing and Loading
Our factory and workshop
Welcome your visit to our factory and build good business relationship with us!
