Welcome your visit to Zhangjiagang Dingshun Machinery Factory!
Our company specialized in providing complete beverage line machinery for water,juice, carbonated beverage,alcohol and oil.

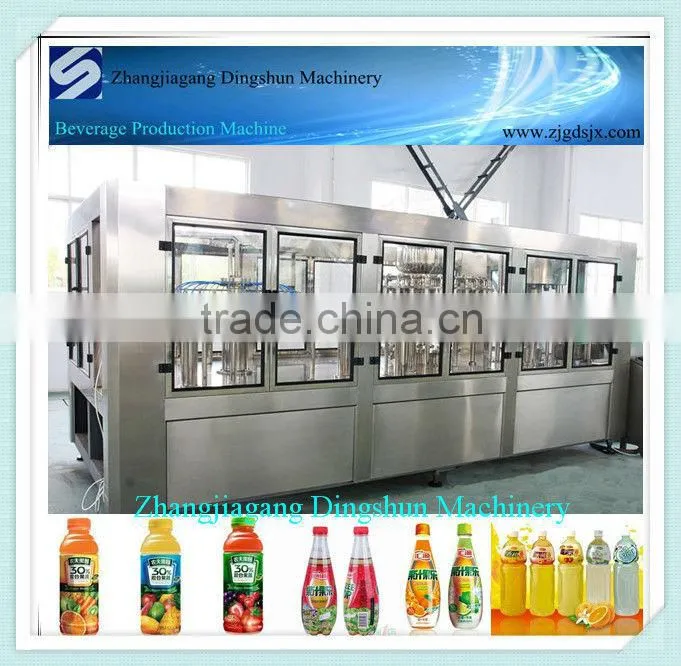

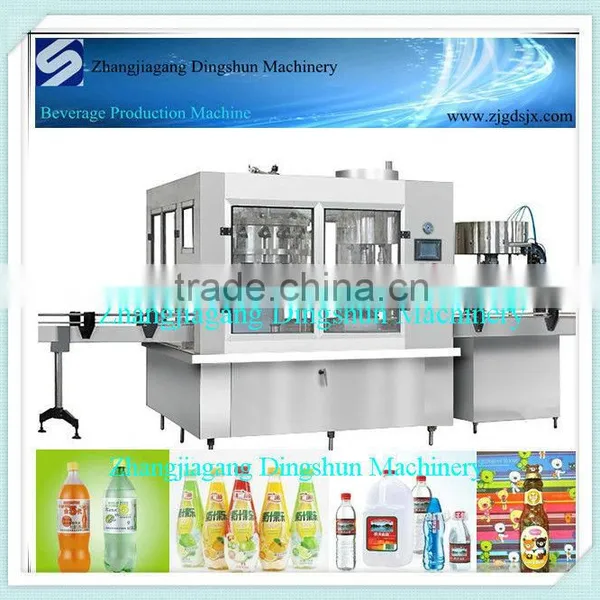

Bottle Juice Filling Capping Machine
Main Features
1).This automatic Juice Filling Capping Machine is used to fill PET bottle Juice, Tea and milk.
2). This automatic Juice filling capping machine has the functions of bottle washing, Juice filling, and bottle capping. This design reduce the time of water contact with outside. It improve the sanitation condition, increase the production capacity and economic efficiency.
3). It adpots hanging type conveying bottle structure to make changing different bottle sizes with less time and more convenient.
4).This automaic Juice filling capping machine use high quality food grade stainless steel material. All the material contact with water is Stainless Steel 304 (& stainless steel 316L according to customer's demands).
5).The whole machine is equipped with advanced PLC controlling system. Key electric elements is from international well-known brand such as MITSUBISHI, OMRON,SCHNEIDER.
6). The bottle juice filling capping machine series machinery Filling Capacity from 2,000bph to 20,000bph for your choice.
7). This Automatic Juice Filling Capping Machine model No. RXGF32-32-10 filling capacity is 10,000-14,000bph.
RXGF series bottle Juice filling capping machine model and related information
Model: |
RXGF12-12-4 |
RXGF14-12-5 |
RXGF18-18-6 |
RXGF24-24-8 |
RXGF32-32-10 |
RXGF40-40-12 |
Capacity (500ml based) |
4000BPH |
5000BPH |
8000BPH |
10000BPH |
12000-14000BPH |
16000-18000BPH |
Suitable bottle : |
Round bottle or square bottle |
|||||
PET bottle: (mm) |
(Bottle Diameter):φ50-.φ110mm (Height):150-340mm |
|||||
Suitable cap specification |
PE screw cap |
|||||
Filling precision: |
≤±5mm |
|||||
Filling pressure:(MPa) |
≤0.4Mpa |
|||||
Machine power |
3.75 |
4.4 |
5.2 |
6.2 |
6.8 |
7.8 |
Machine size:(mm) |
1900*1500*2300 |
2150*1650*2300 |
2400*1965*2300 |
2680*2200*2300 |
3800*2200*2300 |
4250*3000*2300 |
Weight: (kg) |
1800 |
2100 |
3500 |
4500 |
5500 |
6800 |
This XGF32-32-10 bottled water filling machine parts picture is as below

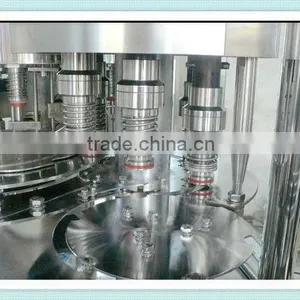

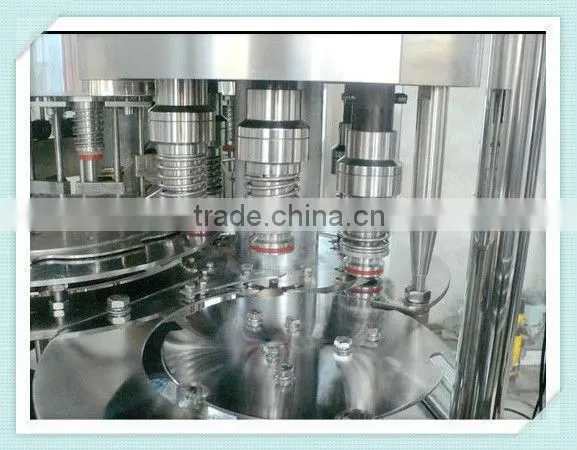

Rinsing Filling Capping

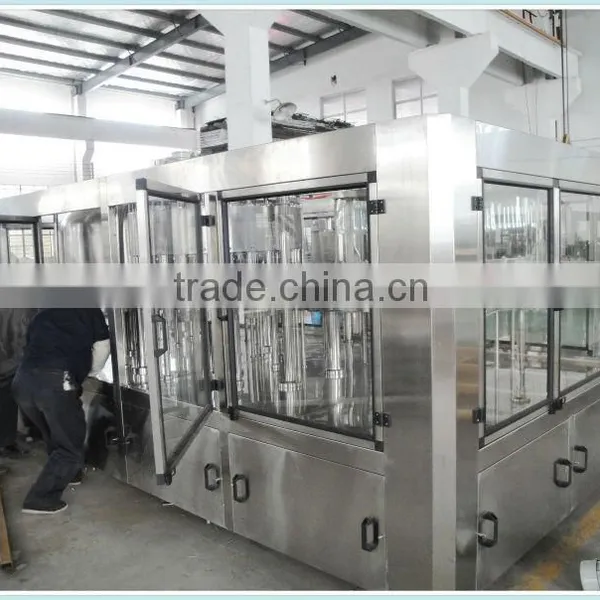

Production on spot
Machine Packing and Loading
Our factory and workshop
Welcome your visit to our factory and build good business relationship with us!
