jiangsu 13mm dual gang rotary a20k sealed potentiometer without switch
- 10000 Piece / Pieces per Month
- SHANGHAI
You May Like
-
jiangsu 13mm dual gang rotary a103 linear potentiometer with plastic bushing
-
jiangsu 13mm rotary 360 degree endless precision sealed potentiometer
-
jiangsu 13mm metal shaft dual gang rotary a20k micro potentiometer
-
13mm high quality dual gang rotary a103 micro potentiometer without switch
-
jiangsu 13mm volume control rotary b503 potentiometer 6 pin with metal shaft
-
13mm dual gang rotary 5k micro potentiometer without switch for guitar
Product Details
| Place of Origin | Jiangsu, China | Brand Name | YH | |
| Model Number | WH120-1B-3P L15 18T | Type | Rotary Potentiometer | |
| Technology | Carbon Film | Resistance | 1k~500k | |
| Resistance Tolerance | ±20% / ±10% | Rated Power | 0.05w | |
| Max. Operating Voltage | 250V AC Curve B:50V AC ;Other curve B:25V AC | Operating Temperature | -10 ~ 60 ℃ |
Product Description
name: jiangsu 13mm dual gang rotary a20k sealed potentiometer without switch

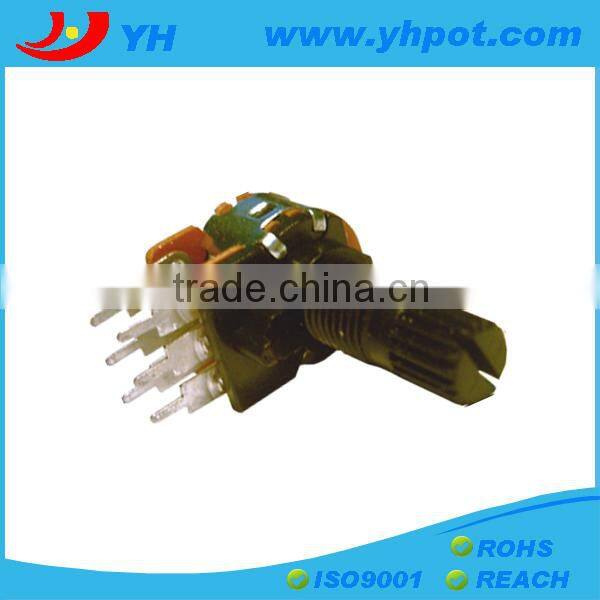

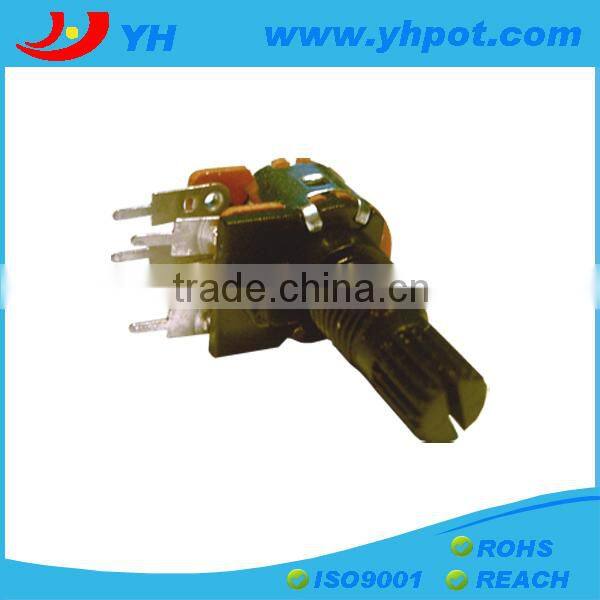

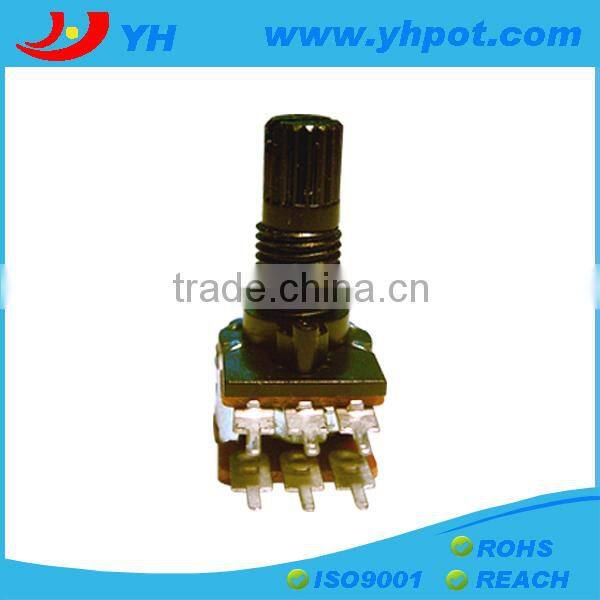

Product display:
Product specifications:
Mechanical specifications: |
|
Total rotation angle: | 300°±10° |
Rotation torque: | 5~25mN.m(50~250gf.cm) |
Shaft stop strength: | 0.4N.m(4Kgf.cm) |
Switch working angle/stroke: | ≤50° |
Click position: | 0/32/40detent |
Switch operating torque: | 50-300gf.cm |
|
|
Electrical specifications: |
|
Total resistance: | 1KΩ~500KΩ |
Resistance taper: | A,B,C |
Resistance tolerance: | ±20% or ±10% |
Rotational noise: | ≤47mV |
Residual resistance: | R≥250KΩ 0.1% max.of totalresistance |
Rotary toque: | 30-200gf.cm |
Rated wattage: | 0.05W |
Switch rating | DC 16V 1A |
Dielectric: | AC300V,1 minute |
Insulation resistance: | ≥100MΩ at DC250V |
Operating Temperature: | -10 ~ 60℃ |
Durability: |
|
Rotary life: | 10,000cycles |
Common problems:
Q: | What is your MOQ of this item? |
A: | 1000pcs. |
Q: | Where is your loading port? |
A: | Shanghai port or other port in China. |
Q: | What is your payment term? |
A: | TT in advance or LC at sight. |
Q: | What is the lead time? |
A: | Normally 15~20 days. |
Q: | What is your company’s available production capacity? |
A: | 35000PCS/day. |
Q: | Could you provide sample? |
A: | Of course,we are glad to provide free sample to you. |
