36 Watt Zinc Alloy 8 Inch Led Retrofit Recessed Downlight

36 Watt Zinc Alloy 8 Inch Led Retrofit Recessed Downlight thumbnail-1
36 Watt Zinc Alloy 8 Inch Led Retrofit Recessed Downlight thumbnail-2
36 Watt Zinc Alloy 8 Inch Led Retrofit Recessed Downlight photo-1
36 Watt Zinc Alloy 8 Inch Led Retrofit Recessed Downlight photo-2
US$ 1 - 100 MOQ: 10 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Epistar, SMD 5630
Warranty(Years):
3 years, 3
Input Voltage(V):
AC85-265V
Contact Supplier Request Quote Chat Now
Zhongshan City Henglan Town Lesdon Lighting Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen port china main land
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar, SMD 5630
Warranty(Years) 3 years, 3
Input Voltage(V) AC85-265V
Lamp Power(W) 36
Lamp Luminous Flux(lm) 3200
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Other, 3000-6000K, 3000k,4100k,6400k
Working Temperature(℃) 20, 40,
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP33
Certification CE
Model Number LSD-DH801-36
Place of Origin Guangdong, China
Brand Name LESDON

36 watt zinc alloy 8 inch led retrofit recessed downlight

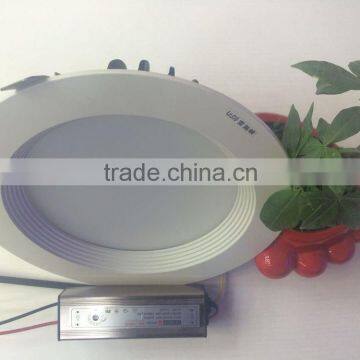

---PICTURE OF PRODUCT---

 36 watt zinc alloy 8 inch led retrofit recessed downlight36 watt zinc alloy 8 inch led retrofit recessed downlight36 watt zinc alloy 8 inch led retrofit recessed downlight

36 watt zinc alloy 8 inch led retrofit recessed downlight

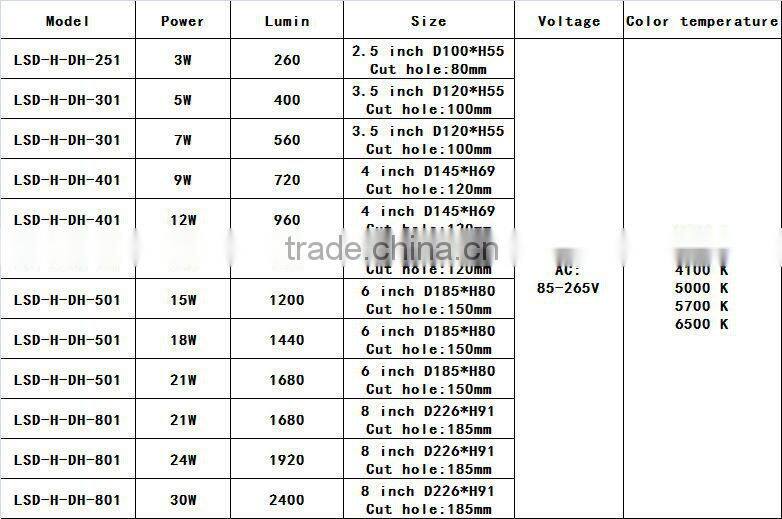

TECHNICAL SPECIFICATION

36 watt zinc alloy 8 inch led retrofit recessed downlight



---DESCRIPTION OF PRODUCT---
10W embeded SMD led downlight aluminum integral enclosure CE ROHS SAA passed
Model DH-801-36w
Power 36w
LED Chip  Taiwan/epsitar
Luminous fluxΦ (lm) 3260
Color render index(CRI)  80
Beam angle 2θ1/2  80-120°
Optical decay rate (%)   <3% within 3000 hours
Lifespan  (Hrs)   ≥40000Hrs
Input voltage(V)   100~ 240 Vac
Frequency scope (Hz)   50/60 Hz
Input current (mA)   900±5%mA
Total consumption (W)

36WATT
Power factor (PF)  0.95
Material  aluminium alloy die-casting
Dimension(mm) 226*226*80mm  ----8inch
hole size(mm)  185mm
working temperature/humidity  -25°C ~ 50°C,10% ~ 90% R.H.
storage temperature/humidity    -40°C ~ 85°C,0% ~ 95% R.H.
Certificates  CE  ROHS



---PACKAGE &DELIVERY DETAIL---

Neutral Packing:PE Bag(shrink wrap)+instruction+Inner box+Outer carton; 12pcs/carton (double craft paper) OEM color boxes or labels packed

36 watt zinc alloy 8 inch led retrofit recessed downlight

Delivery :3-5 days for sample orders, fast delivery for bulk orders

36 watt zinc alloy 8 inch led retrofit recessed downlight

---APPLICATION OF PRODUCT---

  36 watt zinc alloy 8 inch led retrofit recessed downlight

  1. Utra-low light degradation in full compliance with the quality of the U.S.Energy Star requirements, the use of 25,000 hours of their luminous flux rate remained at 70% or more.
  2. Using single-crystal core lamp beads, the light flux than the integrated chip beads 40% higher, and easier to distribute heat, more long-life lamp beads.
  3. Good thermal structure design, the chip heat can be fully released, life of lamp beads up to 50,000 hours~80,000 hours.
  4. Using high-brightness LED beads to achieve true high brightness, low power.
  5. Drive power with the world’s top brand IC power management, performance, safe, stale, reliable, and the driving voltage is in AC 85V~260V, to meet the global over use, so that in this voltage range lamps no flicker; low noise; Power factor is on the average more than 95%
  6. Light body with high-quality aluminum alloy, so that the heat can achieve the overall effect.
  7. With PMIMA optical lens, light and color purity, to avoid the glare.



36 watt zinc alloy 8 inch led retrofit recessed downlight

---WARRANTY---

( 36 watt zinc alloy 8 inch led retrofit recessed downlight ) 36 months from the manufacturing date.

---OUR SERVICES---
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributorship is offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.

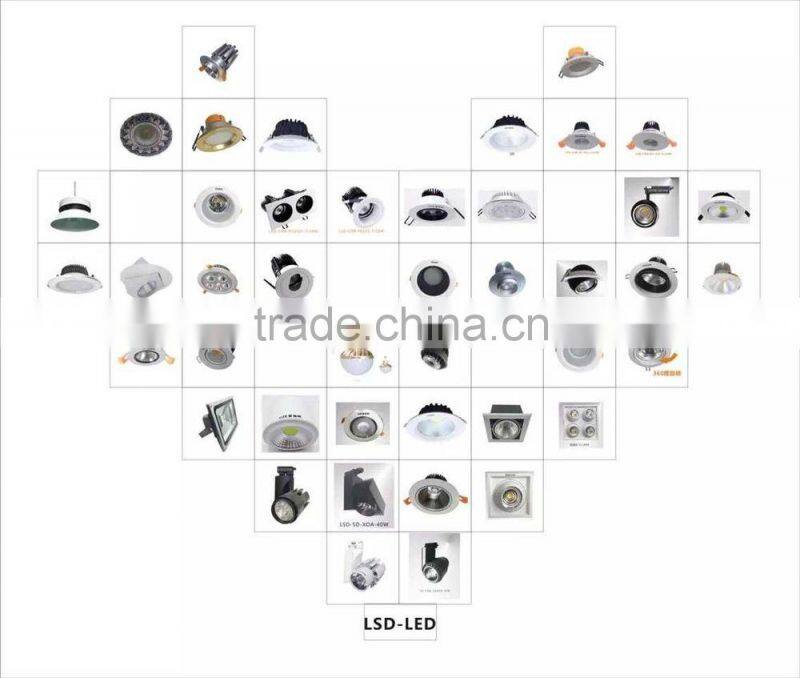

---OTHER PRODUCT---

 36 watt zinc alloy 8 inch led retrofit recessed downlight

Payment:T/T,30%deposits before production,70% balance to be paid beforedelivery.

Discount are offered based on order quantities.

MOTTO:Today i will do what others won't,(we acept small orders)

So tomorrow i can do what others can't.(we can get big orders)

---INTRODUCTION OF COMPANY---

36 watt zinc alloy 8 inch led retrofit recessed downlight

---LESDON BRAND IN CHINA---

36 watt zinc alloy 8 inch led retrofit recessed downlight

---OUR COMPANY VIEW---



 36 watt zinc alloy 8 inch led retrofit recessed downlight



---WHY CHOOSE US---

  1. After years of development, and product testing, the quality of our products is very good.
2. We have several job shop, independent development and self-marketing, from the production casing and drive, all has the strict examination to the assembly.
3. Long-term and foreign clients face-to-face communication let us know what customers need, what kind of product can bring benefit to customer.
4. We help customers to order, the container, the first-class service to clients.

---WELCOME TO CONTACT US---

36 watt zinc alloy 8 inch led retrofit recessed downlight

---Win-win cooperation---

We hope you can make money from the sale of our products, we have earned high praise from you.

Wish we have a good start, and a happy cooperation.
