lighting garden bollard 12mm round magic color pixel led
Long thin or flat square back
ws2811/ws2801/P9813/16716 rgb led pixel

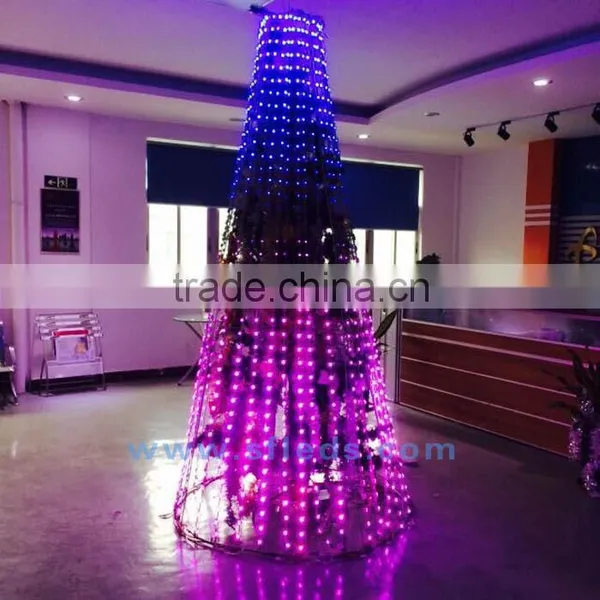

We offer pixels for for Christmas Decor
Features:
The led lamp diameter is 12mm, punching 12mm hole

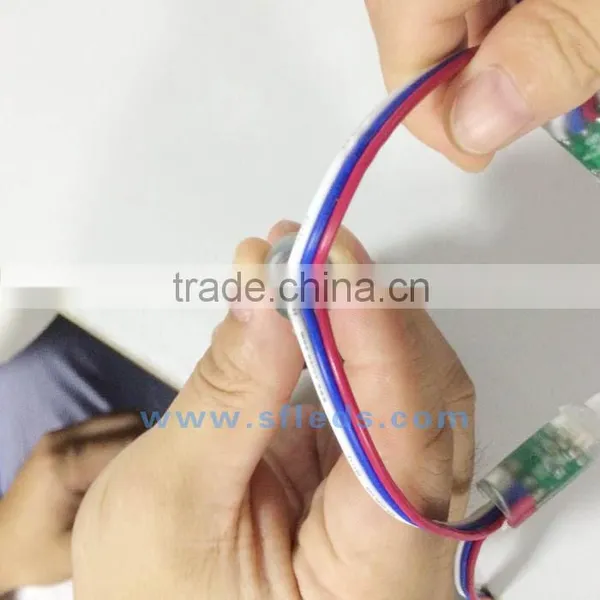

It’s cuttable.
According to the signboard hanging height, the distance between lamps should be within 5-8cm.
This lamp use special optical lens, high light transmittance. protect chip from moist, Unti-UV, thermostability, cold-resistant, anti-corrosion, and anti,acid-base, etc, more longer life time.
Operation Instructions:
50pcs of each string, 3A/string. User can use paralleling for multiple strings, each string running a loop, to avoid the nonuniform color which caused by the voltage drop, the thickness of power cord should not less than 2.5mm2.
Keep it in a well-ventilated environment, which good for heat dissipation.
The Green wire is data, Red wire connect with positive pole on the power supply, yellow wire connect with negative pole and controller’s GND port, green wire is connect to controller DAT port. Do not reversal.
Specification:

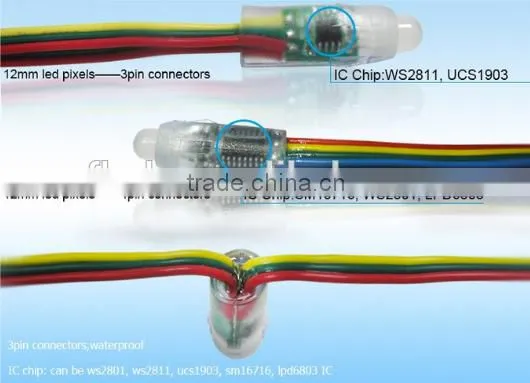

| TYPE | 3PIN connectors | 4PIN connecyors |
| Poroduct Name | 12mm round led pixel | 12mm round led pixel |
| IC Chip | WS2811, UCS1903 | SM16716, WS2801, LPD6803 |
| LED Chip | Epistar F8mm Dip LED | Epistar F8mm Dip LED |
| Wires | DAT, GND-, DC5V+ | DAT, CLK, DC5V+, GND- |
| Waterproof | full silicon glue | full silicon glue |
| Voltage | dc5v | dc5v |
| Watts(/pcs) | 0.3w | 0.3w |
| Warranty | 2 years | 2 years |
| Certification | CE, RoHS | CE, RoHS |

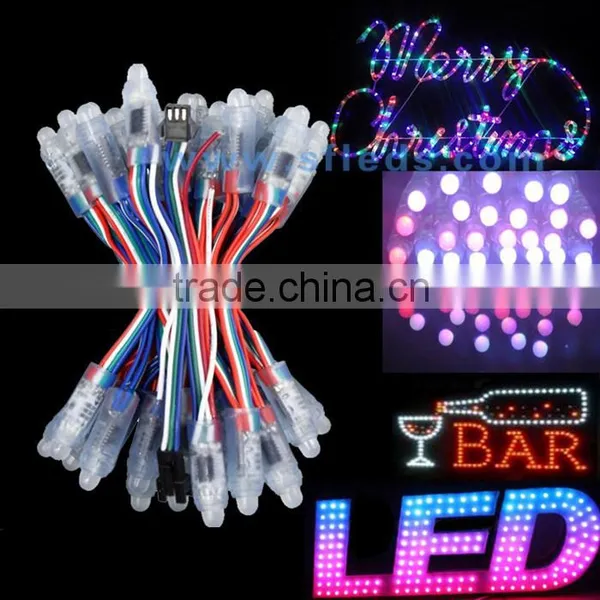

Products Applications:
1.Channel letter backlighting
2. Spurts draws light
3. Advertisement sign light
4.Indoor and outdoor illumination
5.Architectural decorative lighting
SPI signal: LED pixel +LED power supply +LED controller
DMX control: LED pixel+LED pwer supply+DMX Controller+DMX decoder
LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino
We also have ws2801 12mm, if you need please feel free to contact us.
The pixels are connected by a 4-conductor cable. +5V (Red), Ground (Yellow), Data (Green) and Clock (CLK).
Data is shifted down from one pixel to the next so that you can easily cut the strand or
attach more onto the end.
(If there were any changes,we would inform our customers in advance.)
Color Cable definition
Please note: DAT wire,CLK wire,GND wire are generally connected to SD Card or IR Remote controller
at the same time.
DC5V and GND wire is connected to power supply.If any changes,we will inform in advance.
Small Tips:
Each dot is digitally controlled, with an internal 8-bit PWM LED driver (24-bit color for 16 million different shades).
The pixels must be clocked by a micro-controller.
Of course,different type of micro-controller comes with different numbers of cables.
Attn: IC micro-controller WS2811 comes with 3 cables,while ws2801,16716,9813,6803,all of which come with 4 cables.
Not so complicated,what you only do is to know the colorful cables’definition.Use your head to hook up together
as we told you.
The pixels use 8mm diffused RGB LEDs, with a 120 degree beam width.
The total max brightness of all LEDs is about 1600mcd but with the light more evenly distributed
& mixed than a clear LED.
(Please note: mcd ratings of LEDs are notoriously inflated by most LED sellers, so be extra-skeptical when reviewing LED ratings!)

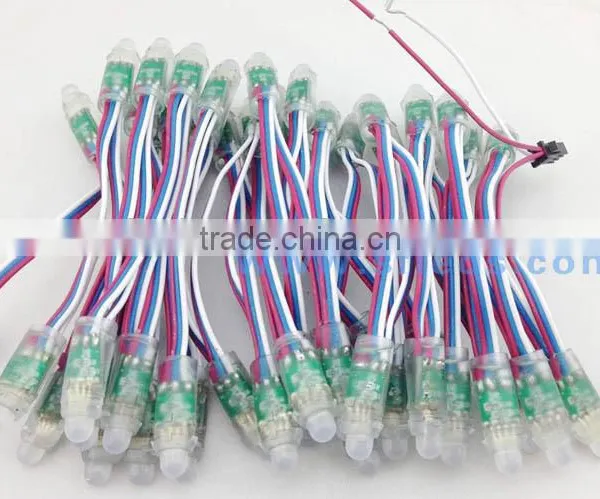

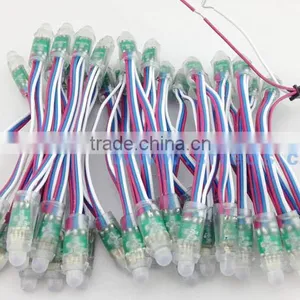

Sold by the strand, each strand has 25/50 pixels(or custom pixels/strand) in series!
Each strand has two 4-pin connectors so you can connect multiple strands in a row,
as many as you wish, just watch for how much current they want.
We have a 5V/10A supply that can drive up to 160 LEDs all lit up at once

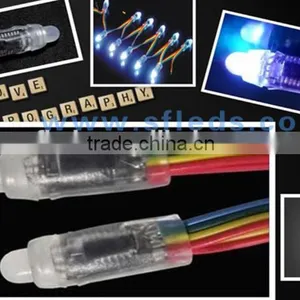

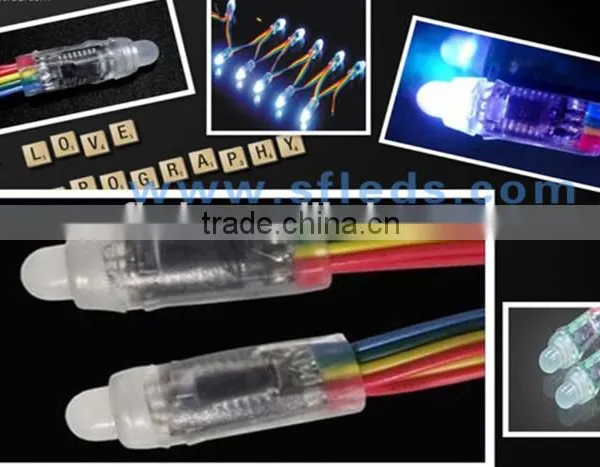

2.The Images of 12mm diffused digital Rgb Led Pixel Poi.
3.Be careful to the difference in input and output side below
(Data Input on the side without IC chip,the other is output)
4.Two ends with male and female connectors.
New Product:
full color apa102 led strip
