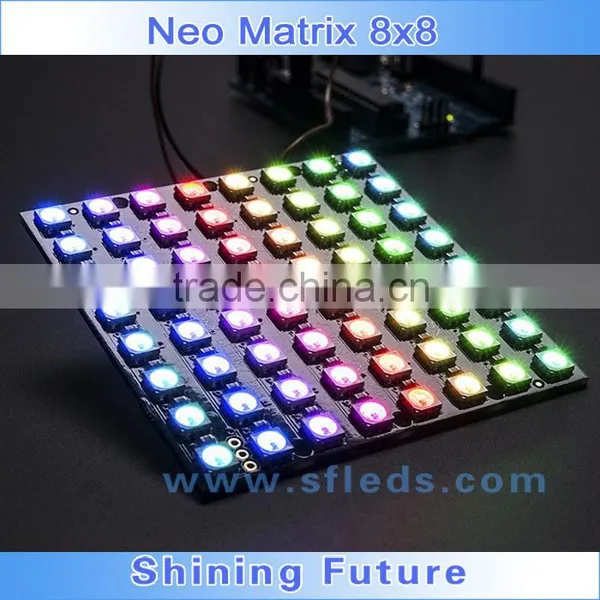

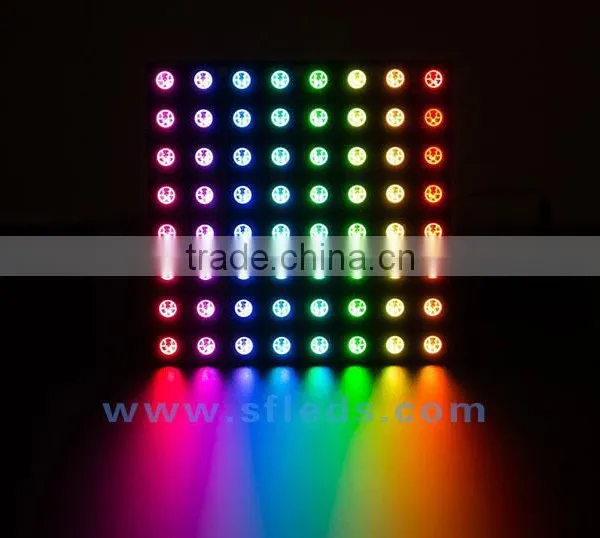

cjmcu 64 bits ws2812 bordo 5050 rgb led neonpixel rgb matrix led
8x8,16x16,32x8 Flexible LED Pixel Screen RGB Display,DC5V WS2812B SMD 5050 Full Color Indoor LED Advertising Display Screen
Come on,sfleds is the best choosing for you!
Description:
Pixels WS2812 led digital flexible panel light(WS2811 IC controlled)
Work with the programmable SD controller(not included), it can make flexible LED screen
Arduino IC Digital Addressable Dream Color RGB LED Strip
Arduino compatible.You can control the strip by your programmable arduino.
Technology advantages
The WS2812 SMD5050 RGB LED, every led built-in(embedded) an WS2811 IC,, therefore every one led lignting effect can be control, every rgb led is digital addressable.
Easy installation
Every one LED lamp can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bending.
Dream color lighting
Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect,
you can also edit animation effect by Coreldraw/Flash/LedEdit software.
Application
Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company, the city lighting project, entertainment and leisure places lighting.
1. Emitting color: pixel RGB , IC WS2812
2. Work voltage: DC 5V
3. Power: 0.3W/pixel
4. waterproof level: Non-waterproof
5. Working mode: external controller Arduino compatible.
6. Connection: VCC: RED; GND:BLACK; DAT:GREEN
Show pictures:
No. |
Symbol |
PIN |
Function Description |
1 |
+5V |
Power |
5V power supply |
2 |
DIN |
Data Input |
Input the control signal |
3 |
GND |
Ground |
Earthing |
4 |
DOUT |
Data Output |
Output the control signal, and connect to next panel’s DIN |
Color |
Model |
Wavelengthnm |
luminous intensitymcd |
operating voltage |
Blue |
13CBAUP |
465-467 |
180-200 |
3.0-3.4 |
Green |
13CGAUP |
522-525 |
660-720 |
3.0-3.4 |
Red |
10R1MUX |
620-625 |
390-420 |
2.0-2.2 |
T0H |
Code 0, High level |
0.4µs |
±150ns |
T1H |
Code 1, High level |
0.8 µs |
±150ns |
T0L |
Code 0, Low level |
0.85µs |
±150ns |
T1L |
Code 1, Low level |
0.45 µs |
±150ns |
RES |
Low level |
>50µs |
|
Connection Method:
| LED Quantity | 256 |
| IC Type | WS2812 (IC Built in LED) |
| Wattage | 78.6W/M |
| Pixel/m | 16*16 |
| PCB Width | 16*16cm |
| Length of cable | 100mm |
| Working Voltage | DC 5V |
| PCB Color | black |
| Light Color | Multi-Color, digital RGB,Every LED individual Contro |
