365 nm uv led in UV curing glue
Specifications
1. Wavelength:365nm
2. Optical power: 840-920mW
3.Viewing angle:120 degrees
Specification:
365nm is a UVLED lamp beads specialized research and development for high-end flashlight, not only narrowed the light angle, and energy is more concentrated. When 500mA driving current, optical power can reach 700mW, is currently on the market the same grade products UVLED most cost-effective products.

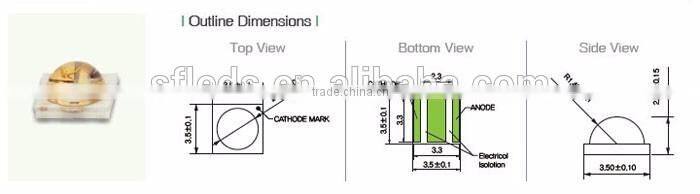

Outline Dimension of 365nm uv led(mm):
ceramic substrate design, better heat dissipation, lamp beads do thermal separation, thermal effects better and live longer.
Application list of UVLED :
Optical sensors and instruments (230-400nm)
UV authentication, barcode (230-280nm)
Surface water sterilization (240-280nm)
Detection and identification and analysis of body fluids (250-405nm)
Medical sterilization (254-280nm)
Protein analysis and drug discovery (270-300nm)
Medical light therapy (300-320nm)
Polymers and inks (300-365nm)
Multinational paper money sorter (365-375nm)
Leak (look for tiny cracks) (365-375nm)
Distinguishing (375-395nm)
Counting Detector (375-395nm)
Photocatalyst technology (375nm-400nm)
Surface sterilization / Beauty sterilization (390-410nm)
Nail (nail polish / light therapy cure) (nail polish: 395nm; extend phototherapy A: 360-370nm)
