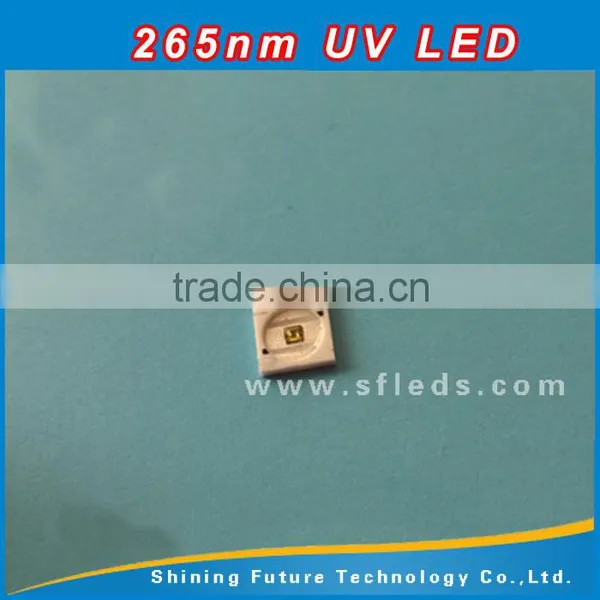

Water Disinfection High Efficiency 265 nm Germicidal UVC LED
Specifications
SMD5050 265nm UV LED For sterilization:
Optical output power: 0.2-0.5mW
Wavelength : 265nm
Viewing angle:140 degree
Specification of 2655nm uv led
| Part number | Dimensions | Wavelength | Optical power | Forward voltage | Forward current | Viewing angle | Application |
| sfleds-UV265-5050C-A | 5.0*5.0*1.0 | 265nm | 0.2-0.5mW | 5.5-8.0V | 20mA | 140deg. |
Sterilization for surface/water/air Fluorescence for detecting |

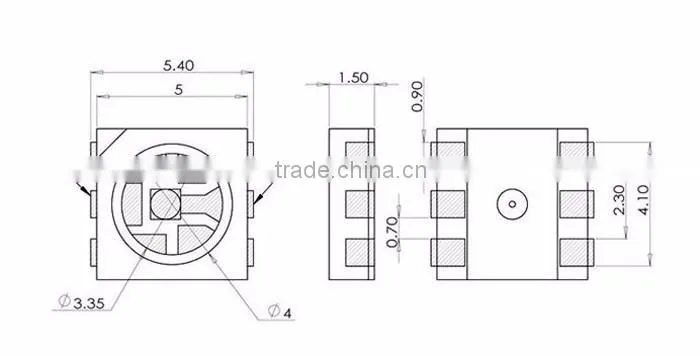

Outline Dimension of 265nm uv led(mm):

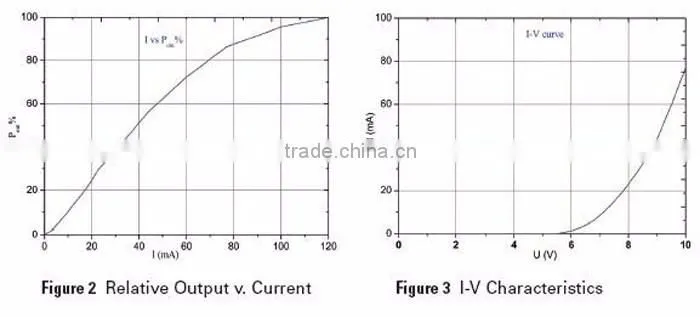

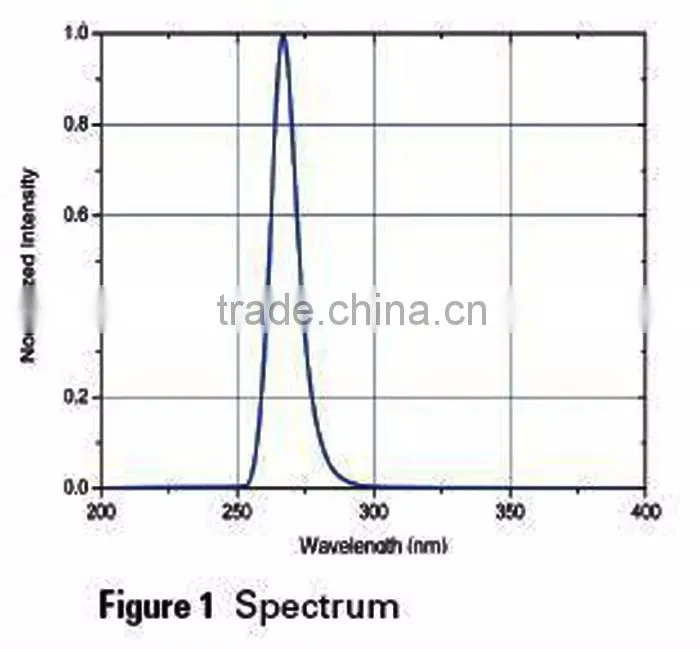

Electro-optical Characteristics (T=25°C;IF=20mA)

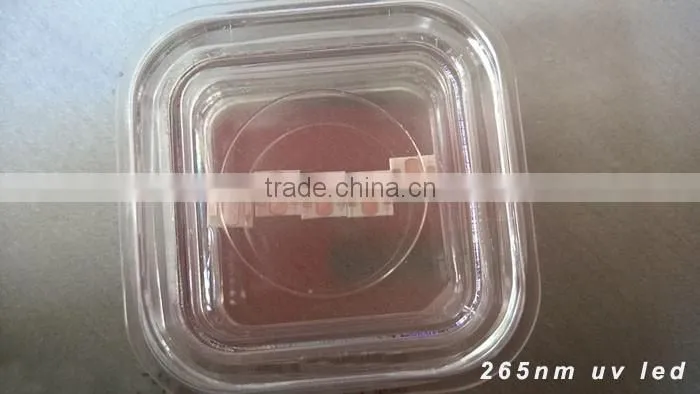

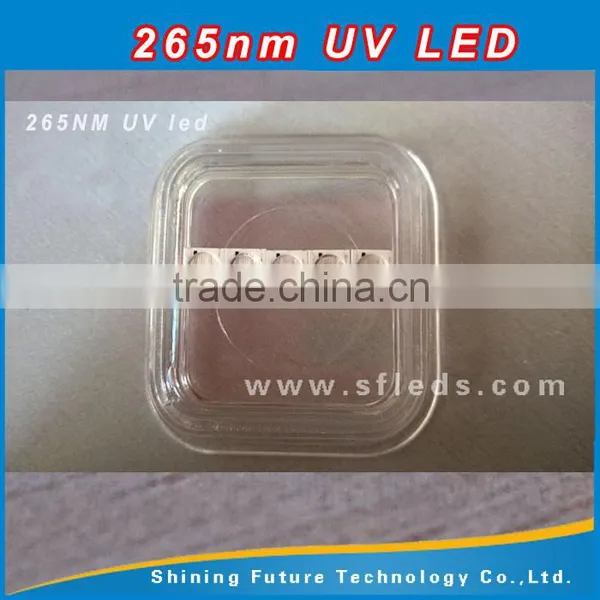

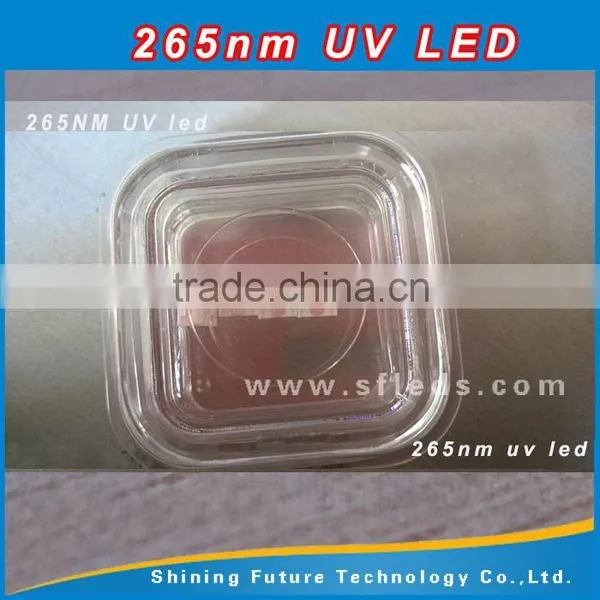

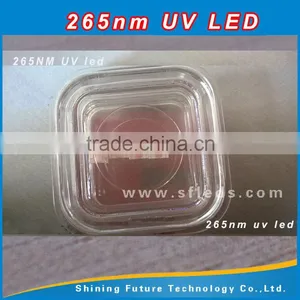

Packaging:

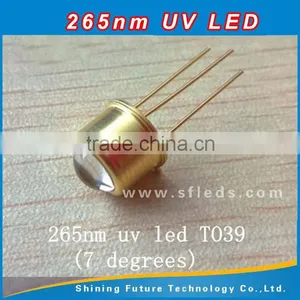

More uv led:
Application list of UVLED :
Optical sensors and instruments (230-400nm)
UV authentication, barcode (230-280nm)
Surface water sterilization (240-280nm)
Detection and identification and analysis of body fluids (250-405nm)
Medical sterilization (254-280nm)
Protein analysis and drug discovery (270-300nm)
Medical light therapy (300-320nm)
Polymers and inks (300-365nm)
Multinational paper money sorter (365-375nm)
Leak (look for tiny cracks) (365-375nm)
Distinguishing (375-395nm)
Counting Detector (375-395nm)
Photocatalyst technology (375nm-400nm)
Surface sterilization / Beauty sterilization (390-410nm)
Nail (nail polish / light therapy cure) (nail polish: 395nm; extend phototherapy A: 360-370nm)
