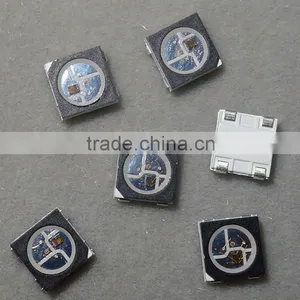

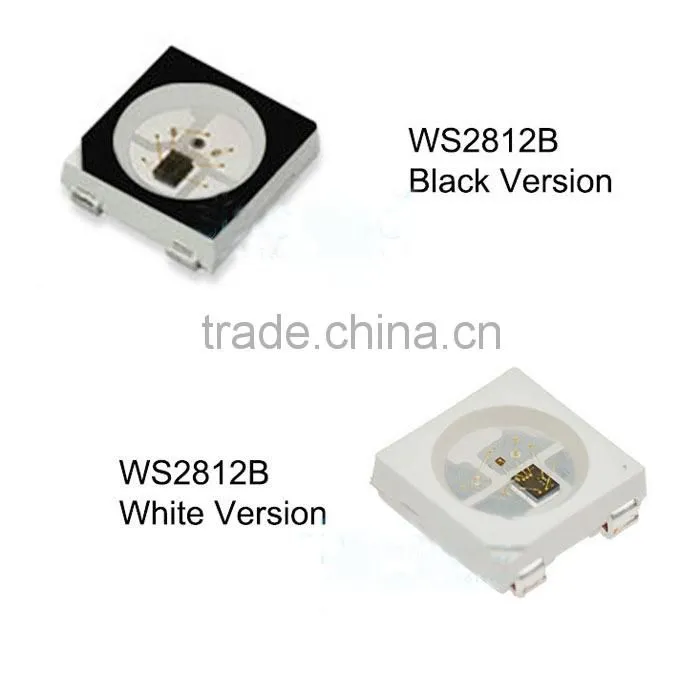

ws2812b SK6812 adressable full color RGB 5050 LED with black frame;with built-in chip
DC5V input, 4pins WS2811 ic embedded
Model: 5050RGB + WS2811IC = WS2812
Input voltage: DC5V

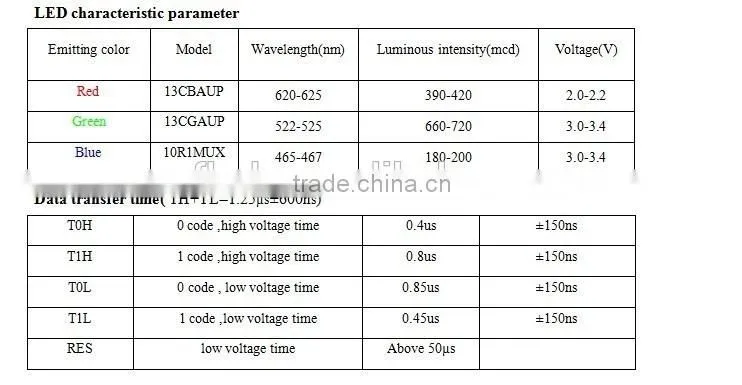

Wave length(NM):R-650nm, G-520nm,B-460nm
Power:0.24W/PC
Signal: WS2811 chip
View angle:120 degree
Life span:no less than 50000hrs
Applications
Full-color module, Full color soft lights a lamp strip.
LED decorative lighting, Indoor/outdoor LED video irregular screen.

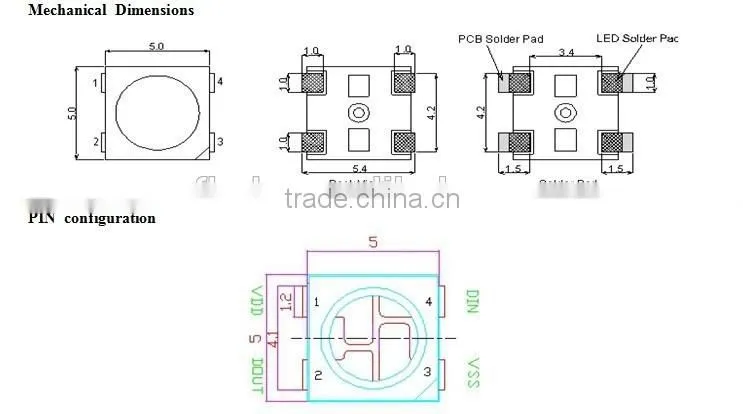

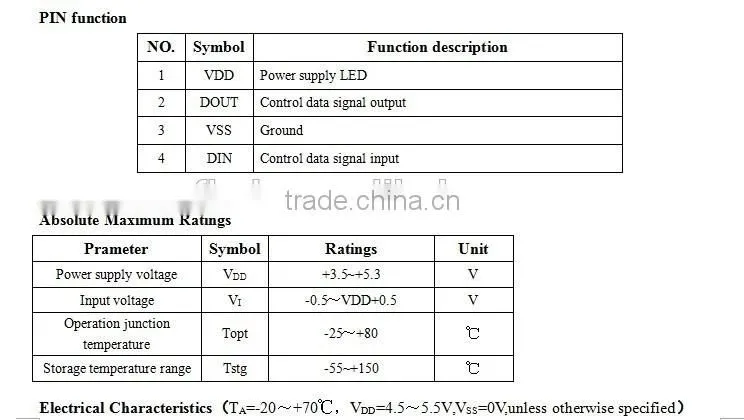

PIN function
NO. |
Symbol |
Function description |
1 |
VDD |
Power supply LED |
2 |
DOUT |
Control data signal output |
3 |
VSS |
Ground |
4 |
DIN |
Control data signal input |
Absolute Maximum Ratings
| Prameter | Symbol | Ratings | Unit |
| Power supply voltage | VDD | +3.5~+5.3 | V |
| Input voltage | VI | -0.5~VDD+0.5 | V |
| Operation junction temperature | Topt | -25~+80 | |
| Storage temperature range | Tstg | -40~+105 |
General description:

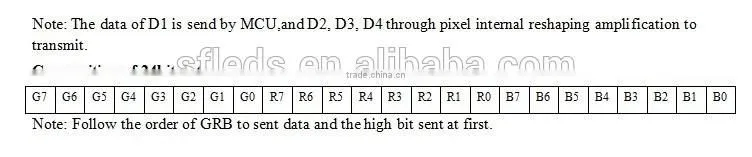

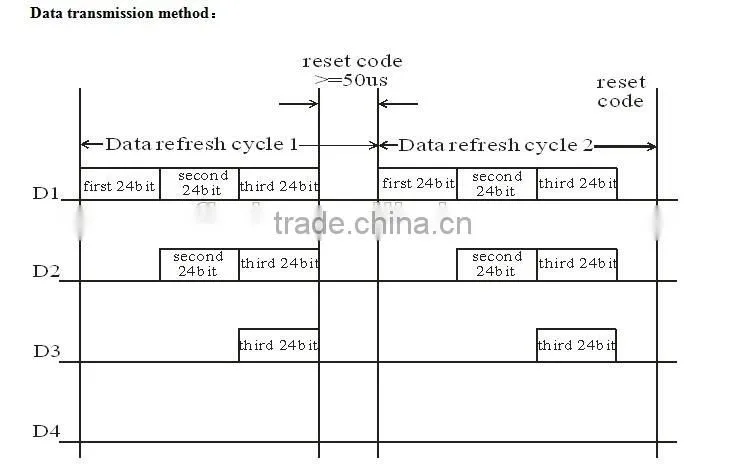

WS2812B is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drivecircuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.The data transfer protocol use single NZR communication mode. After the pixel poweron reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel,the signaltoreduce 24bit. pixel adopt auto reshaping transmit technology, making the pixel cascade number is not limited thesignal transmission, only dependon the speed of signal transmission.
LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.
| LED Driver IC Type | Package Type |
| WS2801(DIP14) | DIP-14 |
| WS2801(SOP14) | SOP-14 |
| WS2803(DIP28) | DIP-28 |
| WS2803(SOP28) | SOP-28 |
| WS2811(DIP8) | DIP8 |
| WS2811(SOP8) | SOP8 |
| WS2812S | WS2811IC Embedded in 5050LED(6 Pins) |
| WS2812B | WS2811IC Embedded in 5050LED(4 Pins) |
| WS2821SOP8 |
SOP8 |
