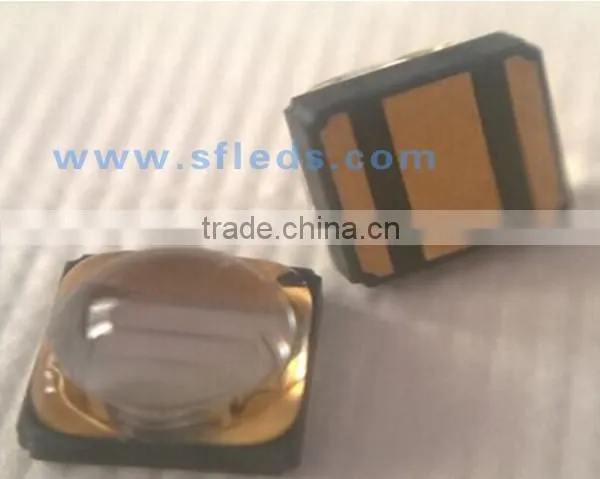

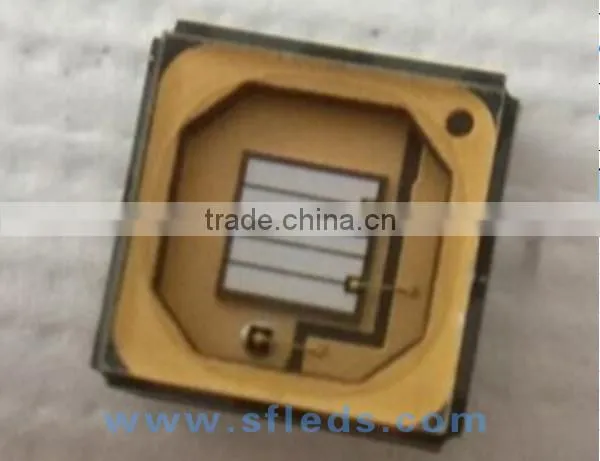

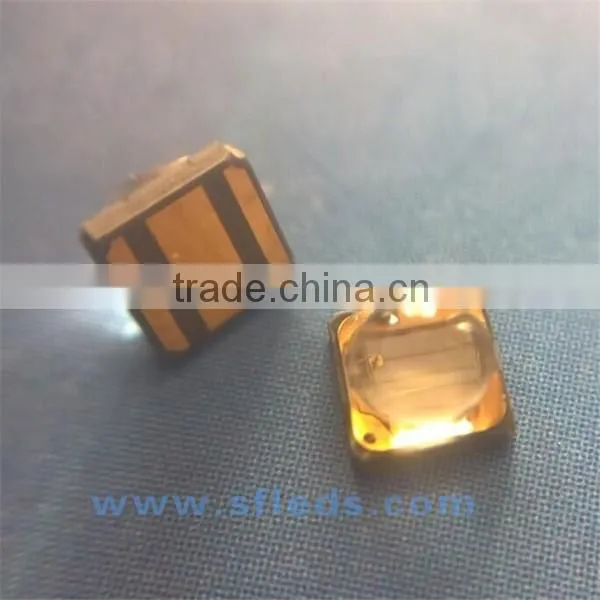

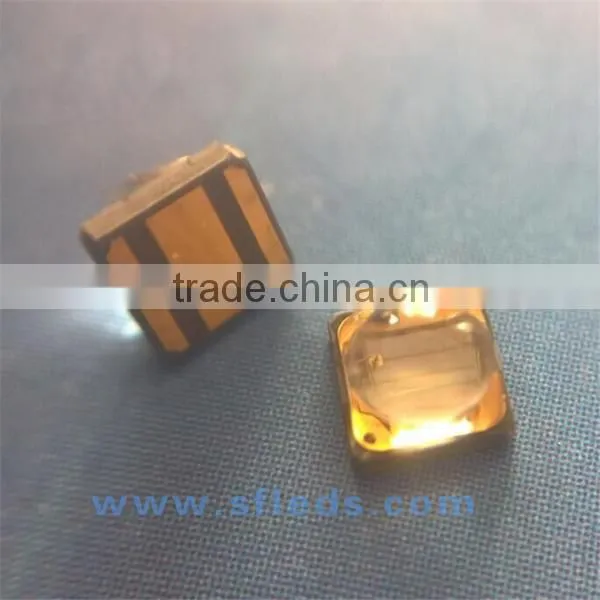

Detection Application SMD 3535 High Power 365nm UV LED 3W
US$ 0.1 - 12.39
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
sfleds
Model Number:
sfleds-UV365T3WA-3535-B
Payment & Shipping
Payment Methods:
Port of Shipment:
shenshen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Disinfection Uv-c 254nm Germicidal LED 275 nmUS$ 11.91 - 12.39MOQ: 100 Pieces -
Apa102 2020 Smd Led for Three Channels RGB Color EmittingUS$ 0.18 - 0.181MOQ: 1000 Pieces
-
4x3W 12W RGBW Full Color High Power Led Diodes (45x45mil)US$ 0.1 - 1.14MOQ: 500 Pieces
-
20mm MCPCB Star With 4x 3watt LED Dies Rgb Led EmitterUS$ 1.04 - 1.14MOQ: 100 Pieces
-
SMD3535, Silicone Touch the Top 500mA 395nm uv Led for uv CuringUS$ 10.96 - 11.23MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
sfleds
Model Number
sfleds-UV365T3WA-3535-B
Type
LED
Package Type
Surface Mount
Max. Forward Voltage
3.0-4.6V
Max. Reverse Voltage
N/A
Max. Forward Current
500mA
Max. Reverse Current
N/A
Detection Application SMD 3535 High Power 365nm UV LED 3W
Electro-Optical characteristics at 500mA of 365nm UV LED
| Product Model: | sfleds-UV365T3WA-3535-B |
| Peak wavelength: | 365±5nm |
| Forward Current: | 500mA |
| Forward Voltage: | 3.0-4.6V |
| Radiated Power: | 690-1000mW |
| Viewing Angle: | 120° |
| Spectrum Half Width: | 9nm |
| Thermal Resistance: | 8.9 °C/W |
Absolute Maximum Ratings of 365nm UV LED
| Forward Current: | 500mA |
| Junction Temperature: | 50 °C |
| Operating Temperature: | -10 ~ +85°C |
| Storage Temperature: | -40 ~ +100°C |

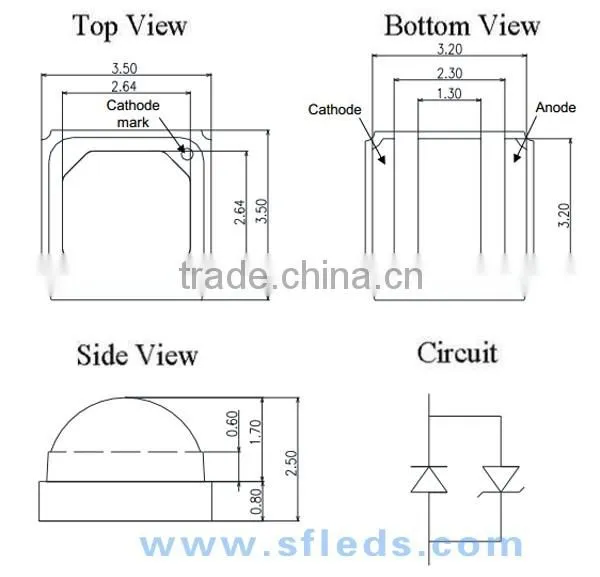

Outline Dimensions of 365nm UV LED
Notes :
[1] All dimensions are in millimeters.
[2] Scale : none
[3] Undefined tolerance is ±0.2mm
Relative Spectral Power Distribution
Features of 365nm UV LED
- Super high poweroutput
- Designed for high current operation
- Low thermal resistance
- SMT solderable
- Lead Free product
- RoHS compliant
Applications of 365nm UV LED
- UV Curing
- Printing
- Coating
- Adhesive
- Counterfeit Detection/Security
- UV torch
- Fluorescence Photography
- Dental Curing
- Crime Inspection
- Oil Leak Detection
Description of 365nm UV LED
High power UV LED series are designed for high operation and high power output applications.It incorporates state of the art SMD design and low thermal resistant material.Our 365nm UV LED sfleds-UV365T3WA-3535-B is ideal UV light source for curing ,printing,and detecting applications.
Relative UV LED
Packaging & Shipping
Packaging: 1000pcs reel
