Ultraviolet 250nm 254nm 260nm 265nm 270nm 275nm 280nm 285nm 290nm 300nm 310nm UVA UVB SMD 3535 UVC LED Chip
275nm UVC LED(UV275A-3535) is a deep ultraviolet light emitting diode with peak emission wavelengths from 270nm to 285nm.The LED is sealed in full aluminum packages with a choice of UV-transparent optical window. It incorporates state of the art SMD design and low thermal resistance.
Specification:
| Item NO.: | Peak Wavelength: | Forward Current: | Forward Voltage: |
Radiated Power: |
| UV275A- 3535 | 275±5nm | 20mA | 5.0-7.0V | 1.6-2.5mW |
| Viewing Angle: | Spectrum Half Width: | Operating Temperature: | Storage Temperature: | Working/Storage Ambient Humidity: |
| 130 ° | 12nm | -30 ~ +60 °C | -40 ~ +100°C | 0-80% |
1. Absolute Maximum Ratings at TA = 25°C
|
|
|
|
Unit |
Max |
|
|
|
Input Power |
mW |
200 |
Operation Current (CW) |
mA |
20 |
Operation Current(Pulsed <5μs, 1kHz) |
mA |
100 |
|
|
|
Operation Temperature |
°C |
-30~+60 |
Storage Temperature |
°C |
-40~+100 |
Humidity (for non-hermitically sealed |
% |
0~ 80 |
LED) |
|
|
Pulse Operation |
(100mA, 1KHZ, Duty Cycle is 5%) |
Can |

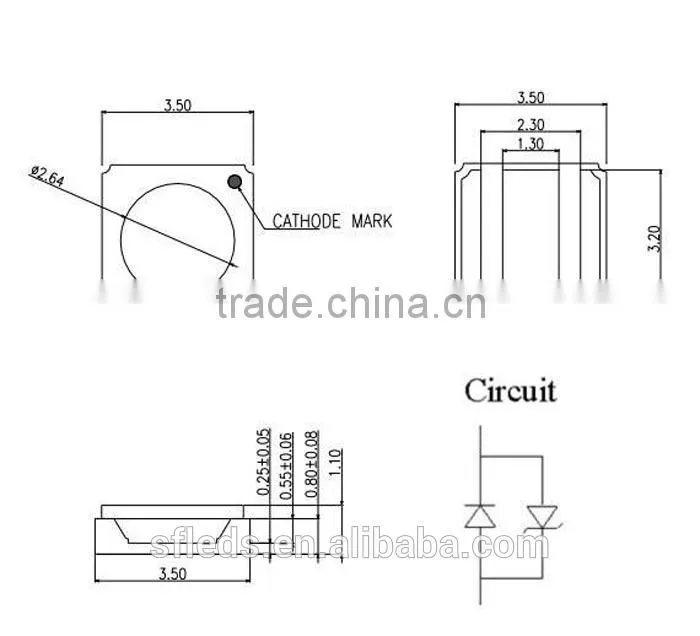

Notes :
[1] All dimensions are in millimeters.
[2] Scale : none
[3] Undefined tolerance is ±0.2mm
275nm UVC LED is designed for water sterilization,air disinfection and food sterilization etc. Directly UV LED light on food with plastic wraps can efficiently kill bacteria, mould and even virus and extend shelf life of food. 275nm UVC LED can be applied on products like refrigerator, disinfection cabinet etc.
Application:
• Disinfection and sterilization
• Fluorescent spectroscopy
• Chemical and Biological analysis
Features of 275nm UVC LED:

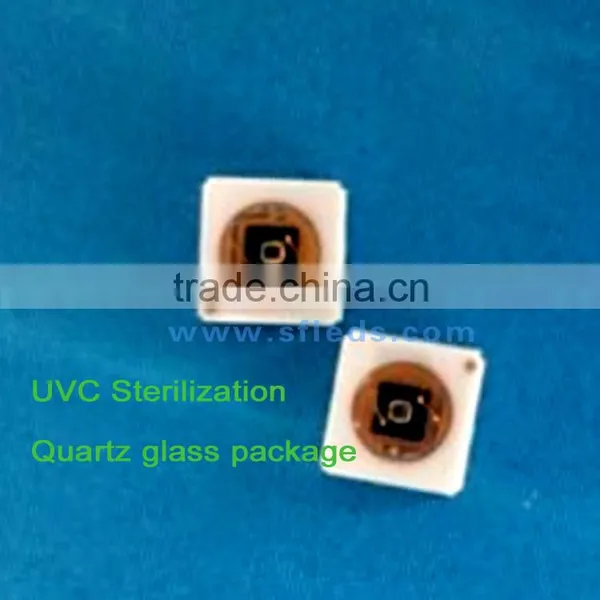

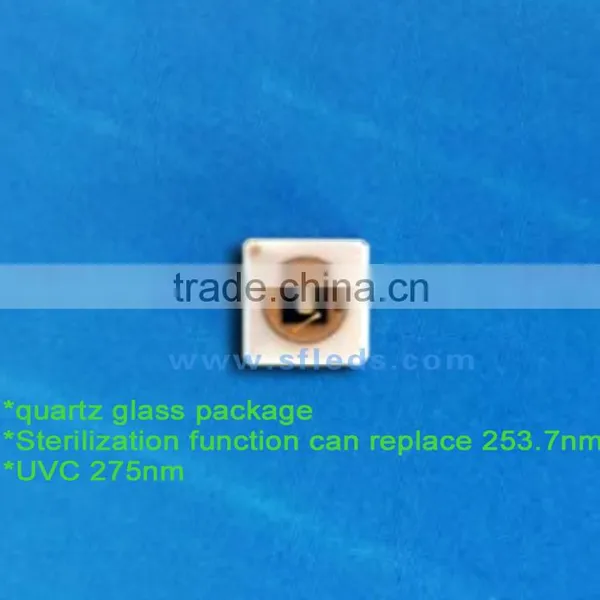

* Quartz glass lens
* High optical power

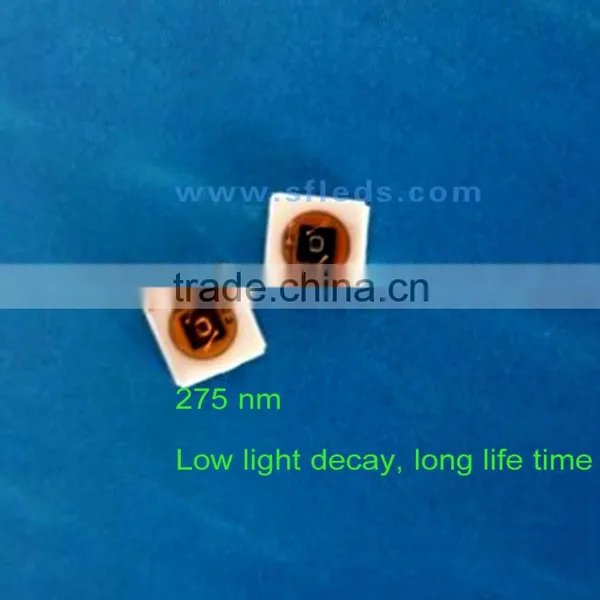

* Low light decay ,5000 hours aging test (IF=20MA, room temperature),Light 50%
*Stable production capability
* Deep ultraviolet LED
* Low thermal resistance
* SMT solderable
* Lead Free product
* RoHS compliant

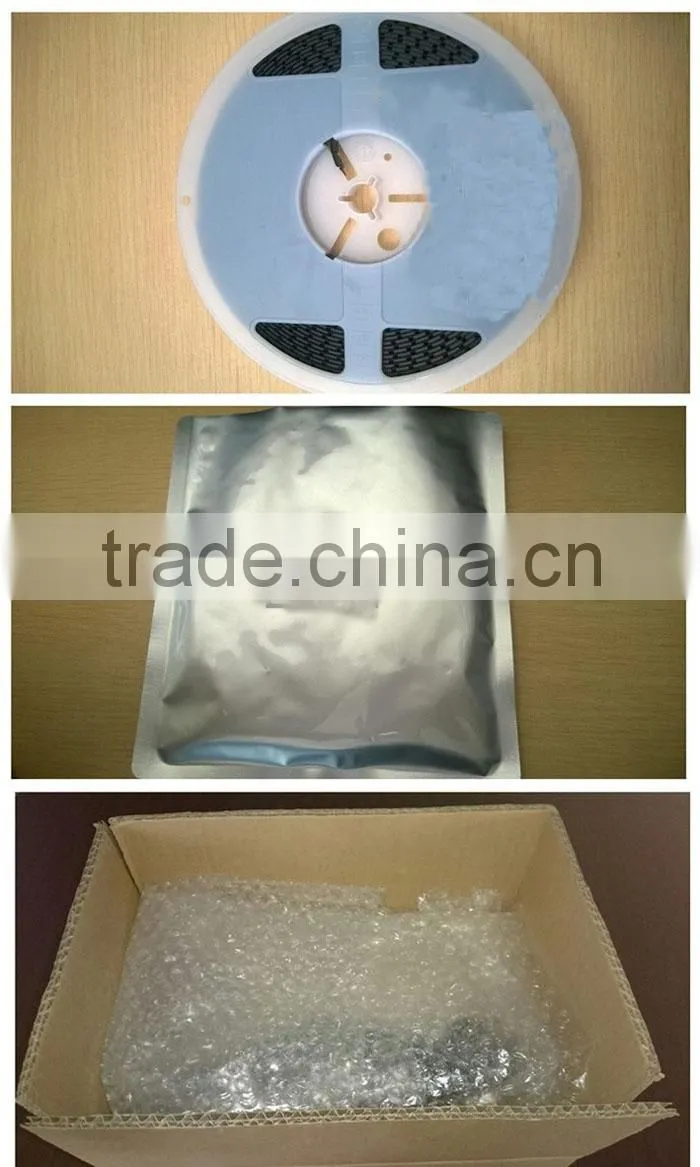

Packaging: 1000pcs reel
