US$ 0.1 - 9.9 MOQ: 5 Meters
Key Specifications
Get Latest Price
LED Light Source:
APA102 color changeable led strip light
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen Shining Future LED Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source APA102 color changeable led strip light
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 86.4
Lamp Luminous Flux(lm) 1800
Color Temperature(CCT) 2000-9000K
Working Temperature(℃) -20, +60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CCC, CE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name sfleds
Model Number APA102

ic ws2811 high density addressable led strip ws2812b rgb led pixel string 144leds/meter with ce rohs approval

What we can make:

APA102 APA104 DMX UCS9812,lPD8806,WS2811,WS2801,TM1809,HL1606,IPD6803,UCS1903,

About APA102 LED STRIP , We have ,30,32,60,72,144leds per mete



Product Specification:

Items

Parameter

IC Type

APA102

LED Type

5050 SMD RGB LED

Work Voltage

DC5V

LED Number

72pcs 5050 SMD RGB LED each meter, 288LEDs/roll

IC Number

72pcs APA102 IC per meter, 288IC/roll

Strip Length

4m/roll

Grey Scale

256

PCB wide

12mm

PCB Color

White PCB

IP Grade

non-waterproof IP20

Power

21.6W/m, 86.4W/roll

Cuttable

every LED can cut

Temperature

-40-60°C

lifespan

50000hours

View angle

120°C















































Support Controller:

T-1000S-C(T-1000S controller C version) SD card pixel controller.



Advantage

1. Gold Supplier, good service and competitive price.
2. Good high brightness SMD5050 LED.
3. Low voltage for human safety, energy-saving.
4. Soft and flexible strip, Waterproof, non-waterproof both can do and durable .
5. On any surface can be any shape, of widly applicability, easy to install and maintain .
6. Environmental friendly: Low carbon, no radiation, no flicker, and no harm to human and environment.

7. Cuttable every LED+IC along the mark, 1led/cut

8. Every 3LEDs individually controlled

9. Can show customized effects

10. Support online control

11. Long lifetime for 50,000hrs

12. CE and RoHS approved

13. 2years warranty



Different Version APA102 LED Strip:

                                 APA102 LED Strip
          LED QTY/M             IC QTY/M          Input Voltage
             30LED               30IC               DC5V
                60LED                   60IC                  DC5V
             72LED               72IC               DC5V
             120LED               120IC               DC5V
             144LED               144IC               DC5V



Notice:

1. Please use DC5V only;

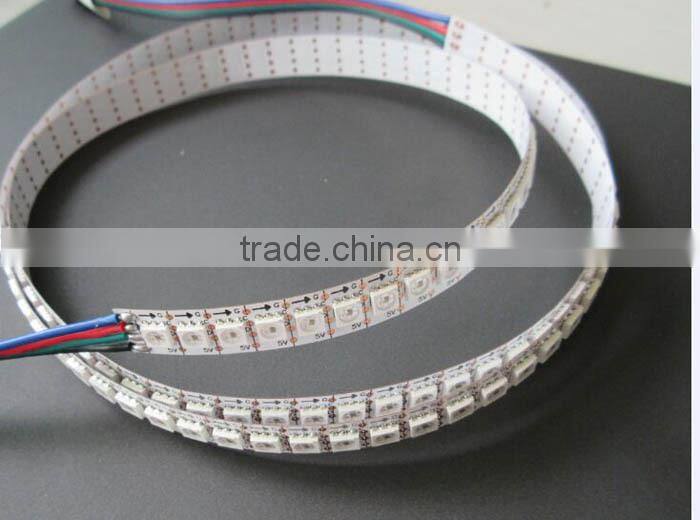

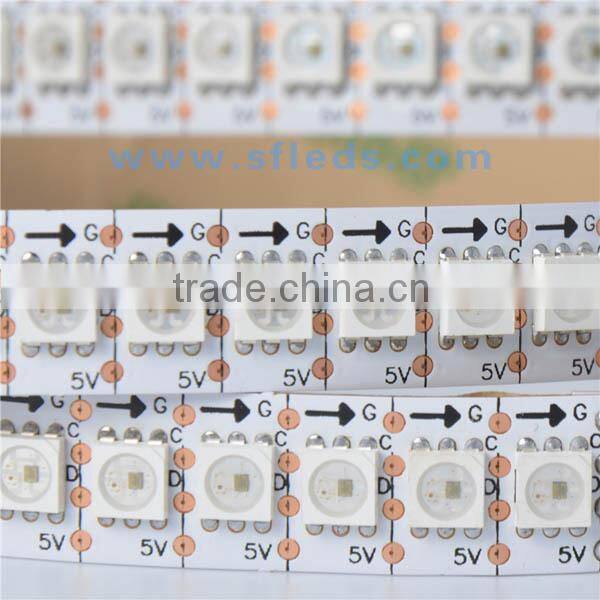

2.There are direction arrows on the PCB, arrow direction for connecting next reel strip;
3.GND not only for power wire, also as signal wire, need connect to both power and controller;
4.The Max distance between strips is 5m-10m, need use amplifier when more than 10m;
5.Every 5m strip need re-connect to power supplier, avoiding voltage drop;
6.Keep the surface of installation place clear and smooth, avoiding the strip fall off. DO NOT press the LED;
7.DO NOT attempt to make sharp bend with the strip;
8.DO NOT install where water or high humidity may be present without further protection;
9.Away from strong acid or strong alkali.



ic ws2811 high density addressable led strip ws2812b rgb led pixel string 144leds/meter with ce rohs approval

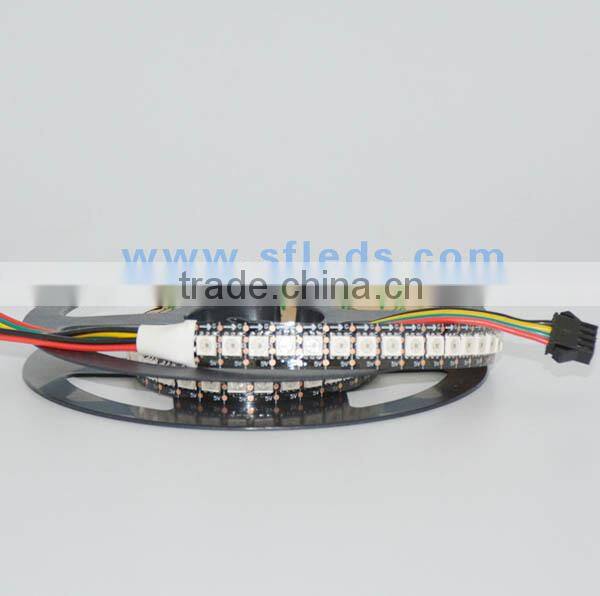

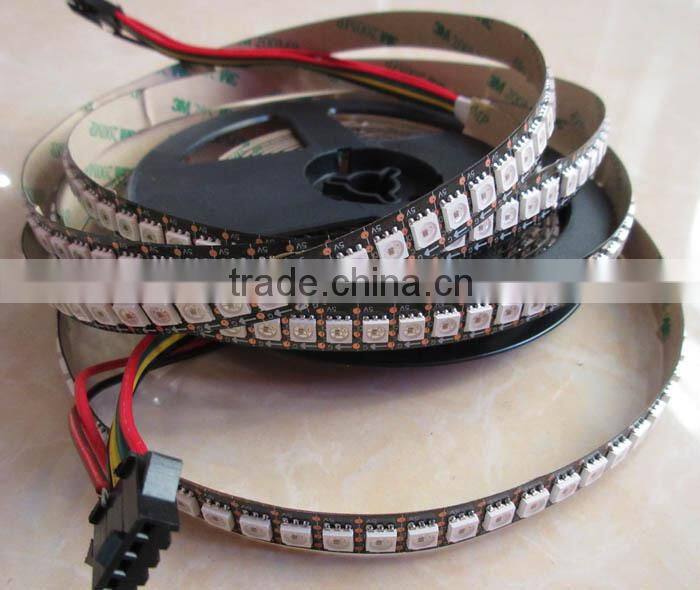

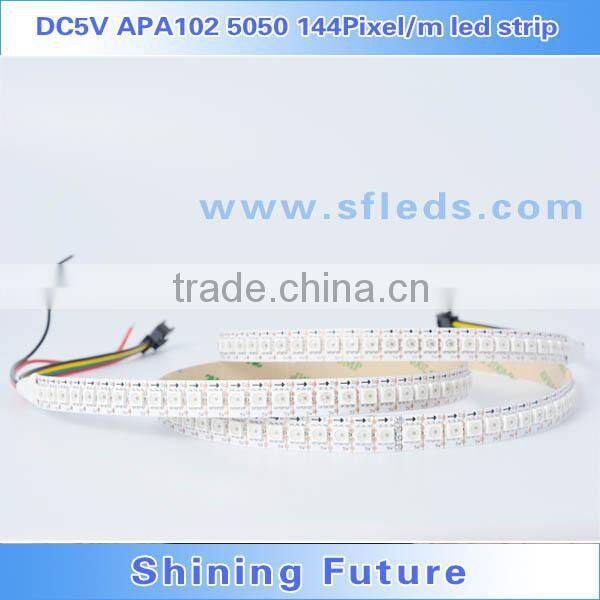

APA102 IC built-in SMD5050 LED, cause IC built-in LED save much space, we could put more LED each meter, as more as 144LED per meter.

ic ws2811 high density addressable led strip ws2812b rgb led pixel string 144leds/meter with ce rohs approval

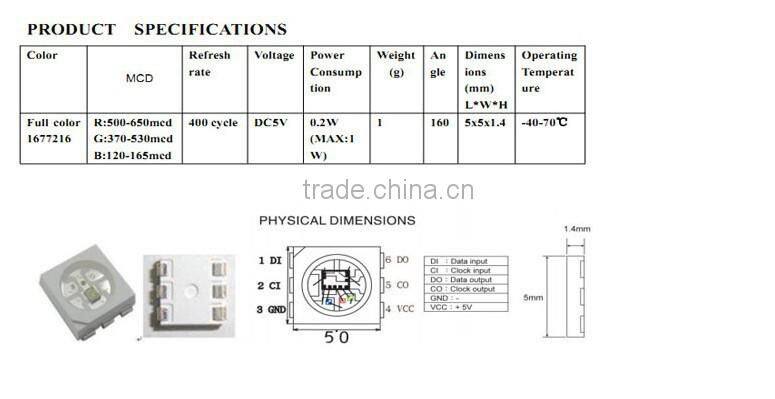

There are four wires for APA102 LED, input wire, DAT wire, CLK wire, GND wire, it is different with WS2812 or UCS1903 LED.

ic ws2811 high density addressable led strip ws2812b rgb led pixel string 144leds/meter with ce rohs approval

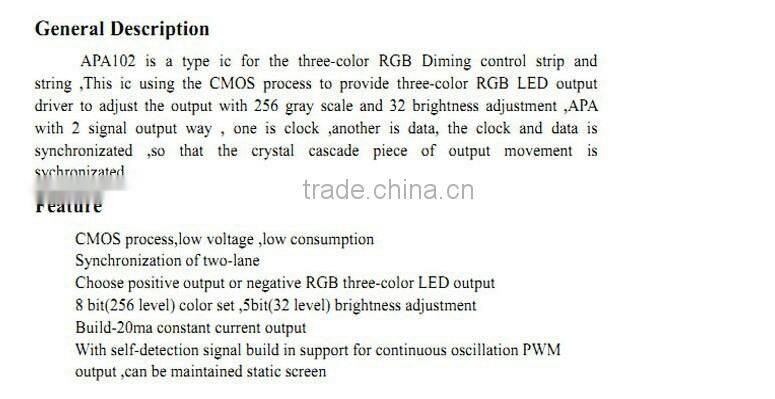

 One APA102 IC control one LED, each LED individaully control.

ic ws2811 high density addressable led strip ws2812b rgb led pixel string 144leds/meter with ce rohs approvalic ws2811 high density addressable led strip ws2812b rgb led pixel string 144leds/meter with ce rohs approval

ic ws2811 high density addressable led strip ws2812b rgb led pixel string 144leds/meter with ce rohs approvalic ws2811 high density addressable led strip ws2812b rgb led pixel string 144leds/meter with ce rohs approvalic ws2811 high density addressable led strip ws2812b rgb led pixel string 144leds/meter with ce rohs approval

digital led strip

New Product:

4mm 5mm sk6812/ws2812b led strip
full white apa102 led strip
rgbw sk6812 led strip

Other Related Digital Led Product:
full color apa102 led strip
full color apa104/ws2812b led strip
full color ws2811 led strip
full color 6803 led strip
ws2812b neon pixel ring
ws2811 led bullet pixel led
pixel panel screen for display


ic ws2811 high density addressable led strip ws2812b rgb led pixel string 144leds/meter with ce rohs approvalic ws2811 high density addressable led strip ws2812b rgb led pixel string 144leds/meter with ce rohs approval

ic ws2811 high density addressable led strip ws2812b rgb led pixel string 144leds/meter with ce rohs approvalic ws2811 high density addressable led strip ws2812b rgb led pixel string 144leds/meter with ce rohs approvalic ws2811 high density addressable led strip ws2812b rgb led pixel string 144leds/meter with ce rohs approval
