Z-wave Flood leak sensor for smart home system

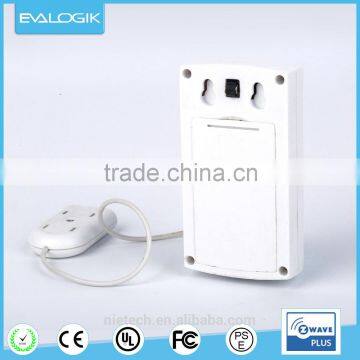

This device is an accessory of the Z-Wave system and enable alert/monitor system when water leak detected , easy installation, works with z-wave controller. ZW104 is a wireless, battery powered sensor, its two parts the sensor's body and a probeconnected.

Technical data

*Battery Operation: AAA * 3pcs (battery life 1 year)

*Range: Min 30m line of sight

*Sensitivity level sensor, 0.8mm perceived level

*Operating temp: 0~40 ℃
*Working Voltage: 4.5V

*Net weight: 50g
*Dimensions(L*W*H): 78*42*16mm

*Frequency:868.4MHz/865.2MHz/869.2MHz/908.4MHz/921.4MHz

Installation

1. First, add ZW104 to ZE200 controller or others, it must be in range of the controller, because the procedure of add to the ZE200 requires direct communication with the controller.

2. Set controller to “Add” mode, quickly pressing learn switch three times (the button is also the anti-packing switch).

3. After correct “Add” it to ZE200 controller it will be signaled by ZE200.

4. For “Remove” from a network: set up the Z-wave interface controller into “Remove” mode, and following its instruction to delete the ZW104 from your controller. Press the learn switch of ZW104 for 1 second at least &release to be excluded.

5.Use double EVA or screws to fix ZW104 on the Door/Window two sides, pls. be note correction position of the sensor and the magnet (dot-to-dot).

6.Re-setting ZW104: Remove the battery, touch the senor’s body with magnet,re-install battery, trigger ZW104 one time, and reset will be confirmed by LED blink.
