Seek Agent Jinan 4Axis ATC Spindle CNC Router 3D CNC Engraving Machine Wood Working Machinery for sale
Application of Wood Cutting Machine
The machine is strong function,easy to use,durable performance.Applicable to process three-dimension wave board,computer table and chair,screen stencil,art windows,wood furniture,acrylic,PVC board,sign plate and plastic molding in high efficiency,and also can process many metal and non-metal materials such as iron,copper,aluminum,plastic plate,wood etc.
Features of Wood Cutting Machine
♦With hard steel structure, fit for hard wood working, like cutting and engraving on rosewood for furniture, indoor decoration.
♦With the Vacuum holding way and dust collector, the machine is qualified for mass-producing of furniture.
♦We use the best quality parts for the CNC routers.
♦The machine’s body is strong, rigid, high precision, reliable and durable.
♦Imported high precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.
♦Wellknown domestic brands of water cooling brushless spindle, low noise, strong cutting ability, to ensure the long time working.
♦High-performance driven motor to ensure that the machine high speed and accuracy.
♦Designer perfectly, select the best machine accessories, to minimize the failure rate preferred.
SPECIFICATION |
MS1325AC |
|
Working Area (X Axis) |
1300mm |
|
Working Area (Y Axis) |
2500mm |
Clearance (Z Axis) |
200mm (300mm optional) |
Spindle |
HSD 9.0KW ATC spindle |
Spindle Speed |
Adjustable 0-18,000 rpm |
Tool Change |
Manual Tool-Change |
|
Drive System (X & Y Axes) |
Helical Rack & Pinion |
|
Drive System (Z Axis) |
Taiwan ball screw, 20mm |
Drive Motors |
4 sets Japan Yaskawa servo motors |
Inverter |
Delta |
Motor&Driver |
Yaskawa servo motor & driver |
Command |
G code |
Cutter diameter |
φ3.175-φ12.7mm |
Maximum Travel Speed |
35m/min |
Table Top |
Grid/vacuum table tops with absorption function |
Vacuum pump |
5.5kw water cooled |
Controller |
Syntec Control |
Power Requirements |
3-phase 380V/50HZ, 220V optional |

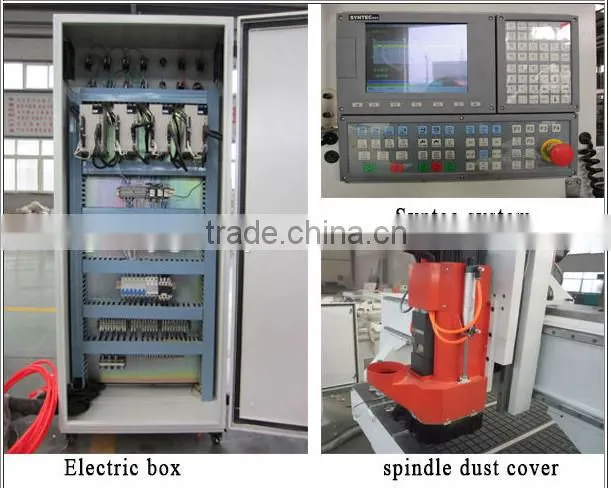

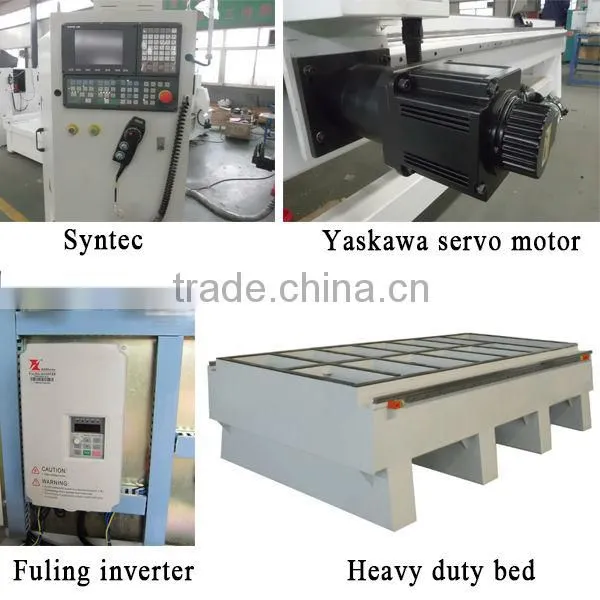

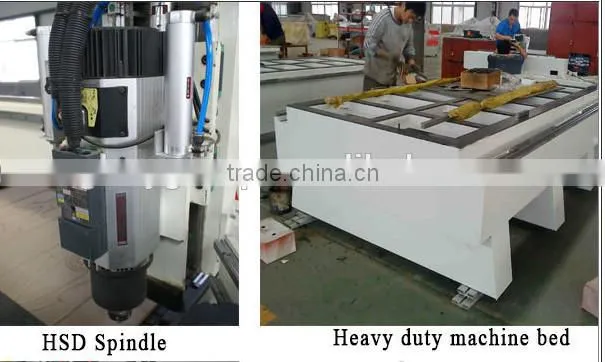

The details of machine
Sample
CE and ISO9001
Workshop
