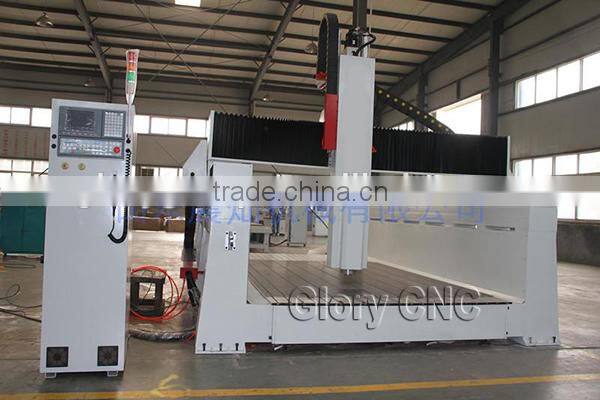

High Density Foam Mould Engraving/Making CNC Router

Name: High Density Foam Mould Engraving/Making CNC Router
Brand: Glory
SKU: 124031453
Availability: InStock

US$ 20,000 - 26,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Jinan Glory Import And Export Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name Glory

Model Number GY-BS2030B

Voltage 220V/380V

Power(W) varied

Dimension(L*W*H) 2300*4000mm

Weight approx 2500kg

Certification CE and ISO

Warranty 12 month

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Mould Engraving Machine
1. Servo motors
2. CE, ISO approved

High Density Foam Mould Engraving/Making CNC Router

Product Highlight
This machine is used for engrave large non-metallic mould, especially automotive foam mould, wooden ship mould, aviation and train wood mould. And wood mould casting, food mould (e.g. moon cake mould) and other mould making.

Technical Parameters
X Y working area	2000*3000mm
Z working area	800mm,1000mm,1200mm
Table size	2300*4000mm
Precision	0.01mm
Max idling speed	50m/min
Max processing speed	30m/min
Spindle	Italy HSD 13.5kw
Working mode	1300w three pieces Yaskawa servo motor for X, Y axis one piece 850w Yaskawa servo motor for Z axis
Operating system	Taiwan Syntec
Cooling mode	Air-cooling
Fixing	By clamps
Ball screw	Germany/Taiwan ball screw, 3205
Guide rail	Square guide rail, 30mm
Driver	Yaskawa
Inverter	11kw Fuling
Gear reducer	Taiwan
Small Electronic parts	France Schneider
Spindle rotating speed	0-24000r/min
Power supply	AC220V/50-60Hz or 380V/50-60HZ
Command	G code, HPGL, U00, mmg, plt
Diameter of cutter	3.175-26mm

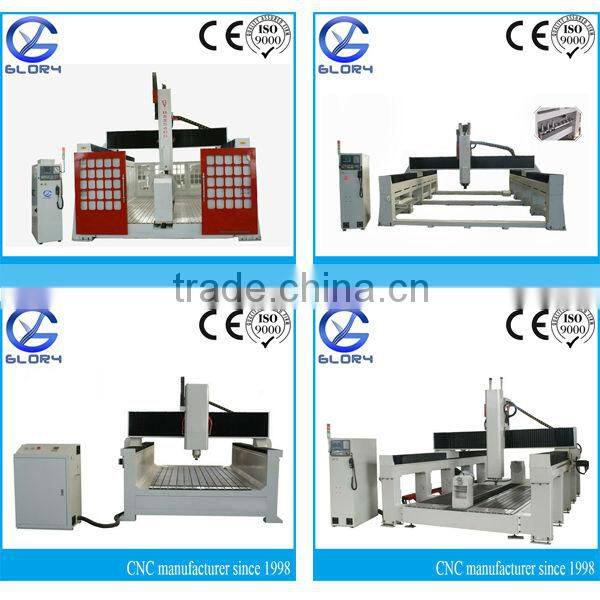

*Standard sizes (XY axis)**	12002400mm 13002500mm 15003000mm 20003000mm 3000*4000mm
Options	1. Weihong controller 2. Added rotary axis 3. Automatic oil-injection system 4. Higher gantry 5. Water-cooled spindles, etc.

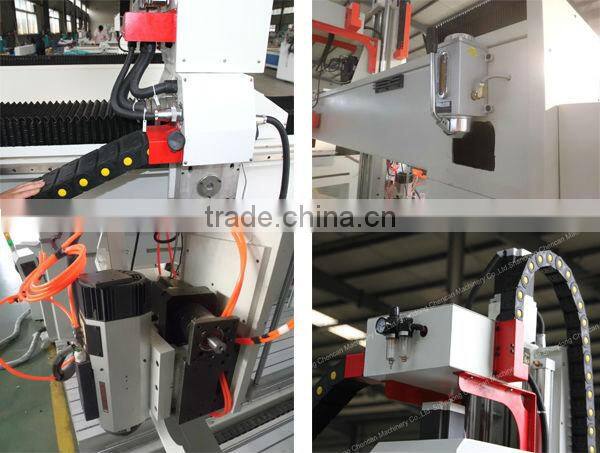

Main Parts

Application
Applicable materials	1. Timber, wood 2. EPS (any kind of foam) 3. Plastics, MDF 4. Aluminum composite 5. Soft metals 6. Acrylic and much more
Applicable industries	1. Mold industry: wooden ship model, wooden model aviation and many other wooden model. 2. Foam industry: can carve and cut on any kind of foam with 2D and 3D dimension processing. 3. Three dimensions: with 4 axes, big diameter rotary, it can do any kind of 3D cylinder material and mould processing for advertisement industry, cloth and shoes industry.
Processing effect	Engraving, cutting, milling, drilling, relief, shadow, enchasement and so on.
Samples

Package&Factory
Package	Whole machine will be totally wrapped with cling plastic to avoid rusting during shipping, and then fastened into fumigation-free wooden case

FAQ
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance.
2. If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.

Service and Guarantee
1. Technical supports and suggestions before you order a machine according to your work piece. 2. Professional instruction for the operation of the machine. 3. One year warranty, we will provide the consumable parts at cost price after the warranty period. 4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. 5. 24-hour technical support by email or calling.
Part Replacement
Customers have to send the broken parts to us within one week to our factory address: West Mingjia Road, Qihe Economic Development Zone, Shandong Province. We will check and send you the new one within one week. 1. Customer has to bear the cost of returning the broken parts. 2. If the broken parts is not man-made damaged, we will afford the cost of the new parts and its freight cost.
