Specifications
Modeling CNC Routing Machine1. 3D effect with rotary axis
2. World top components
3. Factory price

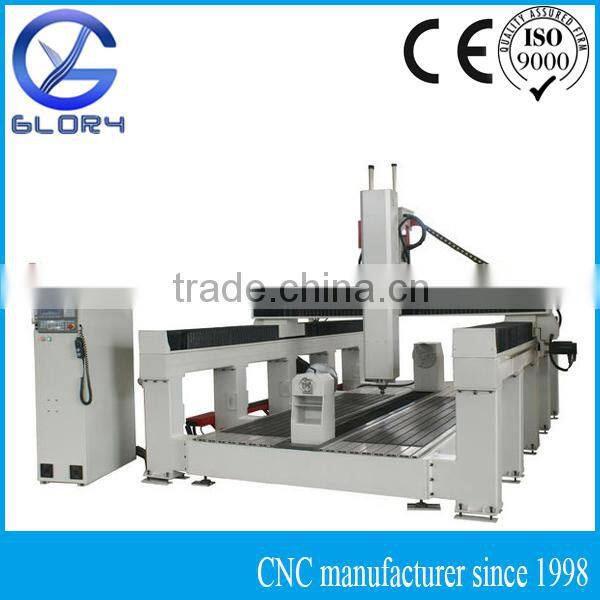

| 2D/3D Computer Modeling CNC Routing Machine |
|---|
|
| Product Highlight |
|---|
|
This machine is used for engrave large non-metallic mould, especially automotive foam mould, wooden ship mould, aviation and train wood mould. And wood mould casting, food mould (e.g. moon cake mould) and other mould making. With the rotary axis, it can do any kind of 3D cylinder material and mould processing for woodworking, advertising, molding industries. |
| Technical Parameters | |
|---|---|
| X Y working area | 2000*3000mm |
| Z working area | 1000mm |
|
Working Area (rotary axis) |
800mm |
| Machine dimension | 2100*3140*1100mm |
| Precision | 0.01mm |
| Max idling speed | 50m/min |
| Max processing speed | 30m/min |
| Spindle | Italy HSD 9kw/13.5kw |
| Working mode |
1300w three pieces Yaskawa servo motor for X, Y axisone piece 850w Yaskawa servo motor for Z axis |
| Operating system | Taiwan Syntec |
| Cooling mode | Air-cooling |
| Fixing | By clamps |
| Ball screw | Germany/Taiwan ball screw, 3205 |
| Guide rail | Taiwan Hiwin , 30mm |
| Driver | Yaskawa |
| Inverter | 11kw Fuling |
| Gear reducer | Taiwan |
| Small Electronic parts | France Schneider |
| Spindle rotating speed | 0-24000r/min |
| Power supply | AC220V/50-60Hz or 380V/50-60HZ |
| Command | G code, HPGL, U00, mmg, plt |
| Table | T slots table covered with PVC |
| Diameter of cutter | 3.175-26mm |
| Standard sizes (X*Y axis) | 1200*2400mm |
| Options |
1. Weihong controller 2. Added rotary axis 3. Automatic oil-injection system 4. Higher gantry, 1000mm/1200mm 5. Water-cooled spindles 6.Delta inverter,etc |
| Customized sizes and upgrades for the components are available on request. | |

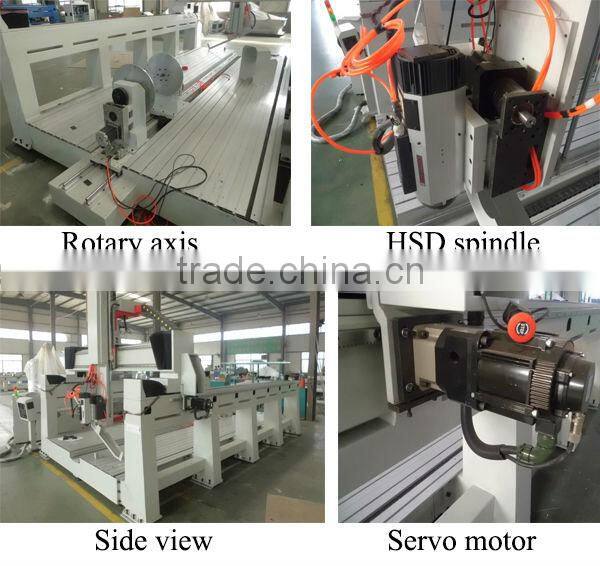

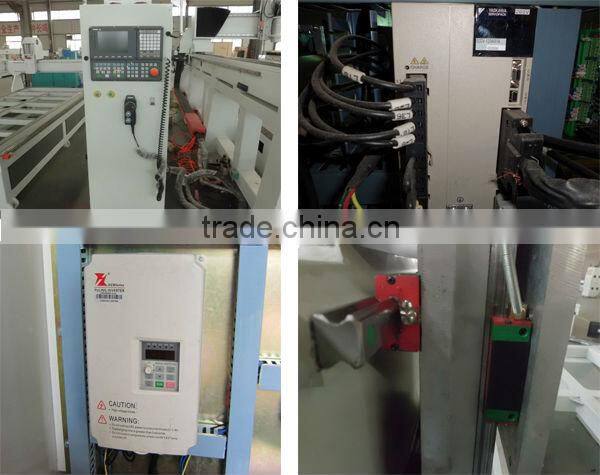

| Main Parts |
|---|
|
|
|
| Application | |
|---|---|
Applicable materials |
Wood, EPS (any kind of foam) and other non-metallic materials. |
| Applicable industries | 1. Mold industry: wooden ship model, wooden model aviation and many other wooden model. |
Processing effect |
Engraving, cutting, milling, drilling, relief, shadow, enchasement and so on. |

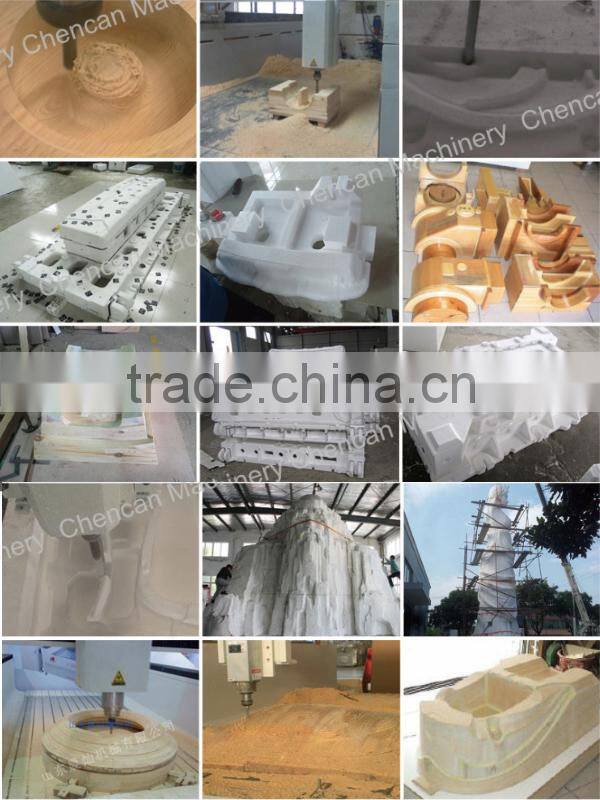

| Samples | |
| |
| |
| Package&Factory |
|---|
|
| FAQ |
|---|
| 1. I never use this kind of machine before, is it easy to learn? |
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. |
| 2. If the machine has problems, what can you do to help? |
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed. |
| 3. How could I know if this machine is suitable for me? |
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided. |
| Service and Guarantee |
|---|
1. Technical supports and suggestions before you order a machine according to your work piece. |
Part Replacement |
Customers have to send the broken parts to us within one week to our factory address: |

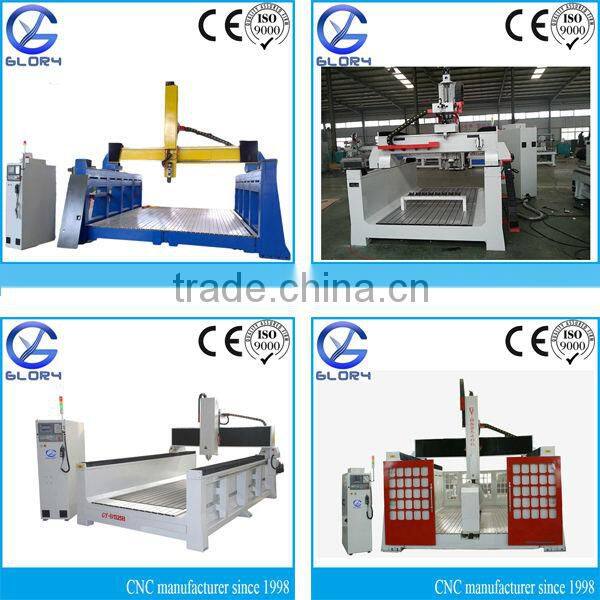

| Related Machines |
|---|
|
