Specifications
Musical Instrument CNC Router1. Stepper/servo motor

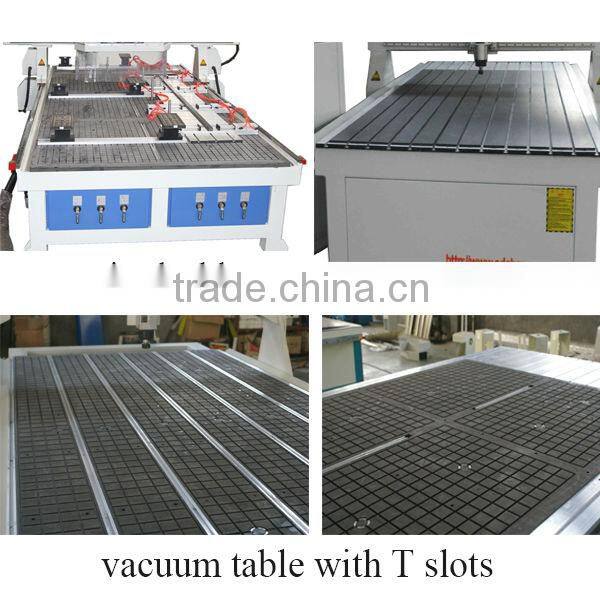

2. Vacuum table or T slots table
3. 6090-3040 working area

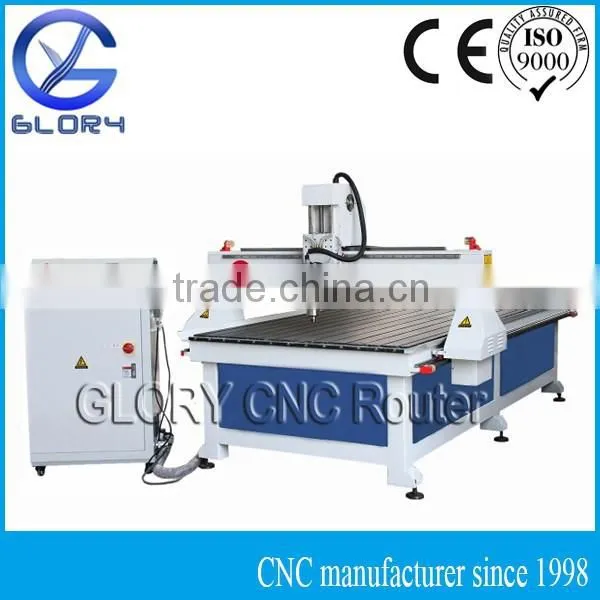

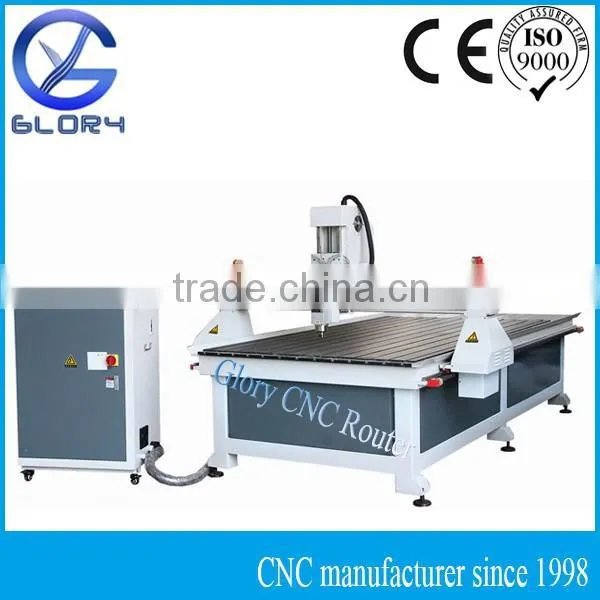

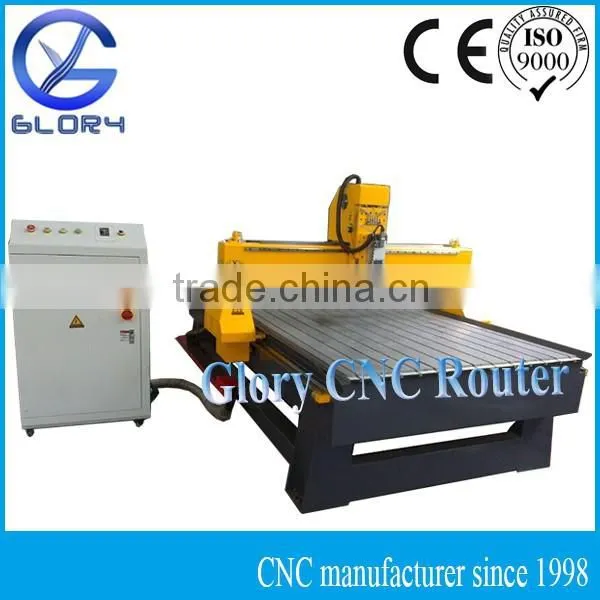

Jinan Glory Musical Instrument CNC Router Machine
1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe bodyis stabilized and will not be deformed forever.
2. Three axes adopt Taiwan brand linear guide rail with high precision.
3. Z axis adopts imported Germany or Taiwan made ball screw, so high precision and long life time using are assured.
4. X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.
5. Well compatibility: CAD/CAM designing software, such as type3/castmate/wentai/artcam/UG/powermill, etc.
6. This machine has the function of re-carving after break point or power failure and it can estimate the processing time.
7. Manual/automatic oil-injection system allows the machine maintenance mush easier.
8. Dust-collection device and considerate oil plate can always keep the working table clean.
9. High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance.
10. We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs.
Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box.
11. Whole machine packed with fumigation-free IPPC wooden case.
Description |
Model |
Optional |
|
GY-M1325A |
GY-M1325B |
||
X Y working area |
1300*2500mm |
1500*3000mm 2000*3000mm etc |
|
Z working area |
200mm |
300mm |
|
Table size |
1440*3040mm |
|
|
Resolution |
0.05mm |
|
|
Max idling speed |
35m/min |
|
|
Spindle |
3.5kw air-cooled/3kw water-cooled |
Italy HSD |
|
Working mode |
Stepper |
Servo |
|
Operating system |
DSP handle |
Nc Studio (Weihong card) |
|
Fixing |
By suction |
By clamps |
|
Vacuum system |
Yes |
No |
|
Ball screw |
Taiwan made 2505-390 |
German brand |
|
Inverter |
Fuling |
Delta, Siemens |
|
Vacuum pump |
5.5kw water-cooling |
Air-cooling |
|
Driver |
YAKO drivers |
Servo drivers and motors |
|
Spindle rotating speed |
0-24000r/min |
0-18000r/min |
|
Power supply |
AC220V/50-60Hz or 380V/50-60HZ |
|
|
Command |
G code, HPGL, U00, mmg, plt |
|
|
Rack and pinion |
Helical, module 1.25 |
|
|
Diameter of cutter |
φ3.175-φ12.7mm |
|
|
Weight |
Approx 1500kg |
|
|
Other options |
1.Alignment pop-up pins 2.Rotary axis 3.Customized any size machine 4.Heavy lathe body 5.More spindles,etc |
||
Note:
AII THE PARTS OF MACHINE CAN DO SOME CHANGES TO MEET YOUR REQUIREMENTS ,such as the motor (step motor or servo motor optional), spindle (air cooled or water-cooled optional ),guide rail (linear guide rail or square linear guide optional ) and the table of the machine (Vacuum table, T-shot table, Combination of T-shot &Vacuum table).
Applicable materials:
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials.
Processing effect:
Engraving, cutting, drilling, milling, enchase, relief, etc.
Applicable industries:
1. Wood processing: processing of various furniture such as door, window, cabinet, craft wooden door, screen and so on.
2. Advertisement: engraving and cutting various labels and number plate.
3. Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Samples
Service & guarantee:
1. Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine
3. One year warranty, we will provide the consumable parts at cost price after the warranty period.
4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling. Cabinet engraving machine

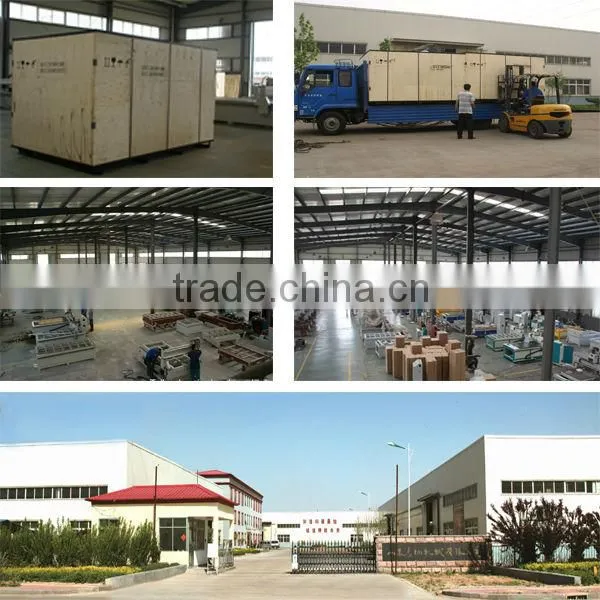

Package&Factory
Related machines:
Contact:
Welcome to visit our factory at any time. : )
Skype/Wechat: jeanh007
LinkedIn&Facebook: Jinan Glory Import and Export Trading Co.,Ltd
