Specifications
CNC Router for Wood1. Factory price
2. Fast delivery
3. OEM service
4. Lifetime technical support

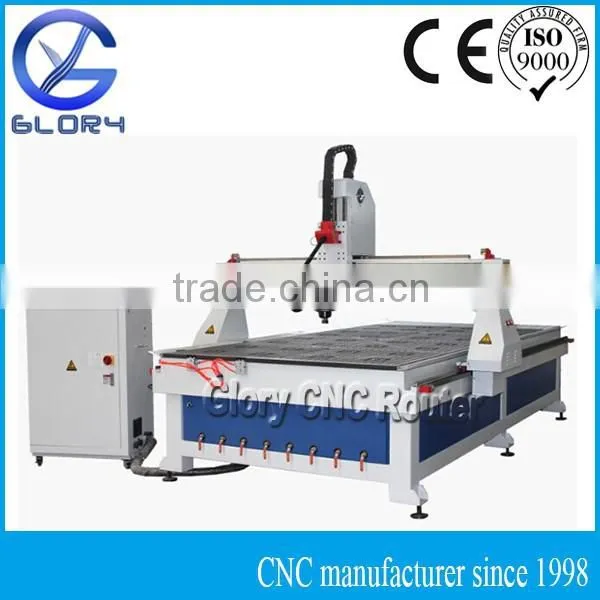

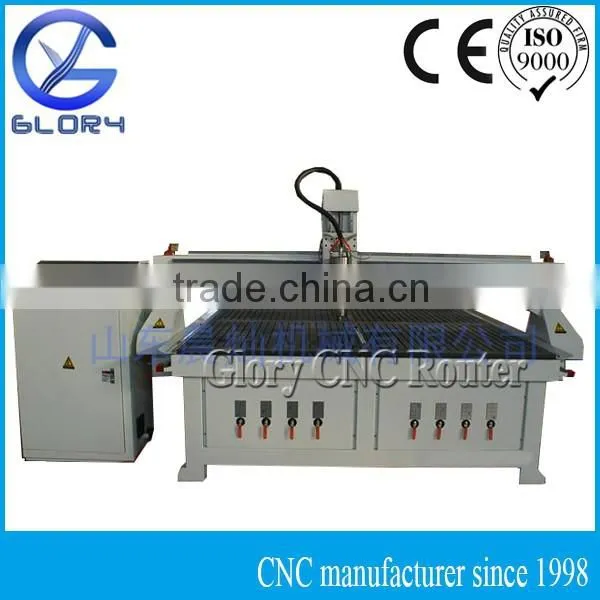

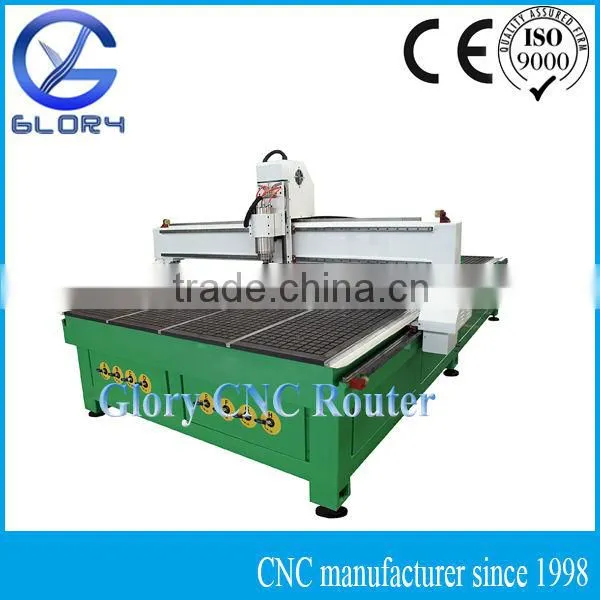

CNC Router for Wood
Key features:
1. Seamless steel lathe bed
2. Taiwan linear guide
3. Helical rack and pinion
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Stepper motors
7. Oil-injection system cnc machine
Ideal for:
1. Timber
2. MDF
3. Plastics
4. Aluminum composite
5. Soft metals
6. Acrylic and much more
Processing effect:
Engraving, cutting, drilling, milling, enchase, relief, etc.
Standard sizes:
1300mm*2500mm
1500mm*3000mm
2000mm*3000mm
2000mm*4000mm
Custom sizes and upgrades for the components are available on request. cnc machine
SPECIFICATION |
GY-M1325A |
GY-M1530A |
GY-M2030A |
GY-M2040A |
|
Working Area (X Axis) |
1300mm |
1500mm |
2000mm |
2000mm |
|
Working Area (Y Axis) |
2500mm |
3000mm |
3000mm |
4000mm |
Clearance (Z Axis) |
200mm |
|||
Spindle |
3kw/4.5kw water cooled, air cooled HSD spindle for option |
|||
Spindle Speed |
Adjustable 0-24,000 rpm |
|||
Tool Change |
Manual Tool-Change |
|||
|
Drive System (X & Y Axes) |
Helical Rack & Pinion |
|||
|
Drive System (Z Axis) |
Ball Screw |
|||
Drive Motors |
Stepper(servo motors for upgrade) |
|||
Inverter |
Fuling |
|||
Driver |
Yako |
|||
Command |
G code |
|||
Cutter diameter |
φ3.175-φ12.7mm |
|||
Maximum Travel Speed |
35m/min |
|||
Table Top |
Grid table tops with absorption function |
|||
Vacuum pump |
5.5kw water cooled |
|||

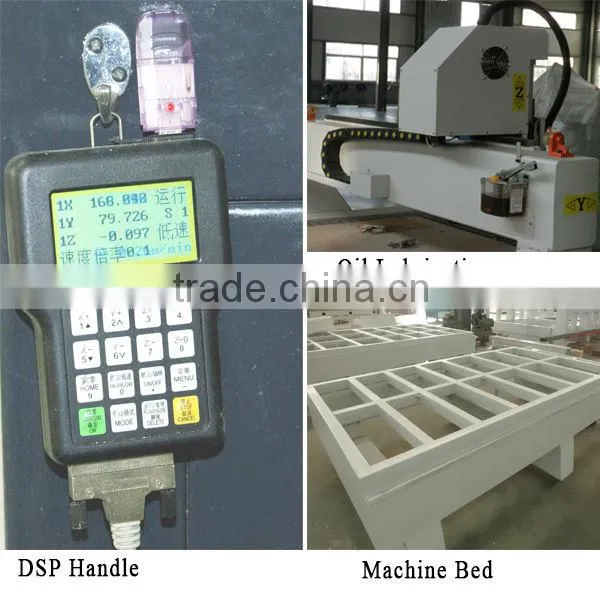

Controller |
DSP handle |
|||
Power Requirements |
3-phase 380V/50HZ, 220V for optional |
|||

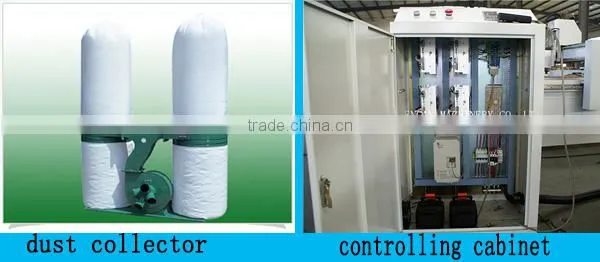

Optional parts: cnc machine
1. Rotary axis
2. Alignment pop-up pins
3. Gang drill
4. More spindles
5. Heavy duty lathe bed, etc.
Note:
All the parts of machine can do some changes to meet your requirements.

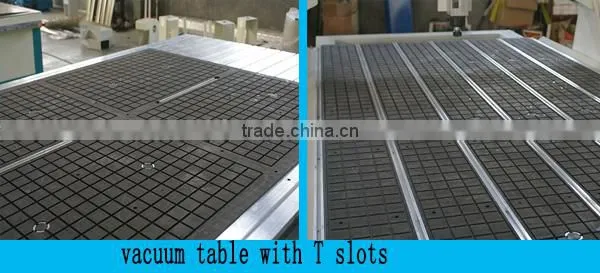

Such as the motor (stepper motor or servo motor), spindle (air cooled or water cooled, HSD or Chinese brand), table of the machine (vacuum table, T-slot table or combination of T-slot & vacuum table) and operating system (DSP, Weihong or Syntec), etc.
cnc machine

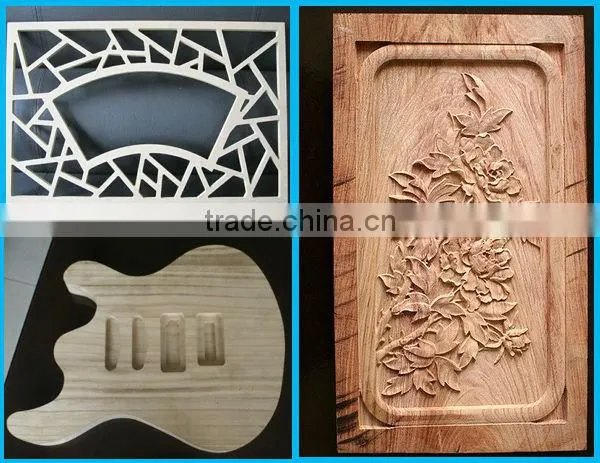

Samples:
Our partners:
Service & guarantee:
1. Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine
3. One year warranty, we will provide the consumable parts at cost price after the warranty period. (We suggest you order a few extra consumable parts together with the machine)
4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling. cnc machine
Related products: cnc machine

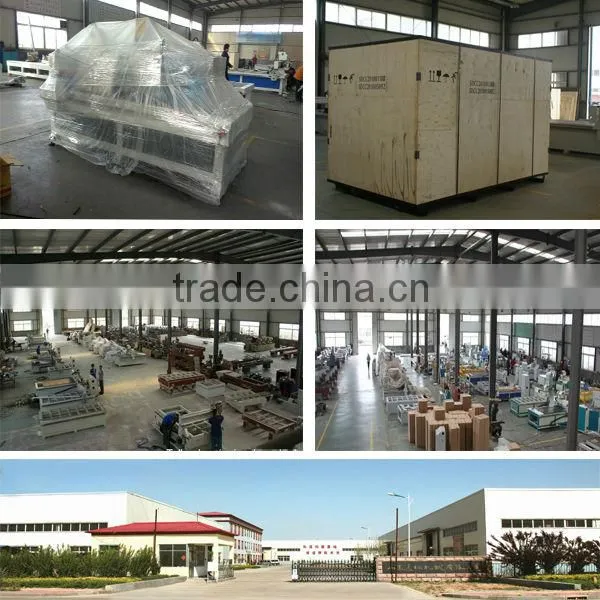

factory overview cnc mac
Contact Info:
Welcom to visit our factory at any time. : )
We can chat online if you like. My Skype/Wechat: jeanh007
LinkedIn&Facebook: Jinan Glory Import and Export Trading Co.,Ltd
