Specifications
Stone Engraving Machine1.4.5 kw spindle
2.stepper motors
3.within 15 working days delivery
4.OEM service

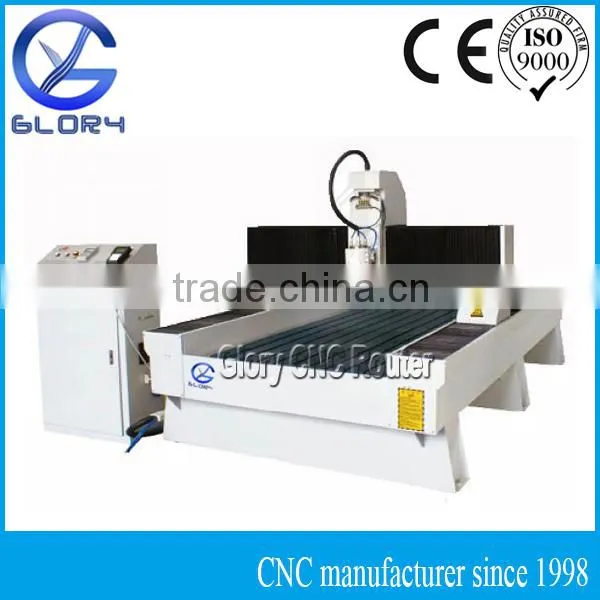

1325 CNC Stone Engraving Machine
Highlight:
This machine is specially used for engrave stone materials. It can engrave word and various graphic on the stones. Also, it can be used for timber, density board and other non-metallic material and light metals. stone engraving machine
Product features:
1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
2. This machine can not only process various stones, but also the wood.
3. Y axis adopts high precision helical rack and pinion with high denticity.
4.Well compatibility: CAD/CAM designing software, such as type3/castmate/wentai, etc.
5. This machine has the function of re-carving after break point or power failure and it can estimate the processing time.
6. Adopting advanced DSP system with USB interface, operate with the convenient handle, which will not take any computer resources.

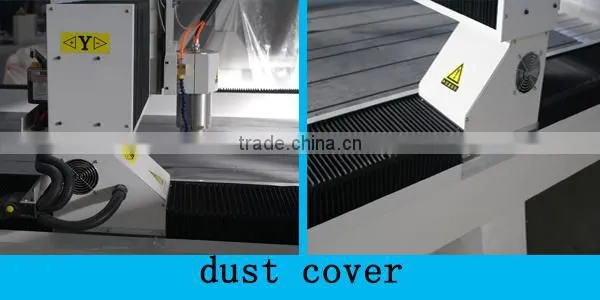

7. Water proof and dust proof design protects the transmission parts from broken.
8. For every set cnc stone engraving machine three axes adopt Taiwan high precision square guide rail, X and Y axes adopt rack and pinion transmission, fast working,high efficiency and low cost; Z axis adopts Taiwan TBI ball screw,with high precision and longevity.

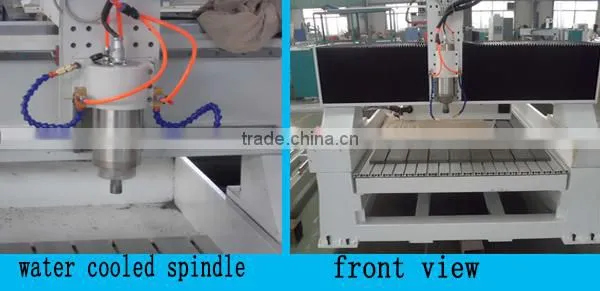

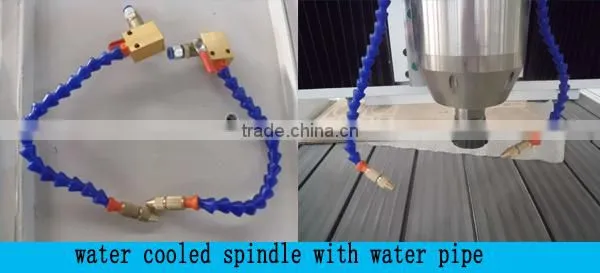

9.The machine has water tank and automatic water cooling system for cutters.
Description |
Parameter |
Optional |
X Y working area |
1300*2500mm |
1500*3000mm 2000*3000mm etc |
Z working area |
200mm |
150mm, 300mm |
Table size |
1340*2940mm |
|
Resolution |
0.05mm |
|
Max idling speed |
30m/min |
|
Spindle |
4.5kw water-cooled |
Higher power |
Working mode |
Stepper |
Servo |
Driver |
YAKO |
Delta/Yaskawa |
Operating system |
DSP handle |
Nc Studio (Weihong card) |
Cooling mode |
Water-cooling |
|
Fixing |
By clamps |
|
Ball screw |
Taiwan TBI |
|
Guide rail |
Taiwan square rail |
Hiwin |
Inverter |
Fuling |
Delta/Siemens |
Spindle rotating speed |
0-24000r/min |
0-18000r/min |
Power supply |
380V/50-60Hz or 220V |
AC220V/50-60Hz |
Command |
G code, HPGL, U00, mmg, plt |
|
Rack and pinion |
Helical |
|
Diameter of cutter |
φ3.175-φ12.7mm |
|
Weight |
Approx 2000kg |
|
Optional parts:
1. Weihong/Syntec controller
2. Added rotary axis
3. Automatic oil-injection system
4. Higher gantry stone engraving machine
5. More spindles
6. Different power requirements, etc
Applicable industries:
1. Marble/stone: engraving on various granite, bluestone, marble, gritstone, ceramic tile, soapstone, etc. stone engraving machine
2. Metal: light metal like aluminum and brass
3. Woodworking: wood, plastic, PVC, density board, acrylic, etc.
Samples:
Service & guarantee:
1. Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine
3. One year warranty, we will provide the consumable parts at cost price after the warranty period. (We suggest you order a few extra consumable parts together with the machine)
4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. stone engraving machine
5. 24-hour technical support by email or calling.
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype.
Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance.
2. If the machine has problems, what should I do?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed. stone engraving machine
3. What is your delivery term?
EXW, FOB, CFR, CIF or DDU.
4. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
5. Is your machine cost-effective?
Our factory was established in 1998, with years of experience and countless tests, we have groped the perfect standard configurations for each type of the machine. You can be rest assured about the high performance of our machine.
Welcom to visit our factory at any time. : )
