Multi Purpose CNC Router CNC-Woodworking Machine

Name: Multi Purpose CNC Router CNC-Woodworking Machine
Brand: Glory
SKU: 124026423

US$ 11,000 - 15,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Jinan Glory Import And Export Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Qingdao/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name Glory

Model Number GY-MS1325AC3

Voltage 380V/220V

Power(W) varied

Dimension(L*W*H) 3100*2050**1800mm

Weight 1600kg

Certification CE, ISO

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

CNC-Woodworking Machine
1. Three head with side milling function
2. 3D effect
3. Air cooled
4. Factory price

CNC-Woodworking Machine

Highlight

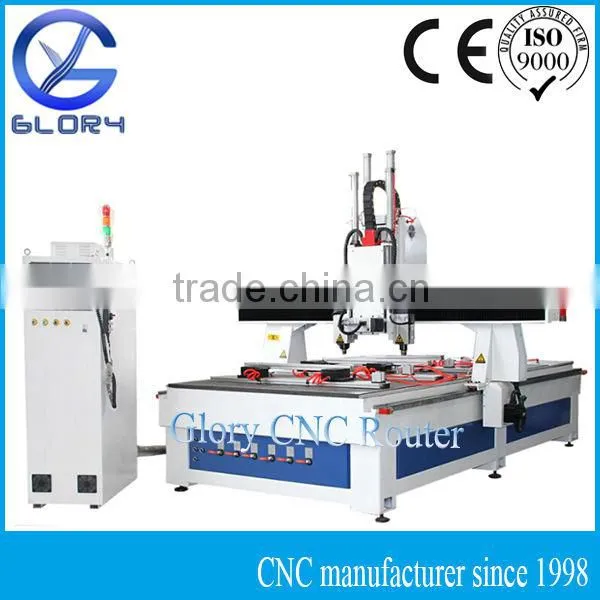

GY-MS1325AC3, sychronous multi-head CNC router machine for changing the tool within 2-4 pieces. It is not only economical, but also can realized auto tool change, save the time of manual tool change and improve working speed and precision.
Product Features

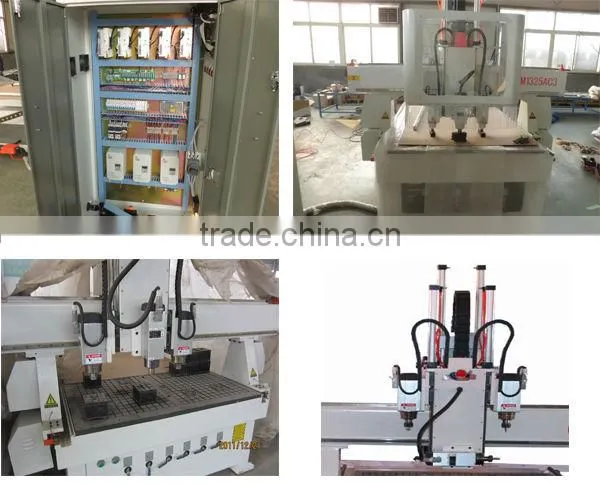

1.	The middle spindle can rotate +-90°according to your process, it can engrave, cut on plane board’s surface and also mill, drill the board’s sides.
2.	Three spindles can use three different tools for three different processing at the same time, which is similar with an economical auto-tool changer cnc machine center with three tools.
3.	Advance Taiwan Syntec EZ4 control system.

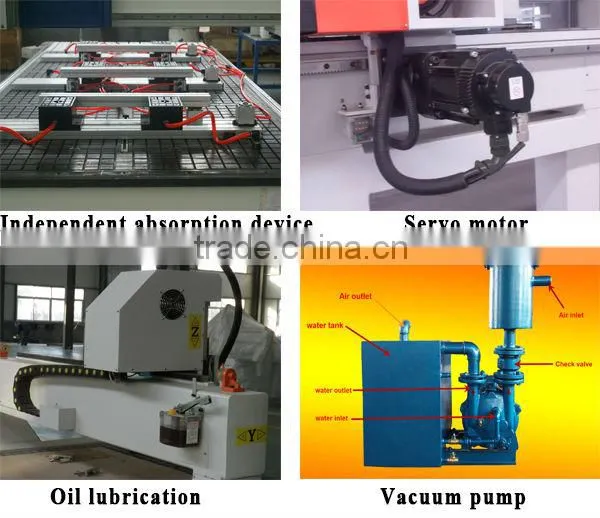

4.	Vacuum table with absorption/suction block to assist the side drilling and milling process.
5.	Heavy bistratal side plates can keep large supporting power for the gantry’s moving precisely.
6.	Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
7.	Table is equipped with alignment pop-up pins for you to fix the work piece quickly.
8.	With absorption block, the machine can process the big wide board as well as the bizarre/rare shape work piece.

Technical Paramters
Working Area (X Axis)	1300mm
Working Area (Y Axis)	2500mm
Clearance (Z Axis)	300mm
Spindle	Two 3.5kw air-cooled, one 4.5kw air cooled for the middle spindle
Spindle Speed	Adjustable 0-24,000 rpm
Tool Change	Manual Tool-Change
Drive System (X & Y Axes)	Helical Rack & Pinion
Drive System (Z Axis)	Germany ball Screw
Drive Motors	Four sets Yaskawa servo motors, one set steper motor
Inverter	Fuling
Driver	Yaskawa/Yako
Command	G code
Cutter diameter	3.175-20mm
Maximum Travel Speed	45m/min
Table Top	Vacuum table with T slot and Suntion block
Controller	Syntec EZ4
Vacuum Pump	5.5kw Water cycle vacuum pump
Lubrication	Manual oil-injection system
Power Requirements	3-phase 380V/50HZ, 220V for optional
Optional	1.Oil vacuum pump 2.Customized table size 3.Automatic lubrication system 4.More spindles 5.Indepent abroption device etc

Application
Wood processing	Processing of various furniture such as door, window, cabinet, screen and so on
Advertisement	Engraving and cutting various labels and number plate.
Art craft	Engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials
Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Processing effect
Engraving, cutting, drilling, milling, enchase, relief, etc.
Samples

Service and Guarantee
1. Technical supports and suggestions before you order a machine according to your work piece. 2. Professional instruction for the operation of the machine. 3. One year warranty, we will provide the consumable parts at cost price after the warranty period. 4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. 5. 24-hour technical support by email or calling.
Part Replacement
Customers have to send the broken parts to us within one week to our factory address: West Mingjia Road, Qihe Economic Development Zone, Shandong Province. We will check and send you the new one within one week. 1. Customer has to bear the cost of returning the broken parts. 2. If the broken parts is not man-made damaged, we will afford the cost of the new parts and its freight cost.

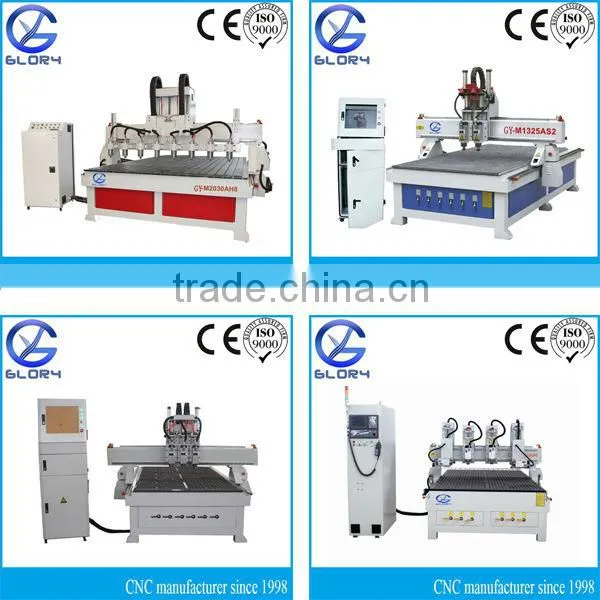

Related Machines

FAQ
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance.
2. If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
