Specifications

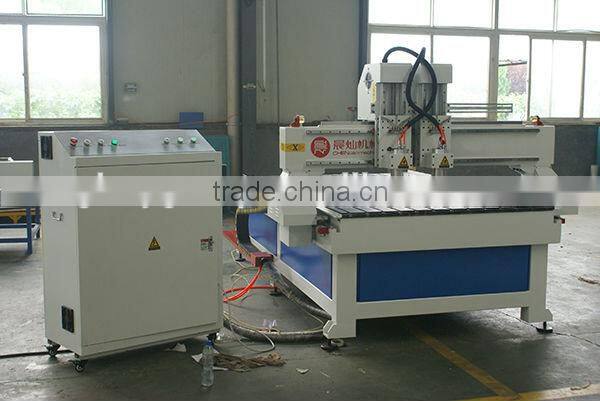

2 Spindle 1325 CNC Router1. two water cooled spindles
2. DSP controller
3. two Z axis
4. 1325 size
| 2 Spindle 1325 CNC Router |
|---|
|
| Product Highlight | |
|---|---|
| GY-M1325AH with asynchronous two spindles is customized for changing the tools within 2-4 pieces. Its not only economic, but also can realize auto tool change, save the time of manual tool change and improve the working speed and precision. And it could engrave two work pieces at the same to reach the same effect. What's more, this machine could mirror-sculpture (same engraving path, but in opposite directions)by changing the cables, which is widely used for door carving. | |
| Product Features | |
| 1. | Two spindles can use two different tools for two different processing at the same time. |
| 2. | DSP handle controller, easy to operate. |
| 3. | Heavy bistratal side plates can keep large supporting power for the gantry moving precisely. |
| 4. | Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever. |
| 5. | With absorption block, the machine can process the big wide board as well as the bizarre/rare shape work piece. |
| 6. | Table is equipped with alignment pop-up pins for you to fix the work piece quickly. |
| 7. | Well compatibility: CAD/CAM designing software, such as type3/castmate/wentai/artcam/autocad, etc. |
| 8. | This machine has the function of re-carving after break point or power failure and it can estimate the processing time. |
| 9. | Dust-collection device and considerate oil plate can always keep the working table clean. |
| 10. | High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance. |
| 11. | We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs. |
| 12. | Manual oil-injection system allows the machine maintenance mush easier. |

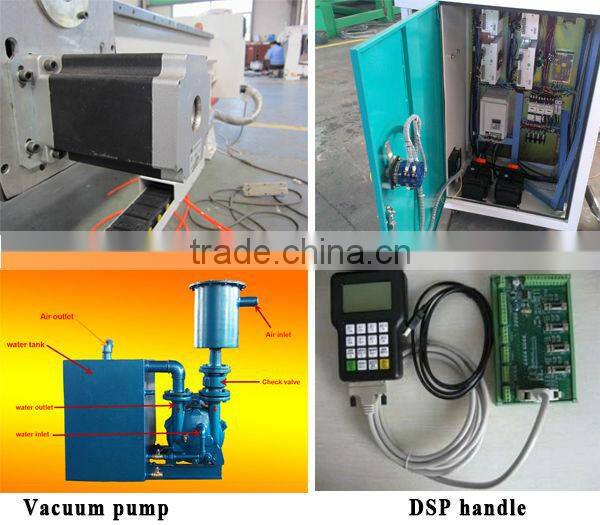

| Main Parts |
|---|
|
|
|
| Technical Paramters | |
|---|---|
|
Working Area (X Axis) |
1300mm |
|
Working Area (Y Axis) |
2500mm |
| Clearance (Z Axis) | 200mm |
| Spindle | Two 3kw water cooled |
| Spindle Speed | Adjustable 0-24,000 rpm |
| Tool Change | Manual Tool-Change |
|
Drive System (X & Y Axes) |
Helical Rack & Pinion |
|
Drive System (Z Axis) |
Germany ball Screw |
| Drive Motors | Four sets stepper motors |
| Inverter | Fuling |
| Driver | Yako |
| Command | G code |
| Cutter diameter | 3.175-12.7mm |
| Maximum Travel Speed | 45m/min |

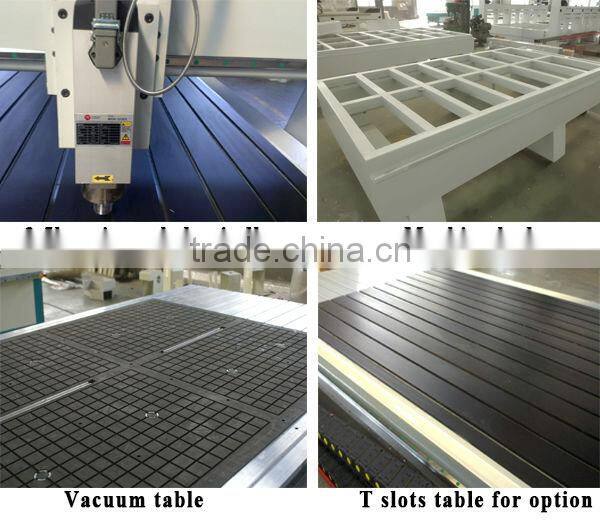

| Table Top | Grid top air suction vacuum table |
| Controller | DSP handle |
| Vacuum Pump | Water cycle vacuum pump |
| Lubrication | Manual oil-injection system |
| Softwares | Artcam, AutoCad,UG, Alphacam, Powermill, Type3, Wentai, etc |
| Power Requirements | 3-phase 380V/50HZ, 220V for optional |
| Optional |
1. Yaskawa servo motors and driver 2.T slots table 3. Oil lubricated vacuum pump 4.Air cooling spindle 5.Syntec/Weihong controller 6. More or less spindles 7. Customized table size etc |
| Application | |
|---|---|
| Wood processing | Processing of various furniture such as door, window, cabinet, screen and so on |
| Advertisement | Engraving and cutting various labels and number plate. |
| Art craft | Engraving characters of any languages and graphics on gifts and souvenirs. |
| Applicable materials | |
Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials. | |
| Processing effect | |
| Engraving, cutting, drilling, milling, enchase, relief, etc. | |
| Samples | |
| |
| |
| Service and Guarantee |
|---|
1. Technical supports and suggestions before you order a machine according to your work piece. |
Part Replacement |
Customers have to send the broken parts to us within one week to our factory address: |
| FAQ |
|---|
| 1. I never use this kind of machine before, is it easy to learn? |
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. |
| 2. If the machine has problems, what can you do to help? |
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed. |
| 3. How could I know if this machine is suitable for me? |
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided. |

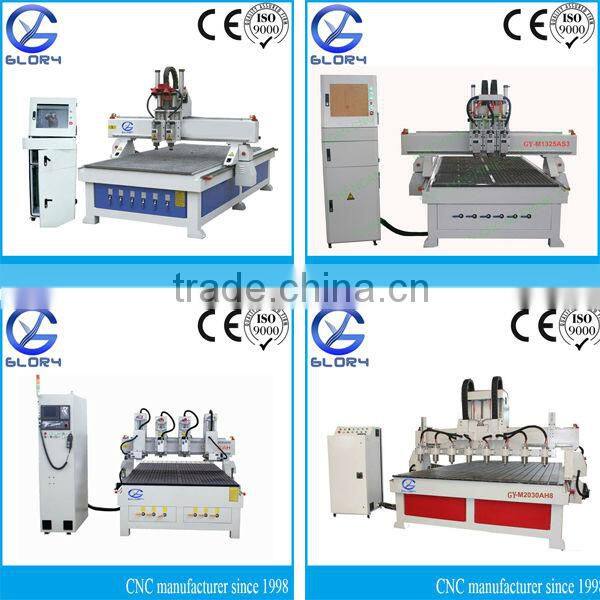

| Related Machines |
|---|
|
| Package&Factory |
|---|
|
| Contact information |
|
|
We can chat online if you like. My Skype/Wechat: jeanh007 Welcome to visit our factory at any time. : ) LinkedIn&Facebook: Jinan Glory Import and Export Trading Co.,Ltd |
