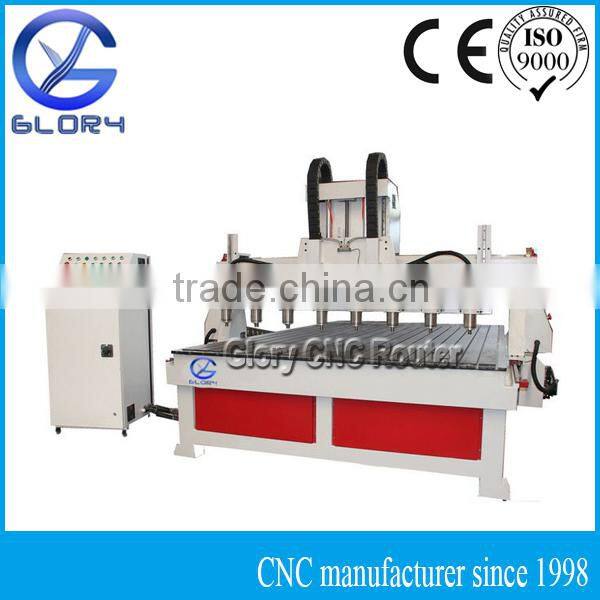

Multi Head Eight Spindles Chinese CNC Router

Name: Multi Head Eight Spindles Chinese CNC Router
Brand: Glory
SKU: 124024751
Availability: InStock

US$ 9,500 - 14,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Jinan Glory Import And Export Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name Glory

Model Number GY-M2030BH8

Voltage 220V/380V

Power(W) varied

Dimension(L*W*H) 3900*2800*2600MM

Weight 2000kg

Certification ISO, CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Chinese CNC Router
1.High working efficiency with 8 spindles
2.Servo motors
3. 3 axis
4. DSP handle controller

Chinese CNC Router

Product Features

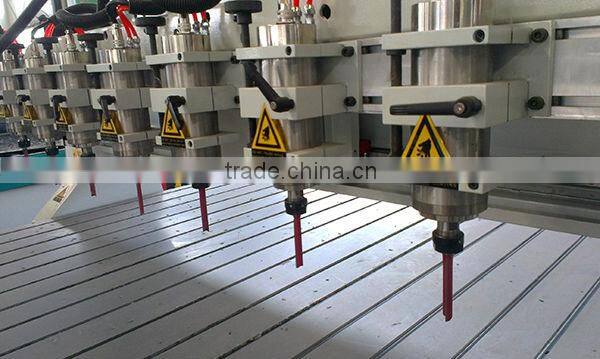

1.	Eight spindles work synchronously and the distance between spindles can be adjusted.

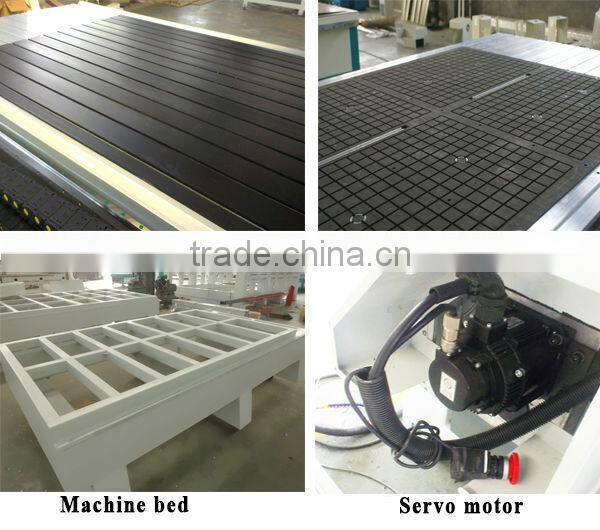

2.	Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
3.	The machine adopts gantry movement, suitable for batch processing small work piece.
4.	Well compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/Wentai/AutoCad/PowerMill/UG/Alphacam, etc.
5.	This machine has the function of re-carvingafter break point or power failure and it can estimate the processing time.

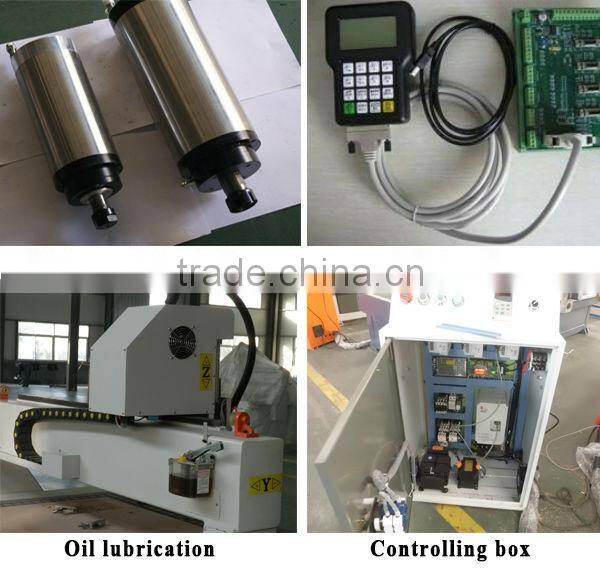

6.	Adopting DSP handle controlling system, easy to operate. Machine can completely work off-line.
7.	Three axes adopt Taiwan Hiwin linear guide rail with high precision.
8.	Z axis adopts imported Germany or Taiwan made ball screw, so high precision and long life time using are assured.
9.	Manual oil-injection system allows the machine maintenance mush easier.
10.	High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance.
11.	We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs.
12.	Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box.

Technical Parameters
Description	GY-M2030BH8	Optional
X Y working area	2000*3000mm	15003000mm 30004000mm
Z working area	200mm	300mm
Max idling speed	35m/min

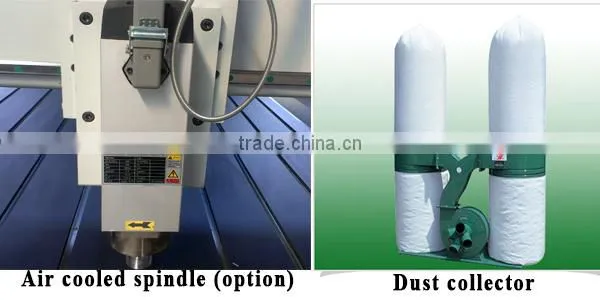

Spindle	3kw water cooled	3.5kw air cooled
Working mode	Stepper motor	Yaskawa servo
Operating system	DSP handle	Weihong/NC Studio
Fixing	By clamp	by suction
Ball screw	Taiwan ball screw	German brand
Inverter	Fuling	Delta, Siemens
Driver	Yako	Yaskawa
Spindle rotating speed	0-24000r/min	0-18000r/min
Power supply	380V/50-60HZ	AC220V/50-60Hz
Command	G code, HPGL, U00, mmg, plt,etc
Rack and pinion	Helical, module 1.25
Diameter of cutter	3.175-12.7mm
Other options	1.Alignment pop-up pins 2.Rotary axis 3.Customized sizes 4.Heavy duty machine bed 5.More or less spindles, etc
Note: AII THE PARTS OF MACHINE CAN DO SOME CHANGES TO MEET YOUR REQUIREMENTS. Such as the motor (step motor or servo motor optional), spindle (air cooled or water-cooled optional ),guide rail (linear guide rail or square linear guide optional ) and the table of the machine (Vacuum table, T-shot table, Combination of T-shot &Vacuum table)

Application
Wood processing	Processing of various furniture such as door, window, cabinet, screen and so on
Advertisement	Engraving and cutting various labels and number plate.
Art craft	Engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials
Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Processing effect
Engraving, cutting, drilling, milling, carving, enchase, relief, etc.

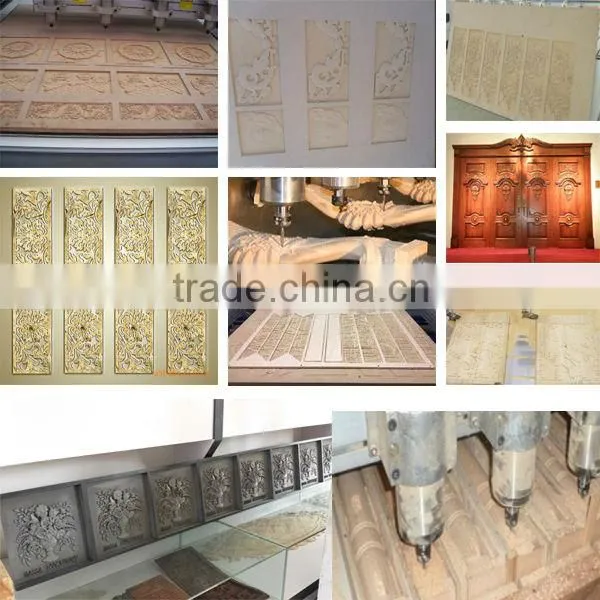

Samples

FAQ
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance.
2. If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.

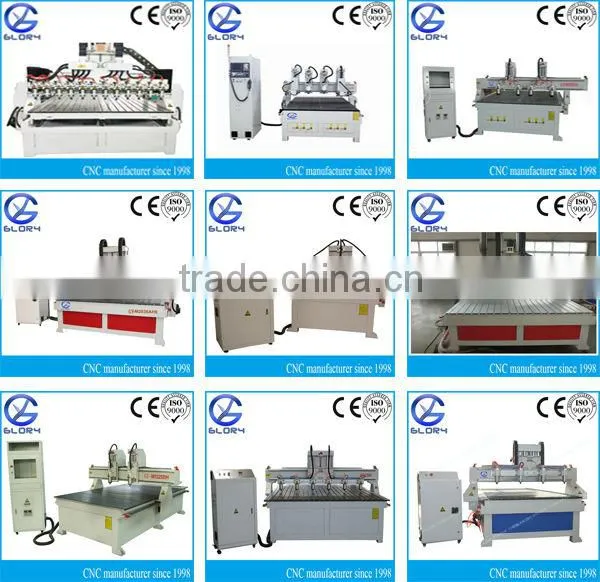

Related Machines

Service and Guarantee
1. Technical supports and suggestions before you order a machine according to your work piece. 2. Professional instruction for the operation of the machine. 3. One year warranty, we will provide the consumable parts at cost price after the warranty period. 4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. 5. 24-hour technical support by email or calling.
Part Replacement
Customers have to send the broken parts to us within one week to our factory address: West Mingjia Road, Qihe Economic Development Zone, Shandong Province. We will check and send you the new one within one week. 1. Customer has to bear the cost of returning the broken parts. 2. If the broken parts is not man-made damaged, we will afford the cost of the new parts and its freight cost.
