CHENCAN ATC Auto-Tool Changer CNC Machine Center With Rang Drill

Name: CHENCAN ATC Auto-Tool Changer CNC Machine Center With Rang Drill
Brand: Glory
SKU: 124022995
Availability: InStock

US$ 40,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Jinan Glory Import And Export Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name Glory

Model Number GY-MS1335ADH

Voltage 220V/380V

Power(W) varied

Dimension(L*W*H) 3200*2150**1950mm

Weight 3000kg

Certification CE, ISO

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

CNC Machine Center with Rang Drill
1. Singal arm
2. World top components
3. Vaccum table
4. ISO, CE approved

CNC Machine Center with Rang Drill

Statement

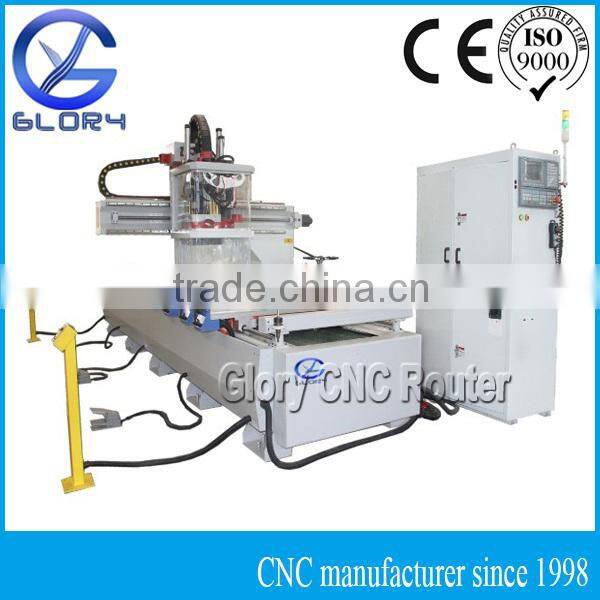

GY-MS1335ADH comes standard with all the features you will need for high production CNC routing. Both the steel table frame and gantry are manufactured to the highest standard. All 3 axes are powered by fast, reliable and quiet Yaskawa AC Servo motors which provide a fantastic mix of torque and power.
The X and Y axes run on Hiwin guide rails to ensure smooth and accurate travel. These bearings are factory-sealed and provide maintenance-free reliability. Included on this type machines are helical rack and pinion drives to guarantee high-accuracy.
Cutting is performed by a 9kw HSD Auto Tool Change spindle. Coupled with CNC 8-tool rotary auto tool changer it makes multiple-tool jobs a breeze and tool-changing is exceptionally fast. Materials are held down with a powerful air-cooled vacuum pump and dust is efficiently removed with the CNC dust extraction system which is included as standard. All these components are driven by the industry renowned Syntec CNC controller.

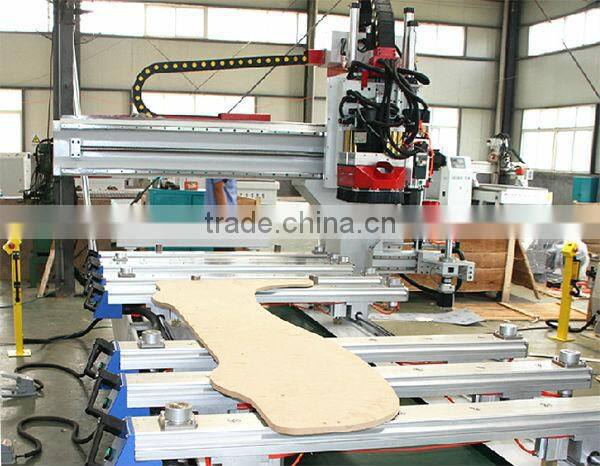

One-arm gantry support design is for the convenience of loading and unloading the work piece. To further increase productivity and enhance workplace safety automatic sheet-loading and unloading options are available.
Photographic protection system installed for the safety consideration.

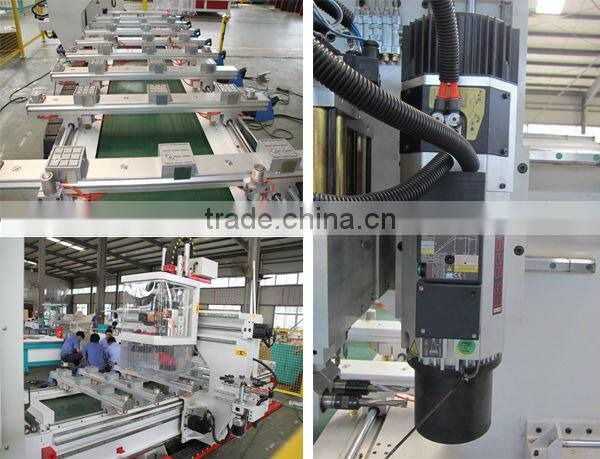

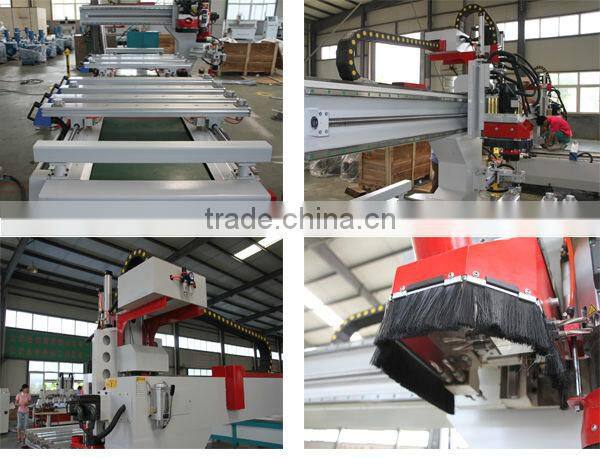

Main Parts

Technical Parameters
Working Area (X Axis)	1300mm
Working Area (Y Axis)	3500mm
Clearance (Z Axis)	350mm
Table Size	1300mm*3700mm
Spindle	ATC 9kw HSD
Spindle Speed	Adjustable 0-24,000 rpm
Tool Change	Rotary Tool-Change with 8 tool positions
Gang Drill Block	4V4H
Drive System (X & Y Axes)	Helical Rack & Pinion
Linear Guide	30mm Hiwin
Drive System (Z Axis)	Germany ball Screw
Lubrication	Oil-injection system
Drive Motors	Yaskawa servo motor
Driver	Delta 11kw
Command	G code
Cutter diameter	3.175-20mm
Maximum Travel Speed	50m/min
Controller	Syntec
Power Requirements	3-phase 380V/50HZ

Application
Wood processing	Processing of various furniture such as door, window, cabinet, screen and so on
Advertisement	Engraving and cutting various labels and number plate.
Art craft	Engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials
Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Processing effect
Engraving, cutting, drilling, milling, enchase, relief, etc.
Samples

Service and Guarantee
1. Technical supports and suggestions before you order a machine according to your work piece. 2. Professional instruction for the operation of the machine. 3. One year warranty, we will provide the consumable parts at cost price after the warranty period. 4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. 5. 24-hour technical support by email or calling.
Part Replacement
Customers have to send the broken parts to us within one week to our factory address: West Mingjia Road, Qihe Economic Development Zone, Shandong Province. We will check and send you the new one within one week. 1. Customer has to bear the cost of returning the broken parts. 2. If the broken parts is not man-made damaged, we will afford the cost of the new parts and its freight cost.

FAQ
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance.
2. If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3. How does it work?
Under CNC Machining, machine tools function through numerical control. A computer program is customized for an object and the machines are programmed with CNC machining language (called G-code) that essentially controls all features like feed rate, coordination, location and speeds. With CNC machining, the computer can control exact positioning and velocity.
4. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
