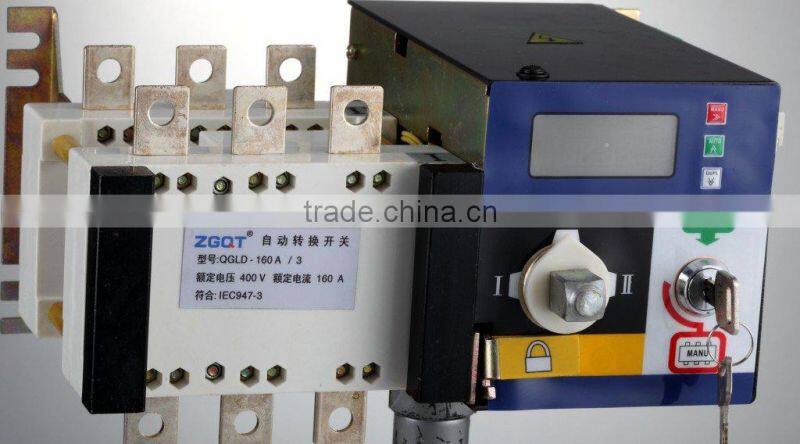

QGLD Automatic Changeover Switch
US$ 1 - 1,000
MOQ: 30 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ZGQT
Model Number:
QGLD
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QGLD1 Series Automatic Transfer Switch (ATS)--100AUS$ 1 - 1,000MOQ: 30 Pieces -
QTQ1 Series Double Power Auto Transfer SwitchUS$ 1 - 1,000MOQ: 30 Pieces
-
QTQ1 Series Double Power Auto Transfer SwitchUS$ 1 - 1,000MOQ: 30 Pieces
-
QTQ1 Automatic Transfer Switch (intelligent Type)US$ 1 - 1,000MOQ: 30 Pieces
-
Automatic Chang-over SwitchUS$ 1 - 1,000MOQ: 100 Units
Place of Origin
Zhejiang, China
Brand Name
ZGQT
Model Number
QGLD
Specifications
low cost, high qualitymost of accessories are made by our company
with international standard and national standard
|
QGLD-160-3 |
|
QGLD-100-4 |
1.Products Usage
Such products are widely used at the field of important power supply site,which transport,distribution power supply system and automatizaion system. For Fire Protection, Ho-spital, Bank, Building etc., which doesn't allowed power off.
2.Standard
International standard
IEC60947-1(1998)
IEC60947-3(1999)
IEC60947-6(1999)
National standard
GHB/T 14048.1-2002
GB14048.3-2002
GB14048.11-2002
3.Main Technical Parameters
| Conventional thermal current lth A | 800A | 1000A | 1250A | 1600A | 2000A | 2500A | 3200A | |
| Rated impulse withstand voltage Ui(v) | 1000V | |||||||
| Rate surge-resistant voltage Uimp KV | 12KV | |||||||
| Rated Working voltage Ui(v) | AC440V | |||||||
| Rated Working current le(A) | AC-31 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 |
| AC-33 | 1000 | 1000 | 1250 | 1250 | 1250 | |||
| AC-35 | 1000 | 1250 | 2000 | 2000 | 2500 | |||
| Rated making capability | 10le | |||||||
| Rated breaking capability | 8le | |||||||
| Rated restrict short circuit current KA | 100 | 120 | 80 | |||||
| Rated short-time withstand current ls | 26KA | 50KA | 55KA | |||||
| Change-oner time l-0-ll or ll-0-1(s) | 1.2S | 2.4S | ||||||
| Power supply voltage control | DC24V 48V 110V AC220V | |||||||
| Electrical consumption | Sartup | 400W | 400W | 600W | ||||
| In gear | 90W | 98W | 120W | |||||
| Weight(Kg) | 4poles | 32 | 36 | 40 | 49 | 95 | 98 | 135 |
