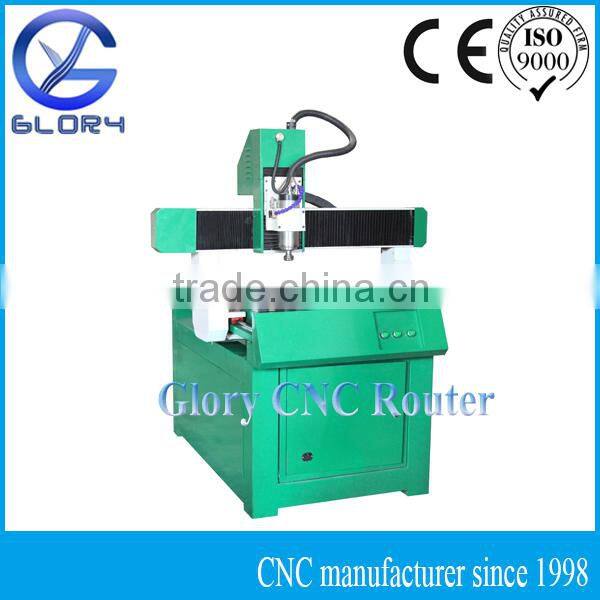

Advertising Mini CNC Router for Engraving Mark Number and Logo

Name: Advertising Mini CNC Router for Engraving Mark Number and Logo
Brand: Glory
Price: USD $3,000 - 4,500 / Set

FOB Price

USD $3,000 - $4,500 / Set

1 Set(Min.Order)

Product Details

Condition:	New	CNC or Not:	CNC	Place of Origin:	Shandong, China
Brand Name:	Glory	Model Number:	GY-G6090BG	Voltage:	220V/380V
Power(W):	varied	Dimension(LWH):	1350mm1120mm1200mm	Weight:	700kg
Certification:	CE, ISO	Warranty:	12 months	After-sales Service Provided:	Engineers available to service machinery overseas

Mini CNC Router
1. Mini cnc router
2. Factory price
3. CE, ISO cerified

Mini CNC Router

Product Features
1.	Water cooled spindle with high rotating speed, can engrave the material with high precision.
2.	Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
3.	The machine adopts gantry movement, suitable for batch processing small work piece.
4.	Well compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/Wentai/AutoCad/PowerMill/UG/Alphacam, etc.
5.	This machine has the function of re-carving after break point or power failure and it can estimate the processing time.
6.	Adopting embedded DSP handle controlling system, easy to operate. Machine can completely work off-line.
7.	Three axes adopt Hiwin linear guide rail with high precision.
8.	Z axis adopts imported Germany or Taiwan made ball screw, so high precision and long life time using are assured.
9.	Manual oil-injection system allows the machine maintenance mush easier.
10.	High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance.
11.	We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs.
12.	Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box.

Technical Parameters
Description	GY-G6090BG	Optional
X Y working area	600*900mm	12001200mm 13002500mm
Z working area	120mm	80mm,200mm
Rotary axis working area	100*900mm	80*800mm,etc
Max idling speed	20m/min
Spindle	1.5kw water cooled	2.2kw, 3kw
Working mode	three stepper motors	Yaskawa servo
Operating system	DSP handle	Weihong/NC Studio
Fixing	By clamp	by suction
Transmission	Taiwan ball screw	German brand
Inverter	Fuling	Delta, Siemens
Driver	Yako	Yaskawa
Spindle rotating speed	0-24000r/min	0-18000r/min
Power supply	220V	380V
Command	G code, HPGL, U00, mmg, plt,etc
Diameter of cutter	3.175-12.7mm
Other options	1.Alignment pop-up pins 2.Added rotary axis 3.Customized sizes 4.Heavy duty machine bed 5.More or less spindles, etc
Note: AII THE PARTS OF MACHINE CAN DO SOME CHANGES TO MEET YOUR REQUIREMENTS. Such as the motor (step motor or servo motor optional), spindle (air cooled or water-cooled optional ),guide rail (linear guide rail or square linear guide optional ) and the table of the machine (Vacuum table, T-shot table, Combination of T-shot &Vacuum table)

Application
Wood processing	Processing of various wood materials, such as solid wood, soft wood, composite wood,etc
Advertisement	Engraving and cutting various labels and number plate.
Art craft	Engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials
Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Processing effect
Engraving, cutting, drilling, milling, carving, enchase, relief, etc.
Samples

FAQ
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance.
2. If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.

Related Machines

Service and Guarantee
1. Technical supports and suggestions before you order a machine according to your work piece. 2. Professional instruction for the operation of the machine. 3. One year warranty, we will provide the consumable parts at cost price after the warranty period. 4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. 5. 24-hour technical support by email or calling.
Part Replacement
Customers have to send the broken parts to us within one week to our factory address: West Mingjia Road, Qihe Economic Development Zone, Shandong Province. We will check and send you the new one within one week. 1. Customer has to bear the cost of returning the broken parts. 2. If the broken parts is not man-made damaged, we will afford the cost of the new parts and its freight cost.

Package&Factory

Contact information

We can chat online if you like. My Skype: jeanh007

Welcome to visit our factory at any time. : )

LinkedIn&Facebook: Jinan Glory Import and Export Trading Co.,Ltd

Jinan Glory Import And Export Trading Co., Ltd.: Contact nameSunny Wang; Phone0086-531-88078968; AddressRoom 312, No. 1 Building, No. 48, Huanshan Road, Lixia Dist.
