Specifications
6090 CNC Router1. High precision
2. Factory price
3. Customized service
4. 16 years experience
Advertising 6090 CNC Router
Key features:
1. Seamless steel lathe bed 6090 cnc router
2. 3 axis adopt ball screw transmission
3. X axis is equipped with dust-proof cover
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Stepper motors
7. DSP handle controller with USB interface
8. Gantry movement 6090 cnc router
SPECIFICATION |
GY-G6090B |
|
Working Area (X Axis) |
600mm |
|
Working Area (Y Axis) |
900mm |
Clearance (Z Axis) |
120mm |
Machine Dimension |
1340*1550mm |
Spindle |
1.5kw water-cooled |
Spindle Speed |
Adjustable 0-24,000 rpm |
Tool Change |
Manual Tool-Change |
|
Drive System (XYZ Axis) |
Taiwan ball Screw |
Linear guide |
Taiwan PMI 20mm |
Drive Motors |
Stepper motors |
Inverter |
Fuling |
Driver |
Yako |
Command |
G code |
Precision |
0.01mm |
Cutter diameter |
φ3.175-φ12.7mm |
Maximum Travel Speed |
10m/min |
Table Top |
Aluminum T-slot protected with PVC |
Controller |
DSP handle |
Power Requirements |
220V/50HZ, 110V optional |
Custom sizes and upgrades for the components are available on request.
Optional parts:
1. Rotary axis 6090 cnc router
2. Vacuum table with absorption function
3. More spindles
4. Air-cooled spindle, etc.
Application:
Advertisement: engraving and cutting various labels, number plate and etc.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Ideal for:
1. Timber 6090 cnc router
2. MDF
3. Plastics
4. Aluminum composite
5. Soft metals
6. Acrylic and much more

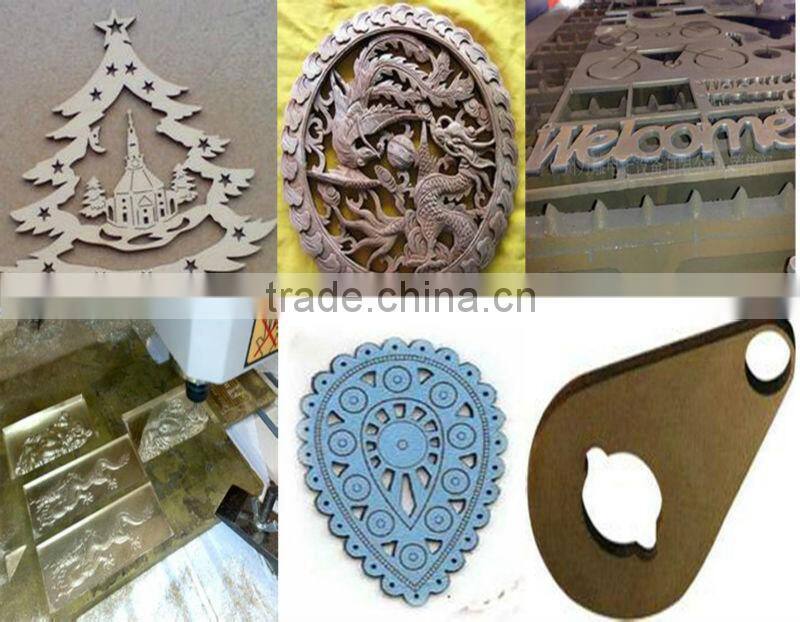

Processing effect:
Engraving, cutting, drilling, milling, enchase, relief, etc.
Service & guarantee:
1. Technical supports and suggestions before you order a machine according to your work piece. 6090 cnc router
2. Professional instruction for the operation of the machine
3. One year warranty, we will provide the consumable parts at cost price after the warranty period.
4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling.
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype.
Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance. 6090 cnc router
2. If the machine has problems, what can you do?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3. What is the MOQ?
Our MOQ is 1 set machine. We will delivery the machine to your request port. 6090 cnc router
4. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
Related machines:

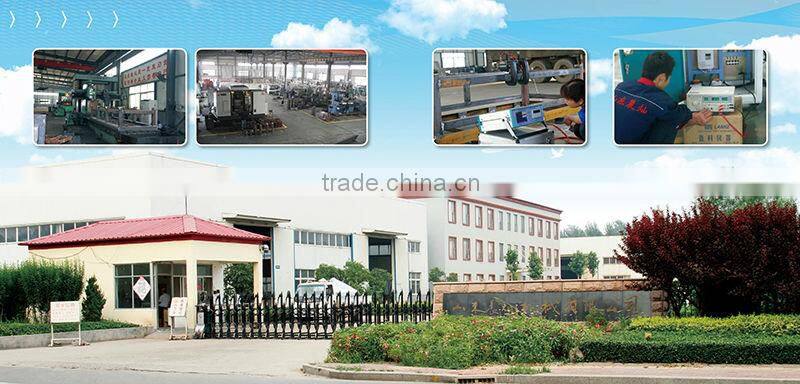

Factory
Welcome to visit our factory and talk business face to face.
