8 head cnc rotary machine for wood furniture engraving
CC-MS2030K8
FEATURES
8 head cnc rotary machine 4 axis cnc engraving machine rotary wood engraving machine
8 head cnc furniture engraving machine rotary table cnc machine rotary wood carving machine

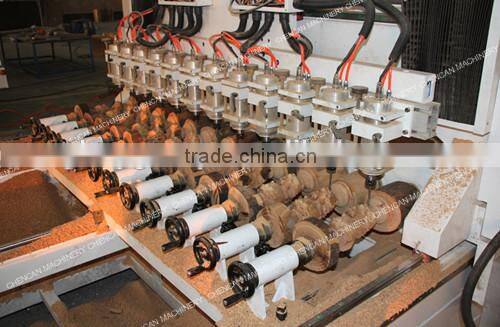

This 4 axis cnc machine has eight spindles,which can work on 8 piece work at the same time .

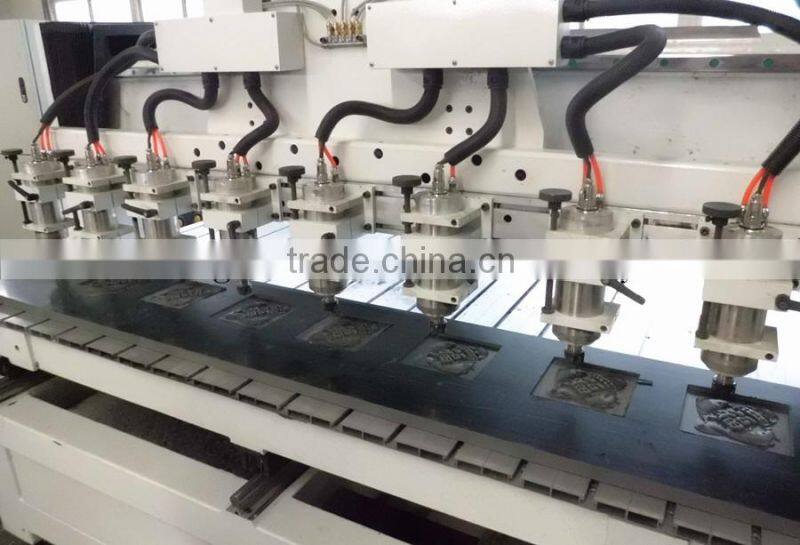

And also it has a plate ,can do the flat engraving work .

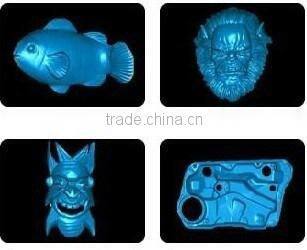

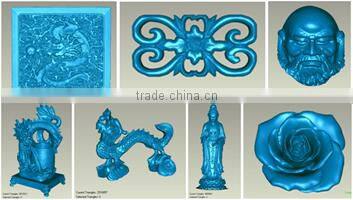

2. With Scanner or designed photo, it can do any 3D Engraving.
3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy
to be deformed.
4.Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
5.Has the function of re-carving after break point and power failure.
6. Adopting advanced NC Studio system , operated and controlled by the computer.
8 head cnc rotary machine 4 axis cnc engraving machine rotary wood engraving machine
8 head cnc furniture engraving machine rotary table cnc machine rotary wood carving machine
technical parameter:
Model |
CC-MS3020K8 |
|
Description |
Parameter |
Optional parameter |
X,Y Working Area |
2000*3000mm |
|
Z Working Area |
300mm |
|
rotary axis max diameter |
220mm*3000mm length |
300mm*1300mm in length |
Flat Table Size |
2140*3000mm |
|
Resolution |
0.03mm |
|
Lathe Structure |
Seamless welded steel structure |
|
X,Y Structure |
Rack and pinion, gear drive, Big Size Taiwan Hiwin square guide rails |
|
Z Structure |
taiwan made ball screw, Big Size Taiwan Hiwin square guide rails |
|
Max. Idling Speed |
30m/min |
|
Spindle |
Water Cooling Spindle 2.2KW |
|
Spindle Speed |
0-24000r/min, variable speed |
|
Working Voltage |
AC380V/50Hz |
220V |
Motor and driver |
Japan Yaskawa Servo |
|
Command |
G code (HPGL, U00, mmg, plt) |
|
Operating System |
Original Nc Studio weihong control system |
|
Diameter of Cutter |
φ3.175-φ12.7 |
|
Dust-collect Function |
Yes |
No |
Work Holding |
Clamps, Chucks |
|
Net Weight |
2200KG |
8 head cnc rotary machine 4 axis cnc engraving machine rotary wood engraving machine
8 head cnc furniture engraving machine rotary table cnc machine rotary wood carving machine
samples
8 head cnc rotary machine 4 axis cnc engraving machine rotary wood engraving machine

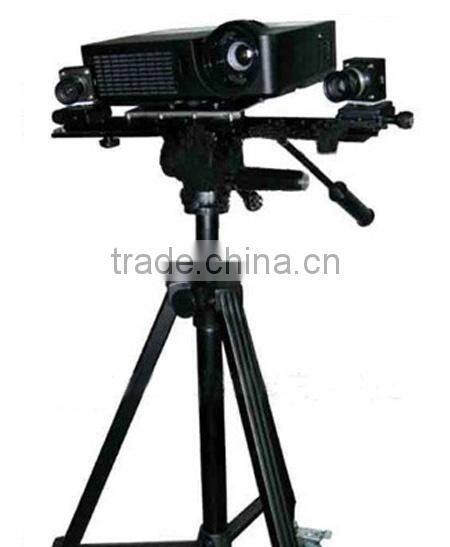

8 head cnc furniture engraving machine rotary table cnc machine rotary wood carving machine 3d scanner
