Help CenterT27,T29 Fiberglass Aluminium Oxide Abrasive Flap Disc Quality Choice
Related Products

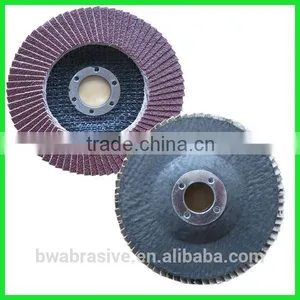

1,Product Name: T27,T29 Fiberglass aluminium oxide abrasive flap disc 2,Product show:
3,Description: Flap Discs are created by overlapping coated abrasive flaps and fasten them to fiberglass backing plates. This design provides a cooler running, longer lasting disc. And the flaps can be made of aluminum oxide, aluminum zirconia or ceramic material etc., These discs are specifically recommended for high stock removal on stainless steel, carbon steel, aluminum, and most alloys. It guarantees high flexibility, constant high grinding performance and low vibration running.
4,Characteristics:
1) Excellent polishing;
2) Self-sharpness and wear-resistant;
3) High tensile and high bend strength;
4) High elasticity.
5 ,Specification:
1> abrasive :Aluminum oxide,High temperature fused aluminium oxide, zirconia, silicon carbide.
2> Backing :Fiberglass and plastic
A. Fiberglass backing
a. Lighter,quieter operation
b. Will not splinter or smear on the workpiece
c. Backing will wear uniformly with abrasive cloth
B. Plastic backing
a. No-scratching, high strength backing
b. Resistant to temperature extremes,common chemicals and solvents.
3> Size: 100 x 16mm, 115 x 22mm , 125X22mm, 150 x 22mm, 180 x 22mm,etc.
Specification |
Size(D×H) |
Grit |
Max.RPM |
Page |
Type |
|
inch |
mm |
(r/min) |
||||
FL100 |
4"×5/8" |
100×16 |
40~400# |
15300 |
72 |
T27/T29 |
FL115 |
4.5"×7/8" |
115×22 |
40~400# |
13300 |
72 |
T27/T29 |
FL125 |
5"×7/8" |
125×22 |
40~400# |
12200 |
72 |
T27/T29 |
FL150 |
6"×7/8" |
150×22 |
40~400# |
10200 |
100 |
T27/T29 |
FL180 |
7"×7/8" |
180×22 |
40~400# |
8600 |
144 |
T27/T29 |
4> Cloth: X- weight;
5> Shape: T27,T29
T29,Depressed shape: grinding contour and edge, grinding angle 15-25°
T27,Flat shape: grinding flat surface, grinding angle 0-15°
6,Application:
1> It is widely used in surface treatment of metal and weld joint and derusting;
2> The kind of disc is installed on a portable angle grinder to meet all kinds of requirements in industrial processing;
3> It is widely used in surface treatment of cast metal, stainless steel and wood,etc, often suitable for surface and corner grinding of non-ferrous metal;
4> Usage according the grain:
grain |
application |
Aluminum oxide |
suit for grinding and polishing, carbon steel metal, wood, metal, iron, welding rods etc. |
Zirconia oxide |
suit for grinding stainless steel professionally, aluminium and construction steel, mild steel etc. |
Silicon carbide |
suit for polishing wood, copper, stone, marble, building materials, hard materials, glass etc. |
7,Package:
10PCS in one Plastic shrinkage film, 200PCS in one carton. Or special package by customer’s requirement.
size |
grit |
QTY/carton |
inner packing |
carton size(cm) |
KG/carton |
100*16 |
40#-150# |
200/carton |
10pcs/shrink |
52*22*22 |
15 |
115*22 |
40#-150# |
200/carton |
10pcs/shrink |
59.5*24.5*24.5 |
18 |
125*22 |
40#-150# |
200/carton |
10pcs/shrink |
64.5*26*22 |
20 |
150*22 |
40#-150# |
200/carton |
10pcs/shrink |
33*33*43 |
16 |
180*22 |
40#-150# |
100/carton |
5pcs/shrink |
37*37*25 |
19 |
8,Guide to storage:
The product should be stored in the dry and ventilating storehouse, and avoid moisture and fire, and should be kept in the package before use. The date of storage is 5 years.
9,Related Product :
10,Production lines shows:
11,Our customer:
12,Company profile:
Yangzhong Bowei Abrasives Co., Ltd. is a manufacturer of coated abrasive final products. Our main products cover fiber discs, velcro discs, flap disc,abrasive cloths, abrasive paper, abrasive belts, self-adhesive products, abrasive paper, abrasive flap discs, industry non-woven products, etc. suitable for surface treatment work of moving rust and scar, grinding, polishing, fining and cleaning, etc.
Offer OEM Service
13,Contact us:
Warmly welcome to contact with us.
Website:
Thanks for your support and attention.
