Hot Sale Metric Taper Roller Bearing 33217 33218 33219

FOB Price

US$ 2 - 1,000 / Piece

1 Piece(Min. Order)

Port ningbo/shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	FYOSY OR OEM	Precision Rating	P0,P6,P5
Seals Type	open	Number of Row	Single Row
Place of Origin	Zhejiang, China

Product Description

alibaba hot sale metric taper roller bearing 33217 33218 33219

Single row metric taper roller bearing, inch taper roller bearing

Some type of our metric taper roller bearing:

303..series 30302 30303 30304 30305 30306 30307 30308 30309 30310 etc

302..series 30202 30203 30204 30205 30206 30207 30208 30209 30210 etc

323..series 32303 32304 32305 32306 32307 32308 32309 32310 32311 etc

320..series 32005X 32006X 32007X 32008X 32009X 32010X 32011X 32012X 32013X etc

330..series 33005 33006 33007 33008 33009 33010 33011 33012 33013 etc

322..series 32203 32204 32205 32206 32207 32208 32209 32210 32211 etc

331..series 33109 33110 33111 33112 33113 33114 33115 33116 33117 etc

332..series 33205 33206 33207 33208 33209 33210 33211 33212 33213 etc

329..series 32907 32908 32909 32910 32911 32912 32913 32914 32915 etc

Product Description

Product name:	alibaba hot sale metric taper roller bearing 33217 33218 33219
Brand:	FYOSY or according to the customer’s requirement
Row:	Single row
Material:	Chrome steel, Carbon steel, Stainless Steel
Model:	33217 33218 33219
Size	metric size and inch size
Quality standard:	ISO9001:2008
Services:	OEM & ODM
Delivery day:	Normally ready the goods and stock within 5-30days according to the quantity
Payment terms:	30%TT in advance,70%TT before shipment
Package:	Bag, Box, Carton, Pallet
Application:	Motor, Machinery, Electric Tools, Sports Apparatus, medical equipment, chemicals, aviation, perfume bottles, sprayers, valves, nail polish, body jewelry, mobile phone panels, toys, etc.

Taper roller bearings are designed to take combined heavy radial loads and heavy thrust loads in one direction while operating at moderate speeds. The bearings shown are single row with a cone and cup (inner and outer rings) and a pressed steel retainer. This kind of bearings can be applied to many fields such as auto rear wheel, transmission, differential, small gear axle, machine tool spindle, building machinery, small-size agricultural machinery, railway vehicle and gear deceleration device, small deceleration device for rolling mill journal, and etc.

taper roller bearing feature a simplified part number for a complete bearing. Inch tapers require a part number for the cup and one for the cone. The difference between the metric and inch tapers is only in the dimensions of measure for the bearings.

We are manufacturing and marketing all kinds of bearings, tapered roller bearing, deep groove ball bearing, non-standard bearing, track roller bearing, taper roller bearing, cylindrical roller bearing, needle roller bearing, thrust ball bearing, angular contact ball bearing etc. we also can produce bearings according to customers' drawings or samples. OEM is welcome.

Our Advantage:

1).Factory

2).Small order accepted

3).OEM service, Customers' drawing or samples accepted

4) .Good service, good quality, low price, prompt delivery

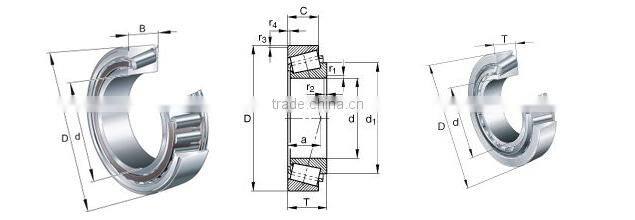

Number	Unit	Cup OUTSIDE DIA.	Cone BORE	Cone WIDTH	Cup WIDTH	Bearing WIDTH	Max.Shaft Fillet Radii	Max.Hsng. Fillet Radii
Number	Unit	D	d	B	C	T	R	r

33205	mm	52.000	25.000	22.000	18.000	22.000	2.5	1.9
33205	in	2.047	0.984	0.866	0.709	0.866	0.098	0.075
332/28	mm	58.000	28.000	24.000	19.000	24.000	2.5	1.9
332/28	in	2.283	1.102	0.945	0.748	0.945	0.098	0.075
33206	mm	62.000	30.000	25.000	19.500	25.000	2.5	1.9
33206	in	2.441	1.181	0.984	0.768	0.984	0.098	0.075
332/32	mm	65.000	32.000	26.000	20.500	26.000	2.5	1.9
332/32	in	2.559	1.260	1.024	0.807	1.024	0.098	0.075
33207	mm	72.000	35.000	28.000	22.000	28.000	3.0	2.3
33207	in	2.835	1.378	1.102	0.866	1.102	0.118	0.091
33208	mm	80.000	40.000	32.000	25.000	32.000	3.0	2.3
33208	in	3.150	1.575	1.260	0.984	1.260	0.118	0.091
33209	mm	85.000	45.000	32.000	25.000	32.000	3.0	2.3
33209	in	3.346	1.772	1.260	0.984	1.260	0.118	0.091
33210	mm	90.000	50.000	32.000	24.500	32.000	3.0	2.3
33210	in	3.543	1.969	1.260	0.965	1.260	0.118	0.091
33211	mm	100.000	55.000	35.000	27.000	35.000	4.0	2.3
33211	in	3.937	2.165	1.378	1.063	1.378	0.157	0.091
33212	mm	110.000	60.000	38.000	29.000	38.000	4.0	2.3
33212	in	4.331	2.362	1.496	1.142	1.496	0.157	0.091
33213	mm	120.000	65.000	32.000	41.000	41.000	4.0	2.3
33213	in	4.724	2.559	1.260	1.614	1.614	0.157	0.091
33214	mm	125.000	70.000	41.000	32.000	41.000	4.0	2.8
33214	in	4.921	2.756	1.614	1.260	1.614	0.157	0.110
33215	mm	130.000	75.000	41.000	31.000	41.000	4.0	2.8
33215	in	5.118	2.953	1.614	1.220	1.614	0.157	0.110
33216	mm	140.000	80.000	46.000	35.000	46.000	5.0	3.5
33216	in	5.512	3.150	1.811	1.378	1.811	0.197	0.138
33217	mm	150.000	85.000	49.000	37.000	49.000	5.0	3.5
33217	in	5.906	3.346	1.929	1.457	1.929	0.197	0.138
33218	mm	160.000	90.000	55.000	42.000	55.000	5.0	3.5
33218	in	6.299	3.543	2.165	1.654	2.165	0.197	0.138
33219	mm	170.000	95.000	58.000	44.000	58.000	5.5	4.0
33219	in	6.693	3.740	2.283	1.732	2.283	0.217	0.157
33220	mm	180.000	100.000	63.000	48.000	63.000	5.5	4.0
33220	in	7.087	3.937	2.480	1.890	2.480	0.217	0.157
33221	mm	190.000	105.000	68.000	52.000	68.000	5.5	4.0
33221	in	7.480	4.134	2.677	2.047	2.677	0.217	0.157

038KC68	mm	68.000	38.500	16.500	15.000	18.250	4.000	2.300
038KC68	in	2.677	1.516	0.650	0.591	0.719	0.157	0.091
513-716A	mm	63.000	38.000	17.000	13.500	17.000	4.000	2.300
513-716A	in	2.480	1.496	0.669	0.531	0.669	0.157	0.091
DTP2074	mm	76.000	42.000	27.500	19.800	23.800	3.200	1.400
DTP2074	in	2.992	1.654	1.083	0.780	0.937	0.126	0.055
HTFR25-33g	mm	52.000	25.000	15.000	13.000	16.250	2.500	1.900
HTFR25-33g	in	2.047	0.984	0.591	0.512	0.640	0.098	0.075
HTFR30-50g	mm	68.000	30.000	25.000	18.000	25.000	2.400	2.100
HTFR30-50g	in	2.677	1.181	0.984	0.709	0.984	0.094	0.083
JL69349(A)/10	mm	63.000	38.000	17.000	13.500	17.000	2.200	1.900
JL69349(A)/10	in	2.480	1.496	0.669	0.531	0.669	0.087	0.075
JL819349/10	mm	135.000	95.000	20.000	14.000	20.000	6.300	3.100
JL819349/10	in	5.315	3.740	0.787	0.551	0.787	0.248	0.122
JLM104948/10	mm	82.000	50.000	21.500	17.000	21.500	3.900	1.100
JLM104948/10	in	3.228	1.969	0.846	0.669	0.846	0.154	0.043
JLM506849/10-PN	mm	90.000	55.000	23.000	18.500	23.000	2.800	1.100
JLM506849/10-PN	in	3.543	2.165	0.906	0.728	0.906	0.110	0.043
JLM710949C/10-PN	mm	105.000	65.000	23.000	18.500	24.000	4.300	1.600
JLM710949C/10-PN	in	4.134	2.559	0.906	0.728	0.945	0.169	0.063
JLM714149A/10-PN	mm	115.000	75.000	25.000	19.000	25.000	6.400	3.100
JLM714149A/10-PN	in	4.528	2.953	0.984	0.748	0.984	0.252	0.122
JM205149/10	mm	90.000	50.000	28.000	23.000	28.000	3.900	3.100
JM205149/10	in	3.543	1.969	1.102	0.906	1.102	0.154	0.122
JM207049(A)/10	mm	95.000	55.000	29.000	23.500	29.000	2.800	3.100
JM207049(A)/10	in	3.740	2.165	1.142	0.925	1.142	0.110	0.122
JM515649/10	mm	130.000	80.000	34.000	28.500	35.000	4.300	3.100
JM515649/10	in	5.118	3.150	1.339	1.122	1.378	0.169	0.122
JM716649/10	mm	130.000	85.000	29.000	24.000	30.000	4.300	3.100
JM716649/10	in	5.118	3.346	1.142	0.945	1.181	0.169	0.122
JP10049(A)/10	mm	145.000	100.000	22.500	17.500	24.000	6.400	3.900
JP10049(A)/10	in	5.709	3.937	0.886	0.689	0.945	0.252	0.154
JP13049(A)/10	mm	185.000	130.000	27.000	21.000	29.000	7.900	4.000
JP13049(A)/10	in	7.283	5.118	1.063	0.827	1.142	0.311	0.157
JR3062-DBL	mm	62.000	30.000	25.000	39.000	39.000	44.500	2.2
JR3062-DBL	in	2.441	1.181	0.984	1.535	1.535	1.752	0.087
JW6049/10	mm	125.000	60.000	33.500	26.000	37.000	4.400	3.700
JW6049/10	in	4.921	2.362	1.319	1.024	1.457	0.173	0.146
PX50935	mm	63.000	38.000	17.000	13.500	17.000	4.100	2.200
PX50935	in	2.480	1.496	0.669	0.531	0.669	0.161	0.087
R38-10	mm	75.000	38.000	24.500	19.500	24.500	2.400	2.100
R38-10	in	2.953	1.496	0.965	0.768	0.965	0.094	0.083
ST2749	mm	49.000	32.800	15.000	11.500	15.000	3.900	1.300
ST2749	in	1.929	1.291	0.591	0.453	0.591	0.154	0.051
ST5085	mm	85.000	50.000	23.000	20.750	25.000	2.900	2.600
ST5085	in	3.346	1.969	0.906	0.817	0.984	0.114	0.102
ST5177	mm	77.000	51.000	15.500	14.000	17.500	2.800	1.600
ST5177	in	3.031	2.008	0.610	0.551	0.689	0.110	0.063
TR080702J	mm	72.000	38.500	16.500	15.000	18.250	2.100	2.900
TR080702J	in	2.835	1.516	0.650	0.591	0.719	0.083	0.114
TR276217J	mm	62.000	27.000	16.000	14.000	17.250	2.500	1.800
TR276217J	in	2.441	1.063	0.630	0.551	0.679	0.098	0.071
TR286819J	mm	68.000	28.000	18.000	16.000	19.750	2.500	1.800
TR286819J	in	2.677	1.102	0.709	0.630	0.778	0.098	0.071
TR3062J	mm	62.000	30.000	16.966	13.600	16.700	1.900	2.400
TR3062J	in	2.441	1.181	0.668	0.535	0.657	0.075	0.094
TR406819J	mm	68.000	40.000	19.000	14.500	19.000	3.500	2.300
TR406819J	in	2.677	1.575	0.748	0.571	0.748	0.138	0.091
TR407219J	mm	72.000	40.500	19.000	14.500	19.000	3.500	2.300
TR407219J	in	2.835	1.594	0.748	0.571	0.748	0.138	0.091
ST3062	mm	62.000	30.000	16.966	13.600	16.700	1.900	2.300
ST3062	in	2.441	1.181	0.668	0.535	0.657	0.075	0.091
