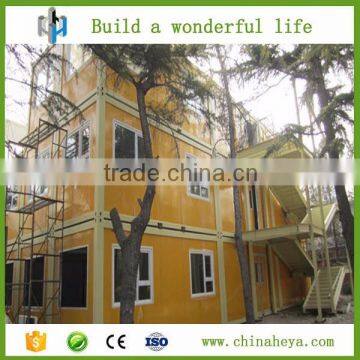

HEYA INT'L hot selling prefabricated container child hospital for sale

Type

External

Internal

Weight (kg)

Length

Width

Height (package)

Height (assembled)

Length

Width

Height

20’

6055

2435

648/864

2591/2790

5860

2240

2500

from 1850

Steel frame

- made from cold rolled, welded steel profiles, 4 mm thick

- 4 corner casts, welded

- 2 fork lift pockets (except 30’) - distance 1200mm

(internal clearance of fork lift pockets: 240×80 mm)

- steel cross members, thickness=2mm

Insulation

- 100 mm thick Rock Wool

Subfloor

- 0.5mm thick, galvanized steel sheet

Floor

- 18mm plywood board

- 1.8mm PVC floor

- flammability class B1 - hardly combustible

- smoke density class Q1 - low smoke emission

- wear resistance factor: T level

Steel frame

- made from cold rolled, welded steel profiles, 3mm thick

- 4 corner casts, welded

- steel cross members, thickness=2mm

Roof cover

- 0.5mm thick, galvanized steel sheet

- 360 degree seaming at joint of roof panels

Insulation

- 100 mm thick Rock Wool

Ceiling

- 10 mm chipboard (V 20), laminated on both sides, white

- the chipboard complies with the emission value E1

CEE connector

- sunken in frame on short end side

Rockwool

- density:120kg/m3

- flammability class A- non combustible

- smoke density class Q1 - low smoke emission

- certificated: CE & GL

EPS

- density:10kg/m3

- flammability class B1- non combustible

- smoke density class Q1 - low smoke emission

- certificated: CE & GL

mixed packaging. roof frame and bottom frame will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom,  corrugated board on the surface, and XPS board in the interspace. And it will be shipped in 40’ container

mixed packaging. roof frame and bottom frame will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom,  corrugated board on the surface, and XPS board in the interspace. And it will be shipped in 40’ container

40 feet ocean freight container:

A: take out the small packages;

B: use folk lift to take out the wall panel packages;

C: grapple the corner on bottom side of the container house and drage the package out, remain about 50cm in the shipping container

D: use folk lift to lift the container package in the middle and move it out of the shipping container;

E: put the package on ground sidewise, use wooden pad if it’s flatwise
